Alpha DPX 1350W Downconverter User Manual
Quick guide for the Alpha DPX 1350W Downconverter. Includes technical specifications, environmental ratings, input/output requirements, and safety compliance information.
Table of contents
Quick guide from the manual

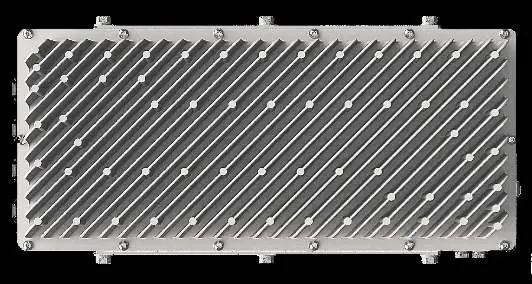

The Alpha DPX 1350W Downconverter is a power distribution unit designed for telecommunications infrastructure, such as small cells, remote radio heads (RRH), and IoT devices. It converts incoming ±190 Vdc power to 48 Vdc. The unit is designed for harsh outdoor environments with an IP68-rated enclosure and supports remote monitoring via the Cordex CXC HP system controller.
Product Overview
The device provides four isolated outputs from a single input cable. It is part of the distributed power transport product family, enabling operators to deploy networks without needing AC utility power at every small cell location.
Technical Specifications
- Input Voltage: ±145 Vdc to ±200 Vdc
- Output Voltage: -54 Vdc
- Output Power: 1350W total (450W per individual port)
- Output Current: 9.4 A
- Connections: 1 input, 4 isolated outputs
- Dimensions: 203.2 x 457.2 x 109 mm (8 x 18 x 4.3 in)
- Weight: 9 kg (19.8 lb)
Features and Protection
The unit includes advanced monitoring and control capabilities for each of the four output channels, including power cycling, load shedding, and voltage/current readings. Protection features include:
- Safe start function
- Current limit and short circuit protection
- Reverse polarity protection
- Output high voltage shutdown
- Power limiting
- Over-temperature protection
Environmental Requirements
The DPX 1350W is built for deployment in harsh outdoor environments:
- Operating Temperature: -40 to 65°C (-40 to 149°F); full rated output up to 55°C (131°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Relative Humidity: 5 to 95%
- Elevation: Up to 3,000 m (9,842 ft)
- Enclosure Rating: IP68, Type 6P
Compliance
The device is designed to meet various safety and EMC standards, including ATIS, IEC/EN/CSA/UL 62368-1, CE, UKCA, FCC Part 15 Class A, and ICES-003 Class A.
Manufacturer information
Alpha Home Appliances
Practical help
Common problems
Input voltage out of range
Ensure the input voltage is within the specified range of ±145 Vdc to ±200 Vdc.
Over-temperature shutdown
Ensure the ambient temperature does not exceed 65°C. Note that full rated output is only guaranteed up to 55°C.
Output overload
Verify that the load on each individual port does not exceed 450W and the total load does not exceed 1350W.
Before use
- Verify input voltage is between ±145 Vdc and ±200 Vdc.
- Ensure cabling is 12 AWG (4 mm²) or 14 AWG (2.5 mm²) hybrid or copper only.
- Confirm the installation site is within the operating temperature range of -40°C to 65°C.
- Ensure the mounting surface supports the IP68 rated enclosure (pole, wall, underground, or aerial).
- Check that the Cordex CXC HP system controller is available for remote monitoring.
Specs in practice
- Input Voltage
- ±145 Vdc to ±200 Vdc required for operation.
- Output Power
- 1350W total capacity, with a maximum of 450W per individual port.
- Enclosure Rating
- IP68/Type 6P, indicating high resistance to dust and water ingress.
Model compatibility
- Compatible with Cordex CXC HP system controller for remote monitoring.
- Designed for telecommunications infrastructure (small cells, RRH, IoT).
