User Manual for Amazon Basics Furniture Style Dog Crate

Quick guide from the manual

This manual provides instructions for the Amazon Basics Furniture Style Dog Crate, available in 41-inch (104.1cm) and 48-inch (121.9cm) sizes. The crate is designed for indoor use and includes a side door with a bowl holder.

Safety Instructions

• Risk of suffocation: Keep packaging materials away from children and pets.
• Not a toy: Do not allow children to play in or with the crate.
• Size: Consult a veterinarian to ensure the crate size is appropriate for your dog.
• Usage: For indoor use only. Do not leave your pet in the crate for an extended period.
• Maintenance: Do not use if parts are damaged or loose. Check regularly for wear and tear.
• Storage: Do not place or store anything on top of the crate.

Package Contents

Ensure all parts are present before assembly:

• Panels: Back panel, Left panel, Right panel, Door panel, Top panel (A), Bottom panel (C).
• Tubes: Top support tubes (B) x2, Bottom support tubes (D) x3.
• Accessories: Bowl holder, Bowls x2.
• Hardware: Hex wrench, Long screws (medium/large), Adjustable foot pads, Handle, Handle screws, Self-tapping screws, Short screws, Long self-tapping screws.

Assembling the Dog Crate

1. Base Assembly: Attach the left and right panels to the back panel using four long screws. Screw four adjustable foot pads into the bottom of the panels.

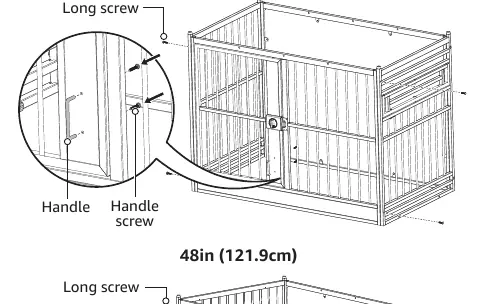

2. Door Attachment: Attach the door panel to the assembly using four long screws (medium crate) or six long screws (large crate). Attach the handle using two handle screws.
3. Bottom Support: Attach the three bottom support tubes (D) to the bottom panel (C) using 12 self-tapping screws.

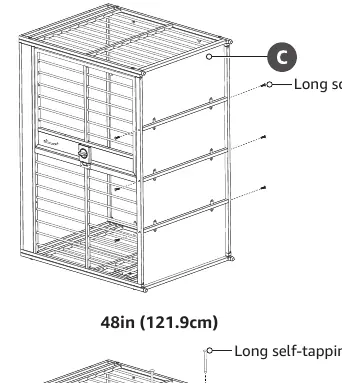

4. Bottom Panel: Attach the bottom panel (C) to the assembly using six long screws. For the large crate, insert four long self-tapping screws into the side of the bottom panel (C).
5. Top Support: Attach the two top support tubes (B) to the top panel (A) using four long screws.

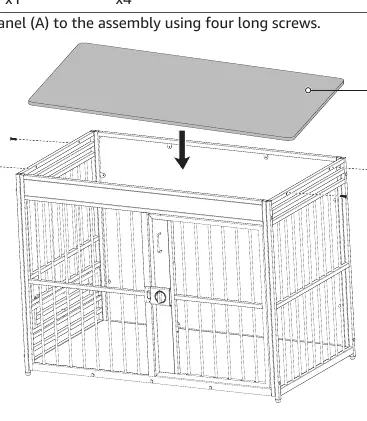

6. Top Panel: Attach the top panel (A) to the assembly using four long screws.

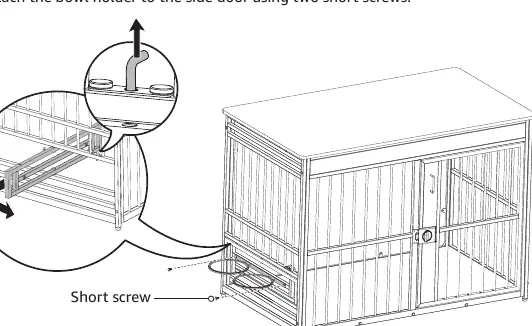

7. Side Door: Pull up on the latch, rotate the side door so screw holes face out, and attach the bowl holder using two short screws.

Using the Dog Crate

Inserting the Bowls

• Add food and water to the bowls and place them on the holders.
• Pull up on the latch, rotate the side door so the bowls are inside the crate, and lower the latch to secure.

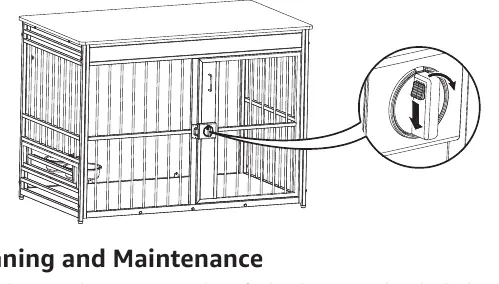

Locking the Door

• Unlock or lock the door by sliding the knob button down and twisting.
• The door is unlocked when the knob is vertical and locked when horizontal.
• Pull the handle to open the door.

Cleaning and Maintenance

• Wipe with a soft, slightly damp cloth and mild detergent.
• Clean the bottom of the crate regularly.
• Remove bowls and clean in warm, soapy water or a dishwasher.
• Do not use corrosive detergents, wire brushes, abrasive scourers, or sharp utensils.
• Regularly check for wear and tear and tighten screws as necessary.

Feedback and Help

If you need help with your product, log in to your account and navigate to the customer service or contact us page.
