The amaran 100d S is a 100W daylight-balanced LED light. Before using the unit, ensure you remove the protective cover from the light source. Always operate the light in a dry environment and ensure proper ventilation. The light can be controlled manually via the onboard interface or remotely using the Sidus Link app.
Components List
- amaran 100d S light fixture
- Hyper-Reflector
- Power Adapter
- Power Cable
- Cable Tie
Installations
Detaching/Attaching the Protection Cover
Push the handle of the lever in the direction of the arrow shown on the fixture, and rotate the cover to pull it out. Reverse the rotation to attach the cover. Warning: Always remove the protection cover prior to turning on the light and re-install it when packing away.
Attaching/Detaching the Reflector
Push the lever handle in the direction of the arrow, and rotate the reflector into the mount. Rotate in the opposite direction to detach.

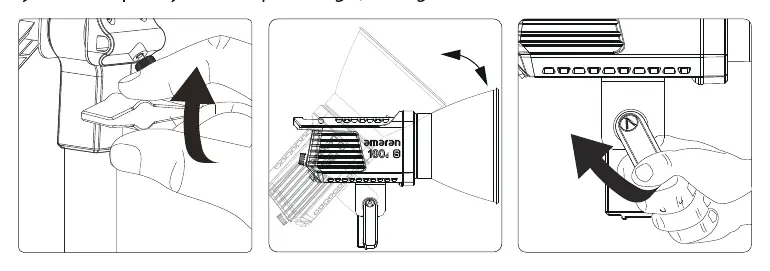

Setting up the light
Adjust the lamp body to the desired height, rotate the tie-down to fix the lamp body on the tripod, adjust the angle, and tighten the lock handle.

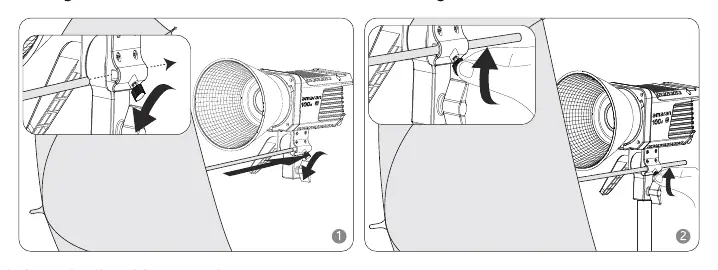

Soft light umbrella installation
Insert the soft light umbrella handle into the designated hole on the fixture, then lock the locking knob.
Power Supply
The light is powered by AC. Connect the power adapter to the DC-in connector on the light. Run the wire rope through the adapter clasp and hang it on the tripod/bracket for safety. Press the button on the DC interface to remove the power cord; do not pull it out forcibly.
Operations
Power ON/OFF
Press the power button to turn the light on and off.
Manual Control
Rotate the INT adjusting knob to adjust the brightness (0-100%). Clicking the INT knob allows you to quickly cycle through brightness levels: 20% -> 40% -> 60% -> 80% -> 100% -> 20%.
Bluetooth Reset
Long press the Bluetooth reset button to reset the connection. The LCD will display "BT Reset" and the progress percentage. "Success" will appear upon completion.
Sidus Link App
Download the Sidus Link app from the iOS App Store or Google Play Store to enhance functionality, control lighting effects (Paparazzi, Fireworks, Faulty Bulb, Lightning, TV, Pulsing, Strobe, Explosion), and perform firmware updates.
Manufacturer information
Aputure
Practical help
Common problems
Light does not turn on
Check if the power cable is securely connected to the power adapter and the AC outlet.
Bluetooth connection failed
Perform a Bluetooth reset by long-pressing the Bluetooth reset button on the fixture.
Reflector or cover stuck
Ensure the lever handle is pushed in the direction of the arrow before attempting to rotate the accessory.
Before use
- Remove the protective cover from the LED light source.
- Ensure the light is securely mounted on a tripod.
- Verify the power adapter is connected correctly.
- Ensure the ventilation area is not blocked.
- Keep the light away from flammable objects.
Specs in practice
- Output Power
- 100W.
Images and diagrams
- Bowens Mount Release Latch: Used to secure or release light modifiers.
- INT adjusting knob: Used for brightness control and menu navigation.
- DC-in connector: Port for connecting the power adapter.
Model compatibility
- Compatible with Sidus Link App for remote control and firmware updates.
- Supports standard Bowens mount accessories.
