Artika Finley 1-Light LED Pendant
Quick installation and setup guide for the Artika Finley 1-Light LED Pendant. Includes wiring instructions, height adjustment, and color temperature settings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the installation and setup of the Artika Finley 1-Light LED Pendant. Before beginning, ensure the main electrical supply is turned off at the circuit breaker. This product is intended for indoor residential use only. If you are using a dimmer switch, it must be LED compatible. We recommend installation by a certified electrician.

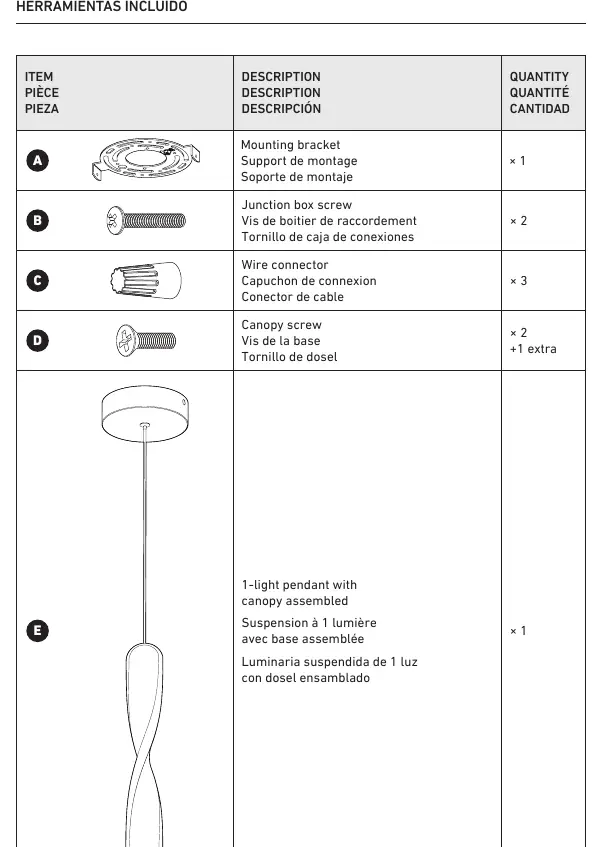

Included hardware
- Mounting bracket
- Junction box screws (x2)
- Wire connectors (x3)
- Canopy screws (x2 + 1 extra)
- 1-light pendant with canopy assembled
Height adjustment
To adjust the height of the pendant, gently pull the cable through the canopy assembly to your desired length.

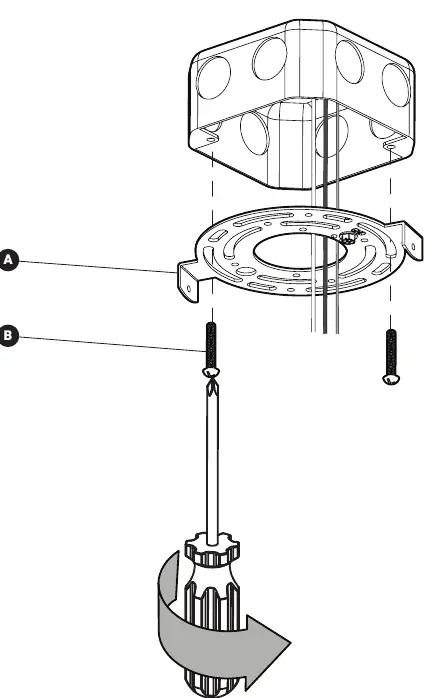

Mounting bracket installation
Secure the mounting bracket to the junction box using the provided junction box screws. Ensure the bracket is firmly attached before proceeding to the wiring stage.

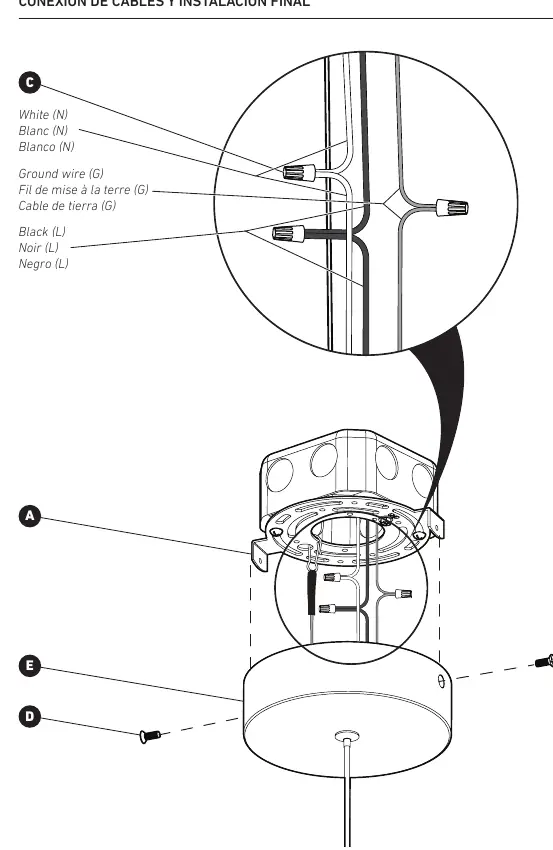

Wires connection and final installation
Follow these steps to connect the wires:
- Connect the White (Neutral) wire from the fixture to the White (Neutral) wire from the junction box using a wire connector.
- Connect the Black (Live) wire from the fixture to the Black (Live) wire from the junction box using a wire connector.
- Connect the Ground wire from the fixture to the Ground wire from the junction box using a wire connector.
- Once connected, secure the canopy to the mounting bracket using the canopy screws.
Selectable white technology
This fixture features selectable white technology. You can adjust the color temperature of the light (ranging from 2700K to 5000K) using the switch located on the fixture canopy.
Safety and warranty
This product comes with a five-year limited warranty for manufacturing defects, valid for residential use only. The warranty does not cover improper installation, misuse, or damage caused by cleaning agents. For support, contact Artika For Living Inc. at 1-866-661-9606 or [email protected].
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Ensure the main circuit breaker is turned on and all wire connections are secure.
Flickering light
Verify that the dimmer switch being used is compatible with LED lighting.
Before use
- Turn off the main electrical supply at the circuit breaker.
- Ensure you have a screwdriver.
- Verify the junction box is properly installed.
- Check that the dimmer switch (if applicable) is LED compatible.
Specs in practice
- Selectable White Technology
- Allows the user to select the color temperature of the light between 2700K and 5000K.
- Residential Use Only
- The product is not rated for commercial or outdoor applications.
Images and diagrams
- Wiring: Connect White to White (Neutral), Black to Black (Live), and Ground to Ground.
- Height Adjustment: Pull the cable gently to adjust the pendant length.
Model compatibility
- Requires an LED-compatible dimmer switch if dimming is desired.
- For indoor residential use only.
