Artika Dryad 10 LED Ceiling Light 10FM-DR5C-HD2WD Installation Guide
Comprehensive installation and setup guide for the Artika Dryad 10 LED Ceiling Light (10FM-DR5C-HD2WD). Includes step-by-step wiring instructions, mounting procedures, and details on using the tunable white technology.
Table of contents
Manual images
Click an image to enlargeImportant Information
The Artika Dryad 10 LED Ceiling Light is designed for residential, indoor use only. Before beginning installation, ensure you have read and understood all instructions. We strongly recommend that this product be installed by a certified electrician, as required by local building codes in many jurisdictions. Failure to follow these instructions may void the warranty and cause product malfunction.
Safety Warnings
- Electrical Shock Hazard: Always turn off the power at the main circuit breaker panel before starting any installation or maintenance work.
- Dimmer Compatibility: If you intend to use a dimmer switch, it must be specifically compatible with LED lighting.
- Environment: This unit is for indoor use only. Do not install outdoors.

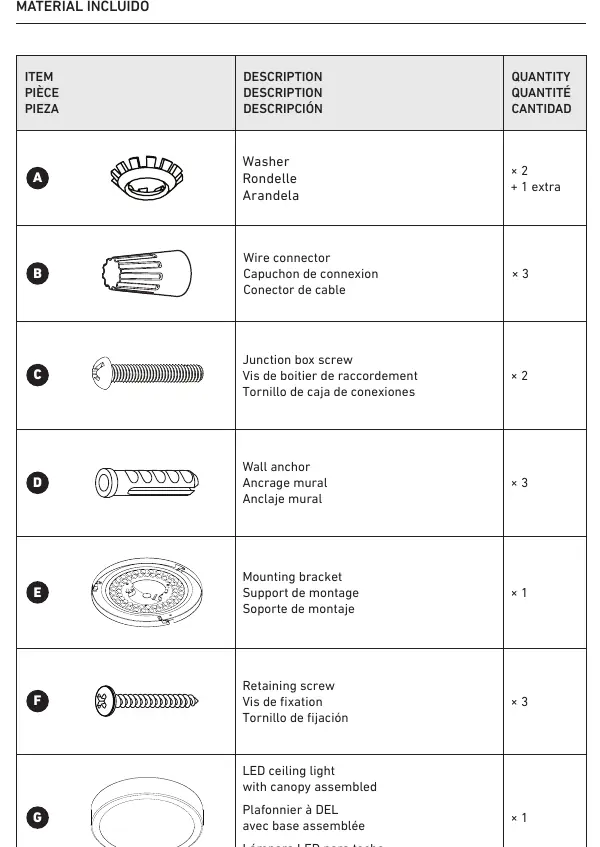

Included Hardware
Ensure all the following items are present before starting:
- Washer (x2 + 1 extra)
- Wire connector (x3)
- Junction box screw (x2)
- Wall anchor (x3)
- Mounting bracket (x1)
- Retaining screw (x3)
- LED ceiling light with canopy assembled (x1)
Installation
Tools Required: Screwdriver, drill, 1/4-in. (6.5 mm) drill bit, and a pencil.
Mounting Bracket Installation
- Position the mounting bracket on the ceiling and mark the screw locations with a pencil.
- Drill holes at the marked locations using the 1/4-in. drill bit.
- Secure the mounting bracket to the junction box using the provided junction box screws.
Connecting the Wires
- Ensure the power is off at the circuit breaker.
- Connect the wires using the provided wire connectors:
- Connect the Black (L) wire from the ceiling to the Black (L) wire from the light.
- Connect the White (N) wire from the ceiling to the White (N) wire from the light.
- Connect the Ground (GND) wire from the ceiling to the Ground (GND) wire from the light.
Final Installation
- Align the light fixture with the mounting bracket.
- Secure the fixture using the retaining screws.
Tunable White Technology
This light fixture features tunable white technology, allowing you to adjust the color temperature. You can select your preferred color temperature ranging from 2700K (warm) to 5000K (cool) using the adjustment switch located on the fixture.
Warranty and Support
Artika For Living Inc. offers a three-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. For customer service, contact Artika at 1-866-661-9606 or [email protected]. Customer service is available Monday to Friday, 9 am to 5 pm EST.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Verify that the circuit breaker is turned on and that all wire connections are secure and properly insulated with the provided wire connectors.
Flickering light
Ensure that the dimmer switch being used is compatible with LED lights. Non-compatible dimmers can cause flickering or damage to the LED driver.
Before use
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Verify you have all required tools: screwdriver, drill, 1/4-in. drill bit, and pencil.
- Check that all hardware (A-G) listed in the manual is included in the box.
- Ensure the installation location is indoors and suitable for a ceiling light.
- Confirm that your dimmer switch (if applicable) is LED compatible.
Specs in practice
- Tunable White
- Allows the user to adjust the color temperature of the light between 2700K (warm white) and 5000K (cool white).
Images and diagrams
- Wiring: Connect Black (L) to Black (L), White (N) to White (N), and Ground (GND) to Ground (GND) using the provided wire connectors.
- Mounting: The bracket is secured to the junction box first, then the light fixture is attached to the bracket using retaining screws.
Model compatibility
- Residential use only.
- Indoor use only.
- Requires LED compatible dimmer if dimming is desired.
