User Manual for Artika Morgan LED Flush Mount Light
Quick guide for installing and using the Artika Morgan LED Flush Mount Light. Includes wiring instructions, color temperature settings, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the installation and operation of the Artika Morgan LED Flush Mount Light. Before beginning, ensure the main electrical supply is turned off at the circuit breaker. This product is intended for indoor residential use only. If you plan to use a dimmer, ensure it is compatible with LED lighting.

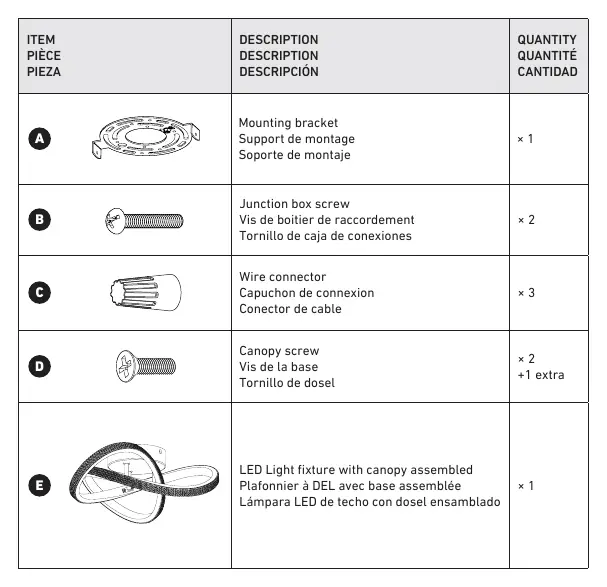

Included Hardware
The package includes the following components:
- Mounting bracket
- Junction box screws (x2)
- Wire connectors (x3)
- Canopy screws (x2 + 1 extra)
- LED Light fixture with canopy assembled
You will need a Phillips #2 screwdriver for the installation.
Installation Steps
Follow these steps to install the fixture:

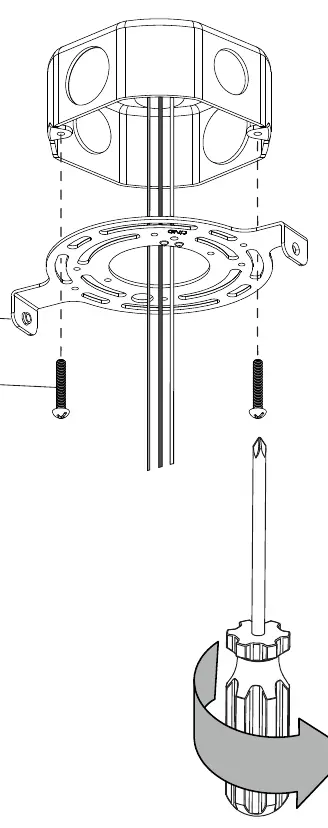

- Mounting Bracket Installation: Secure the mounting bracket to the junction box using the provided junction box screws.

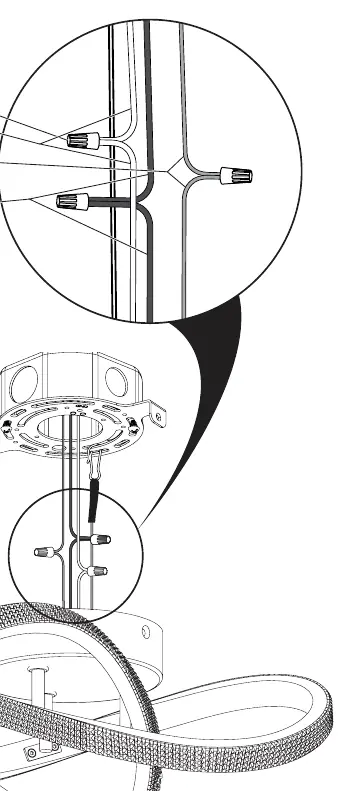

- Wiring Connection: Connect the fixture wires to the house supply wires using the provided wire connectors. Connect the White (N) wire to the neutral wire, the Black (L) wire to the live wire, and the Ground (G) wire to the ground wire.
- Selectable White Technology: Before final installation, adjust the color temperature switch on the fixture to your preferred setting (ranging from 2700K to 5000K).

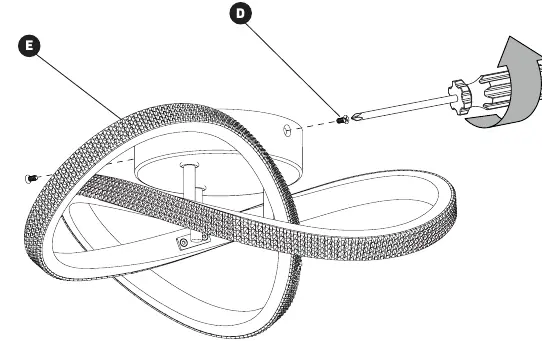

- Final Installation: Attach the fixture canopy to the mounting bracket using the canopy screws.
Safety and Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that the device does not cause harmful interference and must accept any interference received. The product should be installed by a certified electrician in accordance with local building and electrical codes.
Warranty and Support
Artika For Living Inc. offers a three-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. For support, contact Artika at 1-866-661-9606 or [email protected]. Customer service is available Monday to Friday, 9 am - 5 pm EST.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Verify that the main circuit breaker is turned on and that all wire connections are secure.
Dimmer compatibility issues
Ensure the wall dimmer switch is specifically rated for LED lighting.
Before use
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Ensure you have a Phillips #2 screwdriver.
- Verify that the junction box is properly installed and compatible.
- Check that the color temperature switch is set to your preference before final mounting.
Specs in practice
- Selectable White Technology
- Allows the user to choose the color temperature of the light between 2700K (warm) and 5000K (cool).
Images and diagrams
- Wiring: Connect White (N) to White, Black (L) to Black, and Ground (G) to the ground wire using the provided wire connectors.
Model compatibility
- For indoor residential use only.
- Requires an LED-compatible dimmer switch if dimming is desired.
