User Manual for ASAKUKI 100-DF003 Essential Oil Diffuser
Quick start guide and user manual for the ASAKUKI 100-DF003 Essential Oil Diffuser. Learn how to set up, operate mist and light modes, clean the device, and troubleshoot common issues.
Table of contents
Manual images
Click an image to enlargeQuick Start Guide
The ASAKUKI 100-DF003 is a premium essential oil diffuser. Before using, ensure you have all accessories: the diffuser unit and the AC power adapter. Note that the AC power adapter is packed inside the water tank.

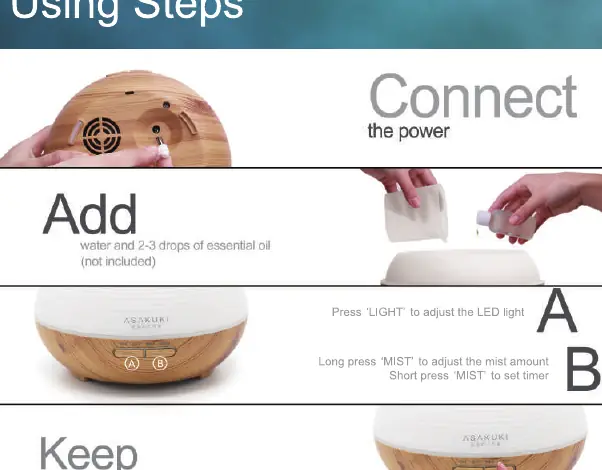

Setup Steps:
- Place the diffuser on a flat surface.
- Connect the AC power adapter to the port on the back of the unit.
- Remove the cover, add water to the tank (do not exceed the max line), and add 2-3 drops of your preferred essential oil.
- Replace the cover and press the buttons to start.

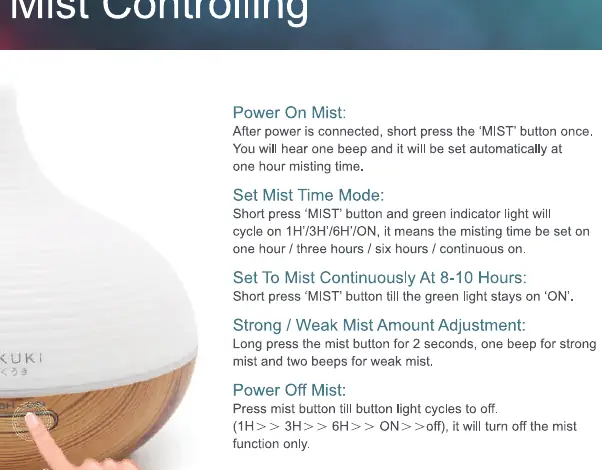

Mist Controlling
The mist function is controlled by the 'MIST' button:
- Power On: After connecting power, short press the 'MIST' button once. You will hear one beep, and it will automatically set to one hour.
- Set Timer: Short press the 'MIST' button to cycle through 1H, 3H, 6H, or ON (continuous).
- Continuous Mode: Short press until the green light stays on 'ON'.
- Intensity Adjustment: Long press the 'MIST' button for 2 seconds. One beep indicates strong mist; two beeps indicate weak mist.
- Power Off: Press the 'MIST' button repeatedly until the light cycles to off.

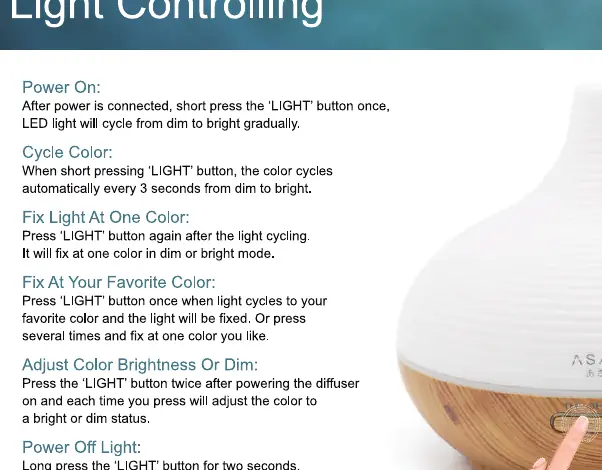

Light Controlling
The light function is controlled by the 'LIGHT' button:
- Power On: Short press the 'LIGHT' button once. The LED light will cycle from dim to bright.
- Cycle Colors: Short press the 'LIGHT' button to cycle colors automatically every 3 seconds.
- Fix Color: Press the 'LIGHT' button when the desired color appears to fix it.
- Adjust Brightness: Press the 'LIGHT' button twice after powering on to toggle between bright and dim status.
- Power Off: Long press the 'LIGHT' button for two seconds to turn off the light.
Maintenance & Cleaning
To ensure longevity and hygiene, clean the diffuser weekly:
- Unplug the unit and pour out remaining water from the 'DRAIN SIDE'.
- Add 2-3 drops of vinegar to 100ml of warm water (up to 70°C).
- Leave for 5 minutes, gently shake, and pour out the water.
- Wipe the interior with a dry, soft cloth.
- If not in use for a long time, keep the unit clean and dry.
Specifications
- Dimensions: Approx 168.5 x 164.5 mm
- Weight: Approx 420g
- Power Input/Output: AC 100-240V 50/60Hz, DC 24V 500mA
- Power Consumption: Approx 14W
- Tank Capacity: 300ml
- Coverage: Under 215-269 sq.ft.
- Working Frequency: 2.4MHz
Official resources from the manual
Manufacturer information
Asakuki
Practical help
Common problems
Essential oil smell is too weak
The 300ml tank requires more oil than smaller models. Add 5-8 drops of essential oil for the full tank capacity.
Diffuser is leaking
Unplug the unit immediately, pour out remaining water, shake gently to drain internal water, and let it dry for more than 24 hours.
Not misting enough
The device is designed for optimal humidity levels for breathing; it is not intended to produce maximum visible spray.
Before use
- Check inside the water tank for the AC power adapter.
- Ensure the diffuser is placed on a flat, stable surface.
- Do not fill water above the marked max line.
- Use only pure natural essential oils.
- Clean the water tank every 3 days to prevent biological growth.
Specs in practice
- Tank Capacity
- 300ml capacity allows for extended operation times.
- Working Frequency
- 2.4MHz ultrasonic frequency for efficient mist diffusion.
Images and diagrams
- The back of the unit contains the power input port.
- Buttons A and B on the front panel control Light and Mist functions respectively.
Model compatibility
- The device is BPA-free, made with PP and ABS materials similar to baby bottles.
