Avantco 178SSUC48FHC Undercounter Freezer Guide
Comprehensive user guide for the Avantco 178SSUC48FHC Undercounter Freezer. Includes technical specifications, installation dimensions, operating instructions for the digital controller, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Avantco 178SSUC48FHC is a commercial undercounter freezer designed for durability in busy kitchen environments. Key operational aspects include:
- Power Requirements: The unit requires a 115V electrical connection.
- Temperature Control: Monitor the interior using the wall-mounted thermometer and adjust settings via the pre-programmed digital controller.
- Defrosting: The unit features an automatic defrost function to maintain optimal performance.
- Installation: Ensure adequate space for the rear-breathing compressor system.
Product description
This undercounter freezer is built with a 430 type stainless steel exterior and a 304 type stainless steel interior for long-lasting durability. It utilizes foamed-in-place polyurethane insulation to maintain internal temperatures between -8 and -1 degrees Fahrenheit. The unit is equipped with two epoxy-coated steel shelves, each capable of supporting up to 90 lb of ingredients.

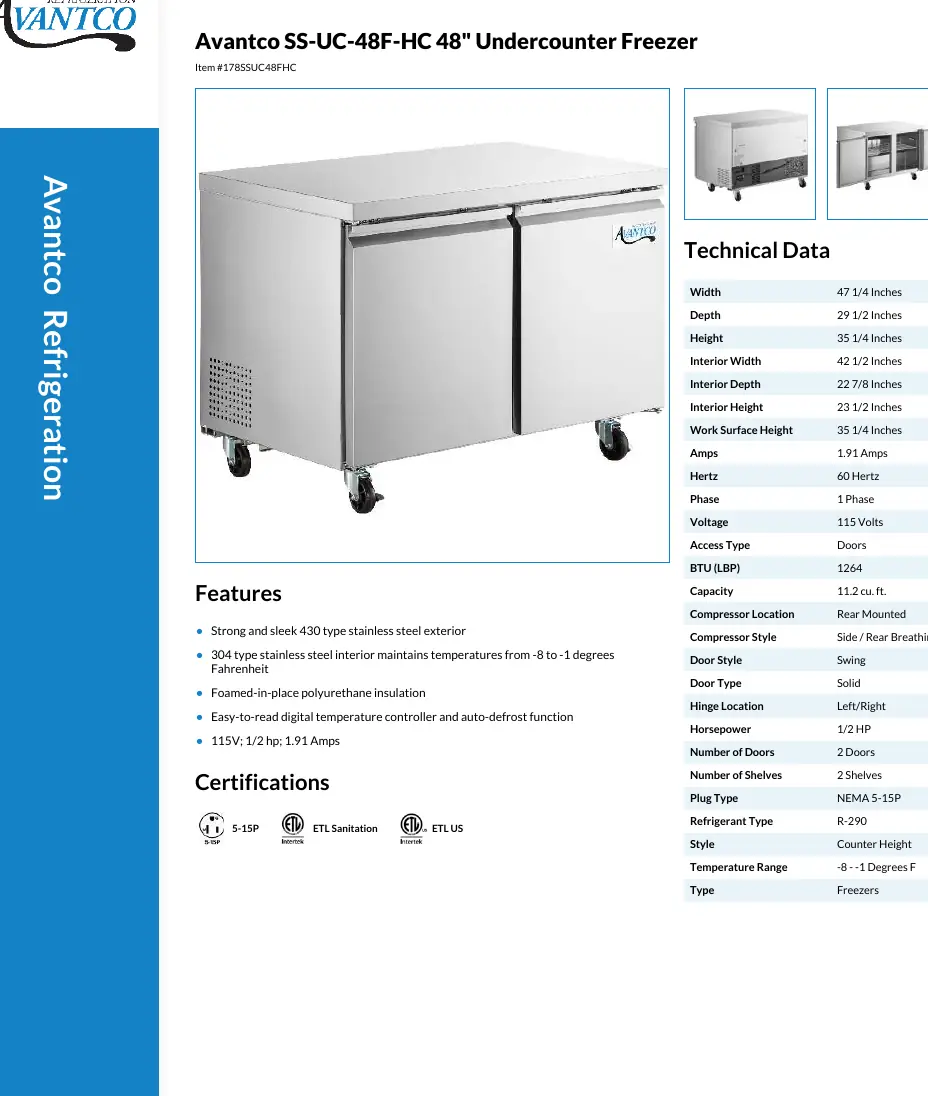

Technical specifications
The following specifications apply to the 178SSUC48FHC model:
- Dimensions: 47 1/4" Width x 29 1/2" Depth x 35 1/4" Height.
- Interior Capacity: 11.2 cu. ft.
- Electrical: 115V, 60 Hertz, 1.91 Amps.
- Compressor: 1/2 HP, rear-mounted, side/rear breathing.
- Refrigerant: R-290 (0 ODP, 3 GWP).
- Shelving: 2 shelves included.
- Casters: 2 1/2" casters for mobility and ADA-compliant working height.
Operation
Operation is managed through the digital controller. Users should monitor the interior temperature using the wall-mounted thermometer. The auto-defrost function is pre-programmed to keep the unit in optimal condition. Ensure the doors are closed properly to maintain the internal temperature range of -8 to -1 degrees Fahrenheit.
Maintenance and safety
Regular maintenance involves keeping the interior clean and ensuring the shelves are properly secured. The unit is designed for heavy, regular use. Warning: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.
Official resources from the manual
Manufacturer information
Avantco Equipment
Practical help
Common problems
Unit not maintaining temperature
Check the digital controller settings and ensure the doors are fully closed and sealed.
Insufficient cooling
Ensure the rear-breathing compressor has adequate clearance for airflow and is not obstructed.
Before use
- Verify that a 115V electrical outlet is available.
- Ensure the installation location allows for proper rear-breathing ventilation.
- Check that the 2 1/2" casters are locked if necessary to prevent movement.
- Verify that shelves are installed securely and do not exceed the 90 lb weight limit per shelf.
Images and diagrams
- The plan view provides critical installation dimensions, including the total width of 47 1/4" and depth of 29 1/2".
- The side view indicates the necessary clearance for the rear-breathing compressor system.
Model compatibility
- The unit is designed for ADA-compliant working heights when used with the provided 2 1/2" casters.
