User Manual for Baseus Airpow Air 10000mAh 22.5W Power Bank
Quick guide for the Baseus Airpow Air 10000mAh 22.5W power bank. Learn about charging capabilities, technical specifications, safety features, and how to use the built-in cables.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Baseus Airpow Air is a portable power bank designed for fast charging multiple devices simultaneously. It features two built-in cables (USB-C and Lightning) and additional ports, allowing you to charge up to four devices at once. The device supports various fast-charging protocols including PD3.0, QC4.0, AFC, SCP, and FCP.

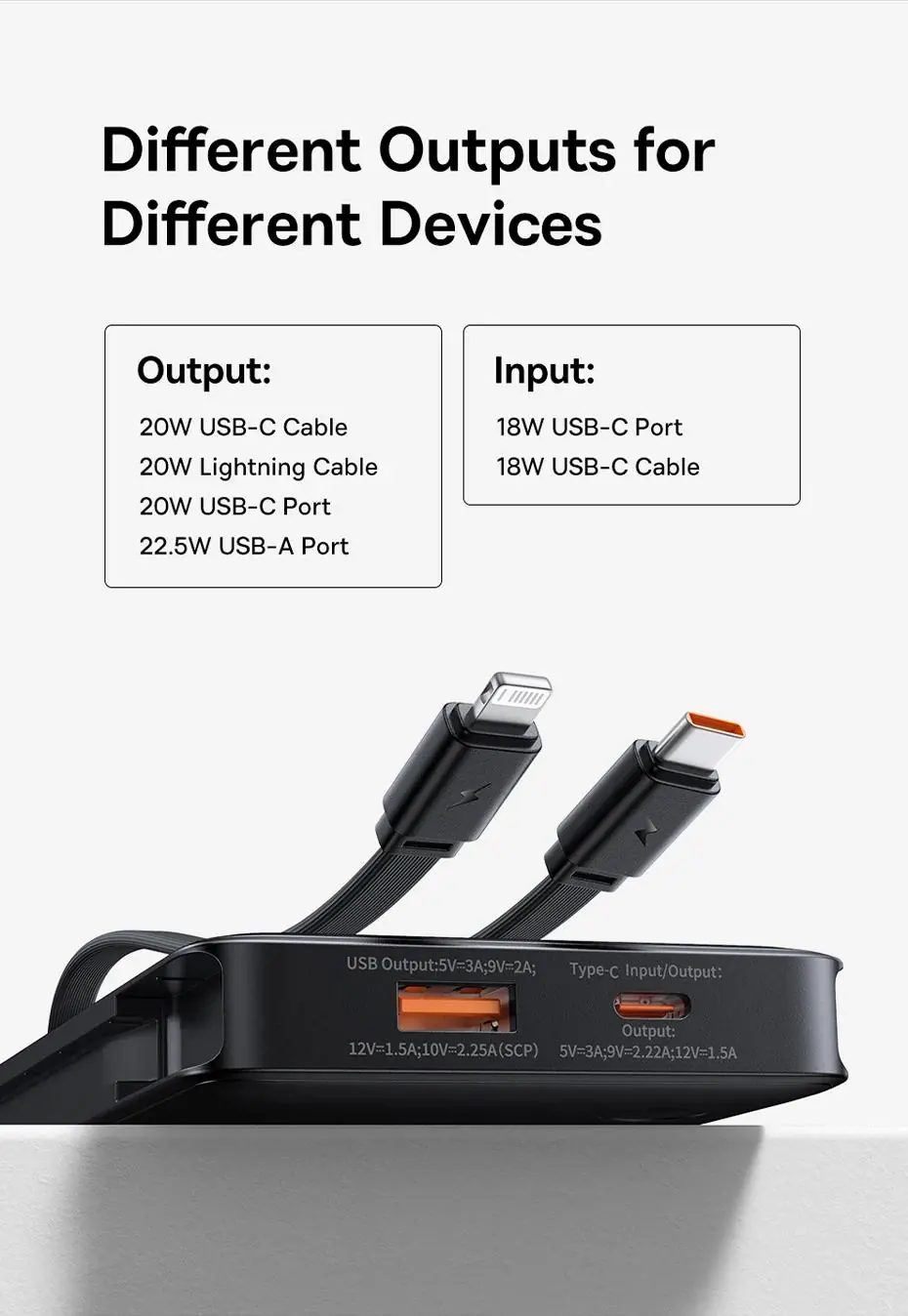

Charging Capabilities
This power bank offers versatile output options to accommodate different devices:
- Built-in USB-C Cable: Supports 20W fast charging.
- Built-in Lightning Cable: Supports 20W fast charging.
- USB-C Port: Supports 20W output.
- USB-A Port: Supports up to 22.5W output.

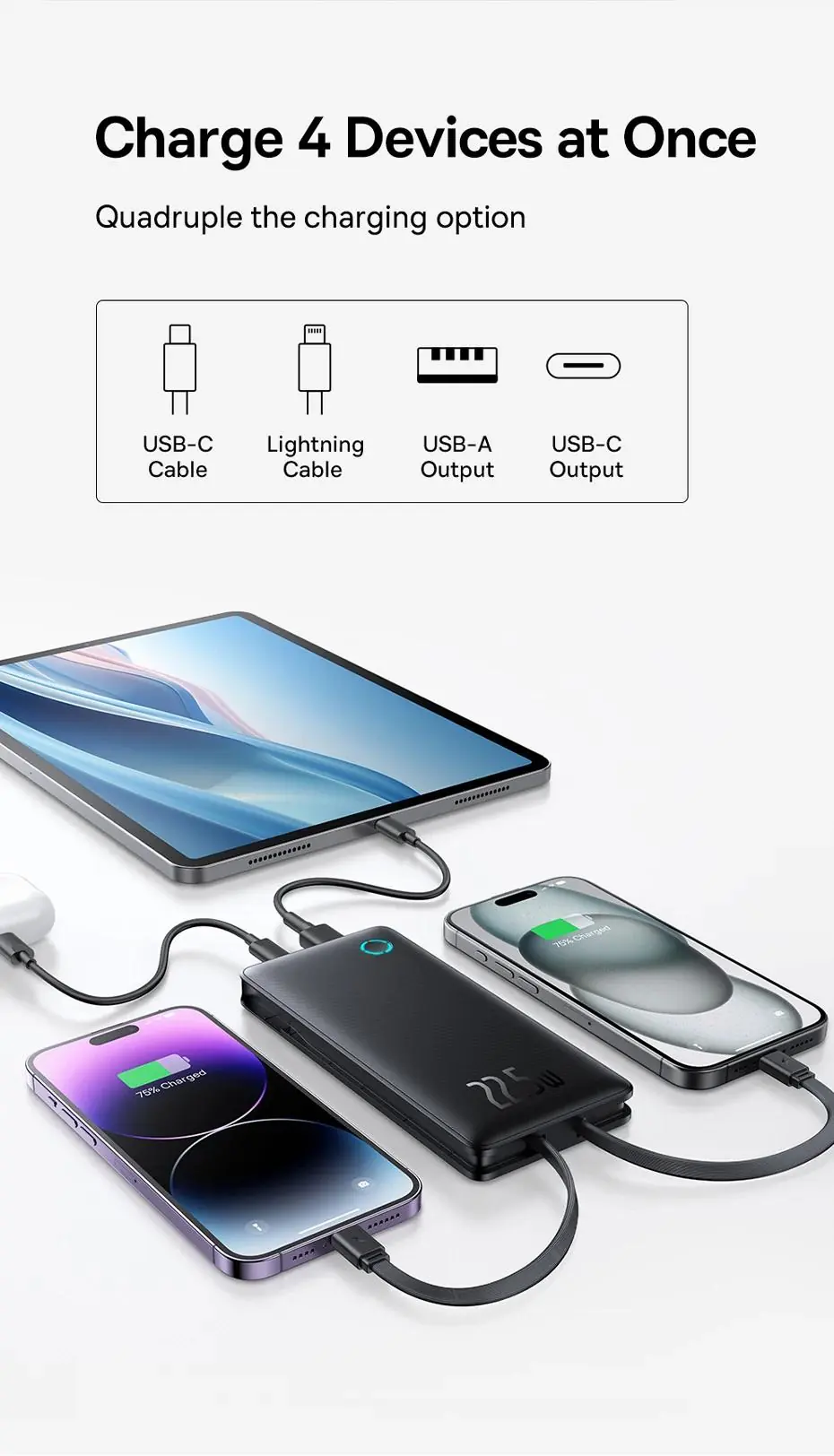

You can charge up to four devices simultaneously using the two built-in cables and the two available ports (USB-A and USB-C). The power bank itself can be recharged via the USB-C port or the built-in USB-C cable (18W input).

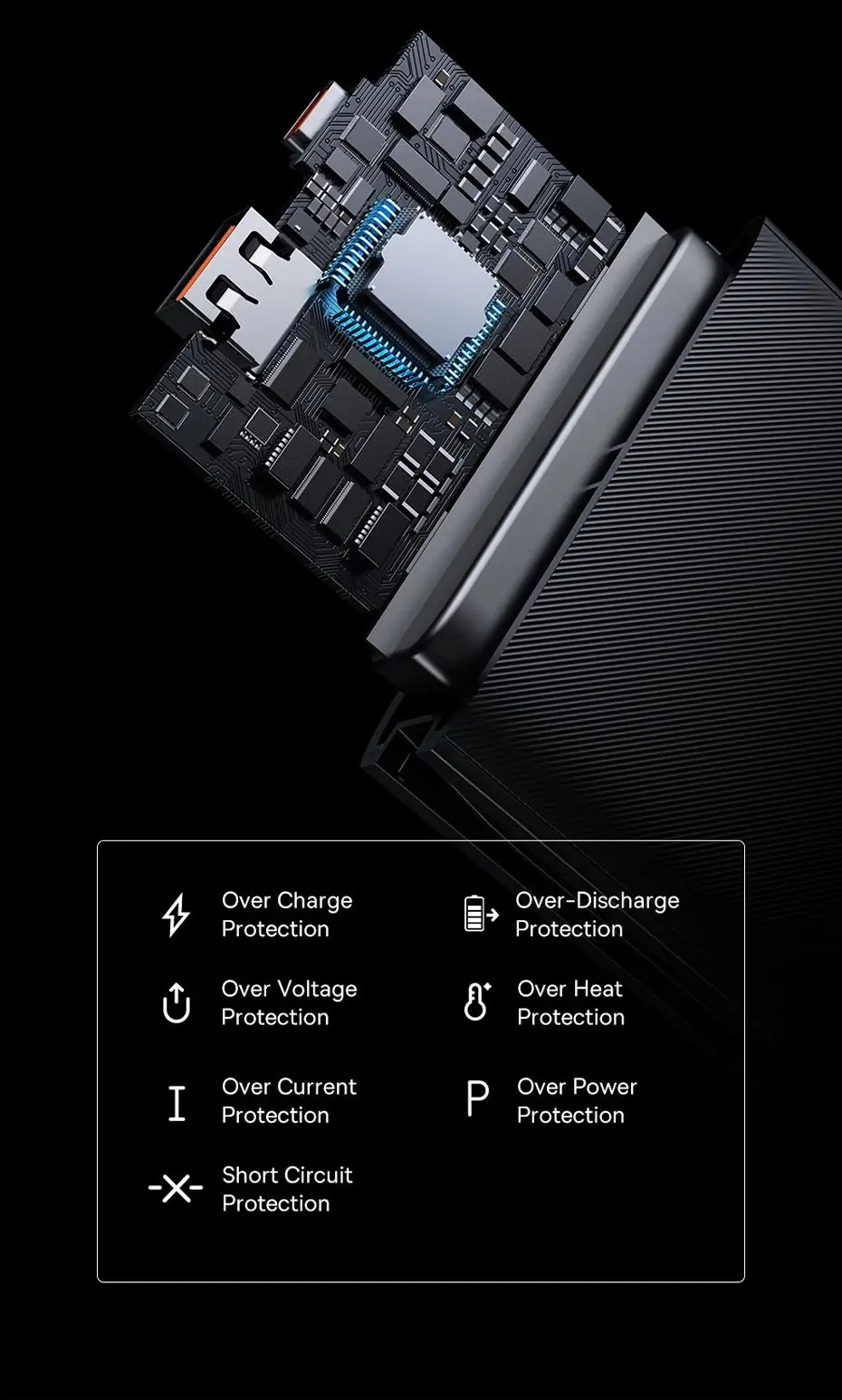

Safety Features
The device is equipped with an advanced safety smart chip that provides comprehensive protection during operation, including:
- Over-charge protection
- Over-discharge protection
- Over-voltage protection
- Over-heat protection
- Over-current protection
- Over-power protection
- Short-circuit protection
Technical Specifications
The power bank has a nominal battery capacity of 10000mAh (37Wh). Due to voltage conversion (from 3.7V to 5V) and energy loss during the step-up/step-down process, the rated capacity is approximately 5800mAh (at 5V=3A). The energy conversion rate is 75% or higher.

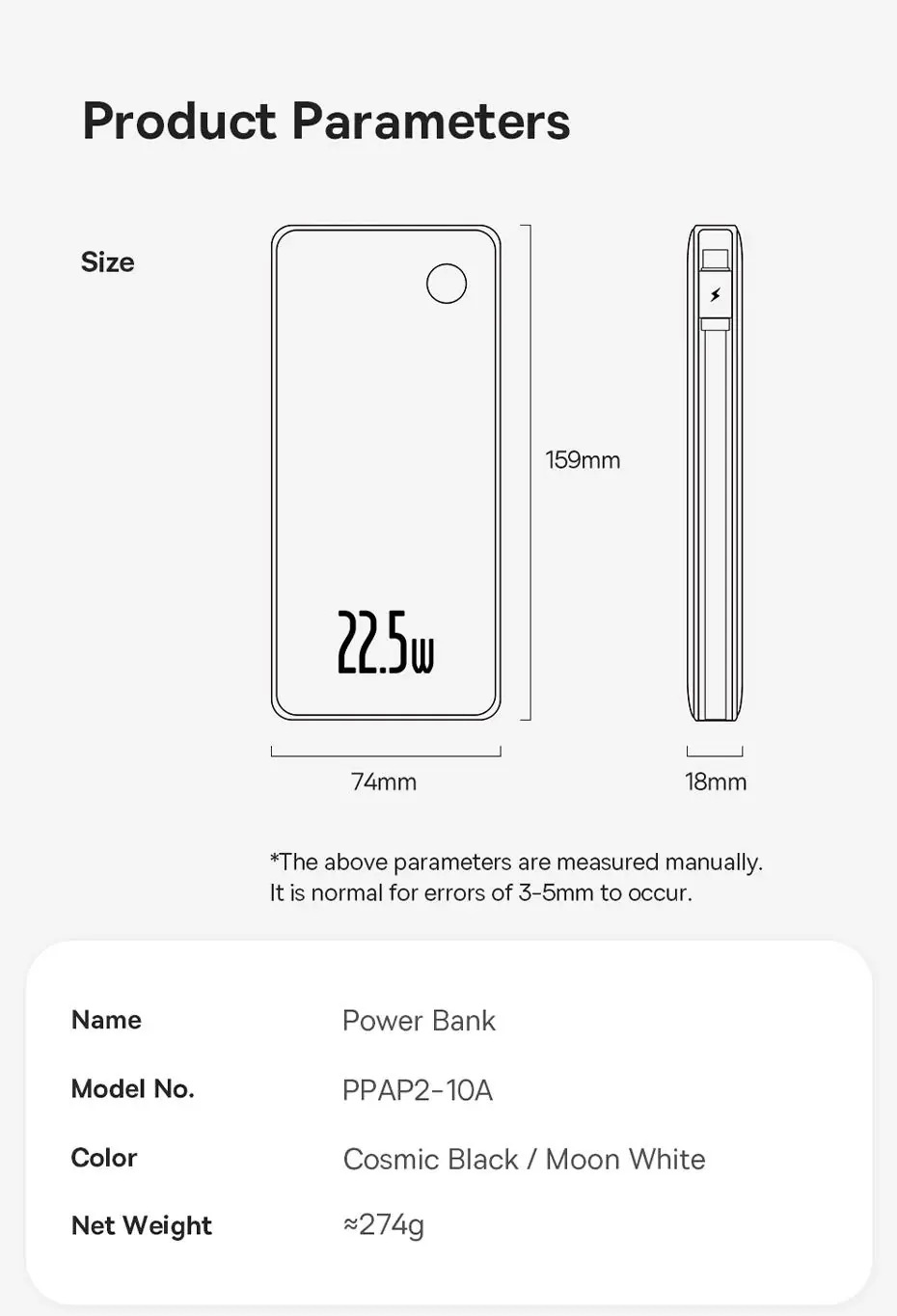

Physical Dimensions: Approximately 159mm x 74mm x 18mm. The net weight is approximately 274g.
Manufacturer information
Baseus
Practical help
Common problems
Battery capacity is 10000mAh but rated capacity is 5800mAh
This is normal. The internal 3.7V battery is boosted to 5V for output, and energy is lost during the conversion process. The rated capacity of 5800mAh reflects the actual usable capacity at 5V.
Before use
- Verify your device's charging protocol compatibility (PD3.0, QC4.0, AFC, SCP, FCP).
- Ensure the power bank is fully charged before first use.
- Check that the cables are securely connected to your devices.
- Confirm the power bank is within the operating temperature range.
Specs in practice
- Energy Conversion Rate >=75%
- Efficiency of the power transfer from the internal battery to your device.
Model compatibility
- Supports PD3.0, QC4.0, AFC, SCP, and FCP protocols.
- Compatible with most smartphones, tablets, and small electronic devices.
- Airline approved for travel.
