User Manual for Beautural Fabric Shaver 1-MR02NA03

Quick Guide

The Beautural Fabric Shaver is designed for domestic use to remove lint and bobbles from fabrics. Before first use, check the package contents for all parts and test the device on a small, hidden area of the fabric to ensure the speed level is appropriate. Always empty the fluff collector regularly; it should not be more than 3/4 full to maintain optimal performance.

Product Description

The device consists of the following main components:

• 0/I/II Speed Switch
• Battery Compartment Cover
• Fluff Collector
• Cutting Blades
• Shaver Foil
• Adjustable Spacer
• Replaceable Cutting Blades
• Cleaning Brush
• Carrying Bag

Getting Started

To prepare the device for use:

1. Open the battery compartment cover.
2. Insert 2 x AA batteries (not included), ensuring correct polarity.
3. Ensure the ribbon inside the compartment is underneath the batteries for easier removal.
4. Close the cover.

Usage Instructions

Follow these steps to operate the fabric shaver:

1. Lay the garment on a hard, flat surface to prevent fabric gathering.
2. Adjust the spacer to the desired level or remove it completely.
3. Press the Speed Switch to level I, or press again for level II.
4. Stretch the fabric with one hand and keep the shaving head at a 90-degree angle to the fabric.
5. To turn off, press the switch until it returns to level 0.

Shaving Tips:

• Knitted Fabrics: Guide the shaver in the direction of the knitting.
• Fabrics with Accessories: Avoid shaving over accessories.
• Thin Garments: Fold into two layers and lay over an ironing board.
• Quick Shaving: Slide the shaver over the top of the garment.

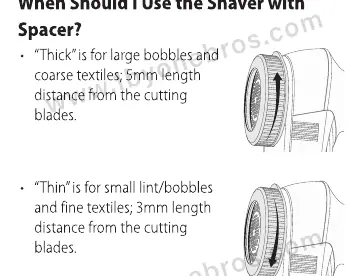

Spacer Usage

The adjustable spacer helps protect fabrics:

• Thick: For large bobbles and coarse textiles (5mm distance).
• Thin: For small lint/bobbles and fine textiles (3mm distance).
• No Spacer: Remove for very fine lint (virtually no spacing).

Maintenance and Care

To maintain the device:

• Emptying Fluff Collector: Pull the collector down and lift it off to empty.

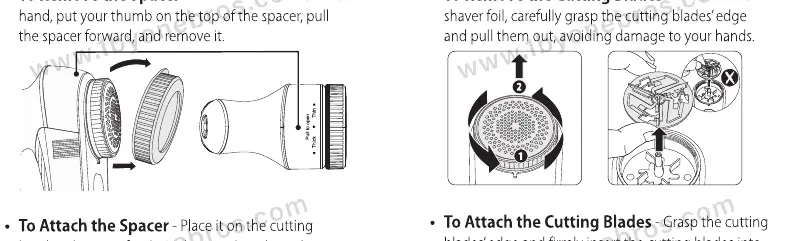

• Cleaning: Unscrew the shaver foil and spacer. Use the provided cleaning brush to remove lint from the blades. Clean parts with a slightly damp cloth and ensure they are completely dry before reassembly.

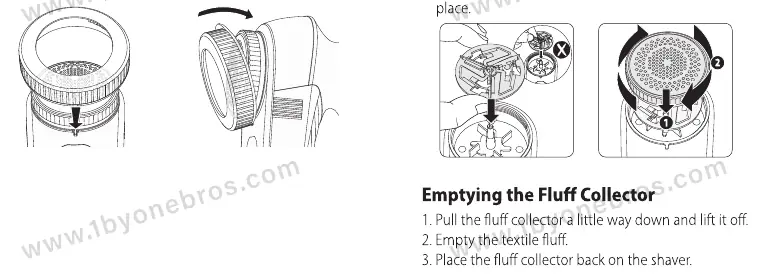

• Replacing Blades: Unscrew the shaver foil, carefully grasp the cutting blades' edge, and pull them out. Insert new blades firmly and screw the foil back into place.

Safety and Disposal

Do not use the device on moist fabrics or submerge it in water. Do not oil or grease the cutting blades. Dispose of the appliance and batteries according to local municipal regulations; do not throw them in household waste.
