Bekrvio 08FTC0085 Counter/Bar Stools Assembly Guide
Comprehensive assembly instructions for the Bekrvio 08FTC0085 Counter/Bar Stool, including component lists, hardware requirements, and step-by-step installation guidance.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Bekrvio 08FTC0085 Counter/Bar Stool is a stylish and functional seating solution designed for home environments. This manual provides all the necessary information to assemble your stool efficiently and safely. Before beginning the assembly process, please ensure that you have all the components listed in the hardware and component lists to avoid any interruptions during construction.
Assembly Preparation
Before starting the assembly, clear a spacious area to work on. It is recommended to assemble the stool on a soft surface, such as a rug or the shipping box, to prevent scratching the finish of the metal legs or the seat upholstery. Ensure you have the provided Allen key ready, as it is the primary tool required for tightening all bolts.
Step-by-Step Assembly
The assembly process is divided into five logical steps. First, attach the four legs (C) to the central leg support (B) using the provided bolts (2) and washers (3). Ensure these are tightened to approximately 75 percent initially to allow for adjustments. Next, attach the footrest pedal (E) to the legs using bolts (1). Once the base structure is formed, attach the turntable mechanism (D) to the top of the leg assembly using bolts (2) and washers (3), tightening them fully to 100 percent. Finally, attach the seat back (A) to the base assembly using the remaining bolts (7), washers (3), and spacers (6). Ensure all connections are securely tightened to 100 percent to guarantee the stability and safety of the stool.
Safety and Maintenance
Safety is paramount when using furniture. After completing the assembly, perform a final check to ensure that every screw and bolt is fully tightened. Periodically inspect the stool to ensure that no hardware has loosened over time due to regular use. If the stool feels wobbly, check the leveling feet at the bottom of the legs and adjust them as necessary to ensure the stool sits flat on the floor. Do not exceed the weight capacity of the stool, and avoid standing on the seat or using it as a step ladder. Keep the stool away from direct heat sources and sharp objects to maintain the integrity of the materials.
Manufacturer information
Bekrvio
Practical help
Common problems
Stool feels wobbly or unstable
Check that all bolts are fully tightened to 100 percent. Adjust the leveling feet at the bottom of the legs to ensure even contact with the floor.
Difficulty aligning parts during assembly
Do not fully tighten bolts until all parts are connected. Tightening to 75 percent initially allows for minor adjustments to align holes.
Before use

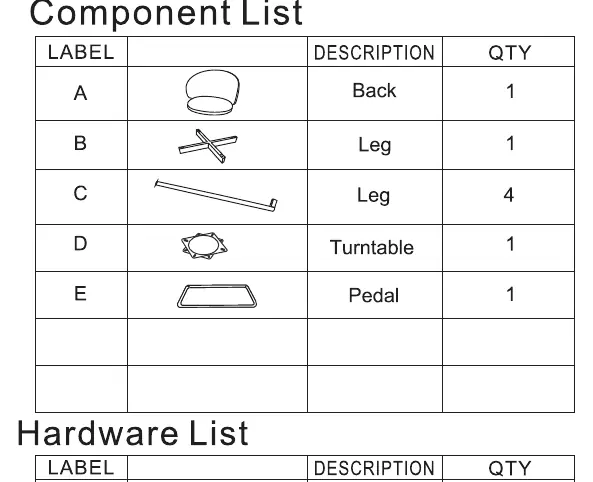

- Verify all components (A, B, C, D, E) are present.
- Verify all hardware (Bolts 1, 2, 7; Washers 3, 6; Tool 4) is present.
- Clear a soft, flat workspace.
- Ensure the Allen key is available.
- Check that all bolts are tightened to 100 percent before sitting.
Specs in practice
- Bolts M6x25mm
- Used for attaching the footrest pedal.
- Bolts M6x16mm
- Used for the leg structure and turntable attachment.
- Bolts M6x28mm
- Used for securing the seat back to the base.
Images and diagrams

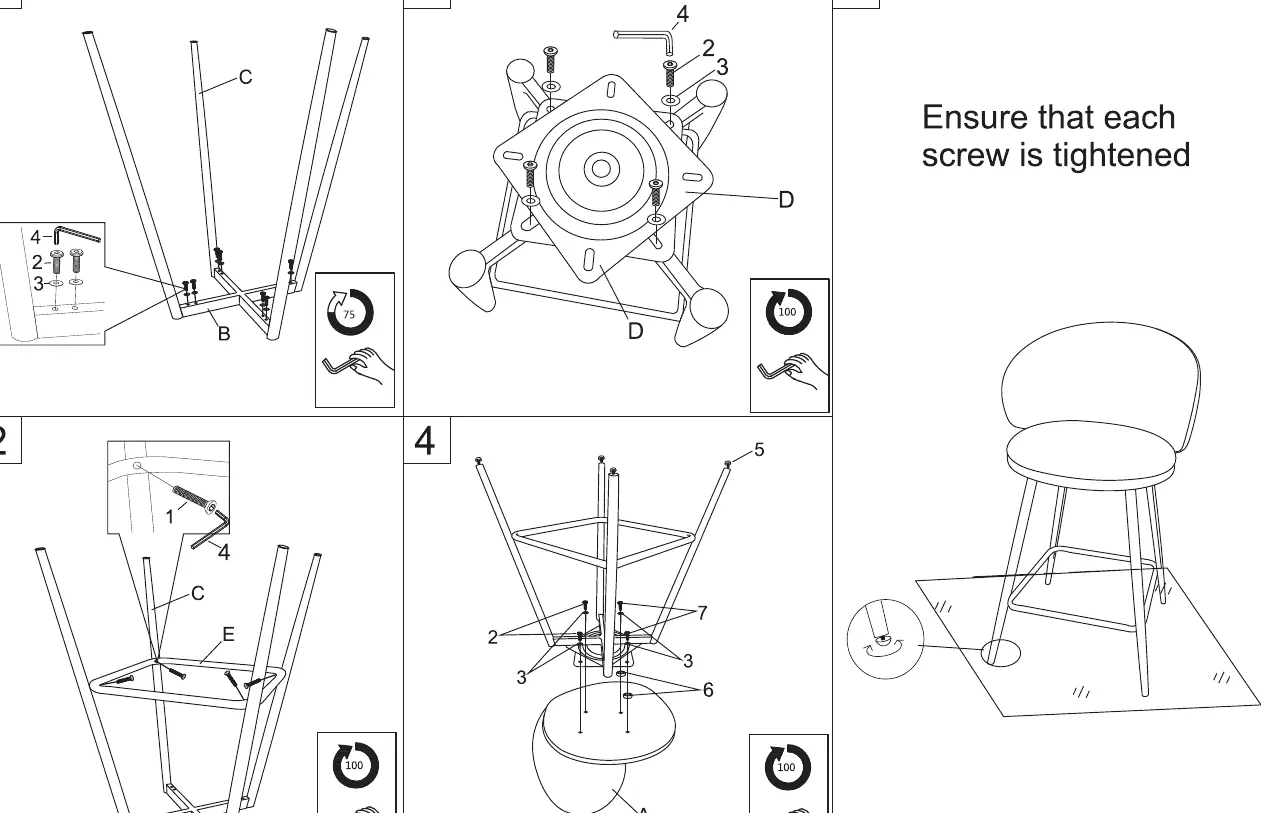

- Step 1: Connect legs to the central support.
- Step 2: Attach the footrest pedal to the leg frame.
- Step 3: Secure the turntable mechanism to the leg assembly.
- Step 4: Mount the seat back onto the turntable base.
- Step 5: Final check of all tightened screws and leveling.
Model compatibility
- Designed for indoor use only.
- Ensure floor surface is level for optimal stability.
