Evolur 1222R1-610 Raleigh Upholstered Plush Seating Glider Swivel Rocker Recliner User Manual

Quick guide from the manual

This document provides essential instructions for the assembly, safe operation, and maintenance of the Evolur 1222R1-610 Raleigh Glider. Before use, ensure all parts are present and the chair is assembled on a soft, level surface. The maximum weight capacity for this product is 108 kg (240 lbs).

Assembly

The assembly process consists of two main steps:

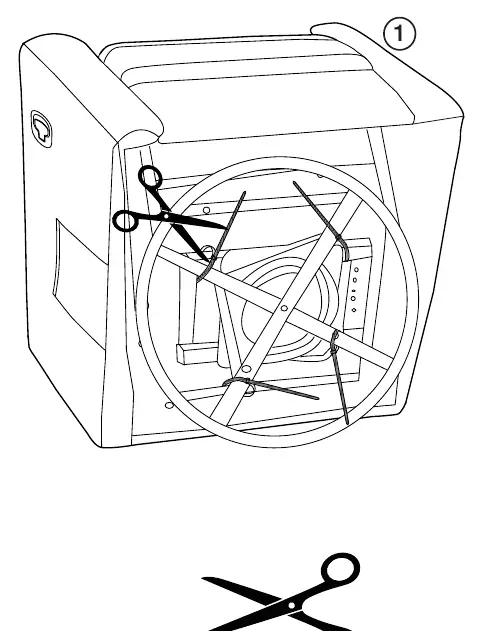

• Base Setup: Place the glider on a soft, level surface. Carefully cut the straps wrapped around the metal swivel mechanism located underneath the seat.

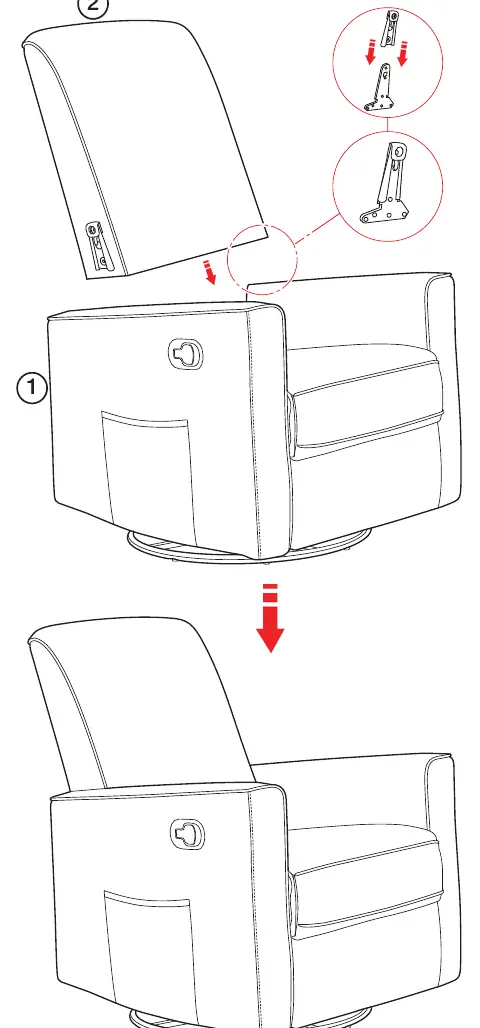

• Backrest Installation: Align the metal channel on the backrest with the metal prongs on the seat frame. Slide the backrest down until you hear a click, indicating it is locked. Pull the backrest upward to ensure it is securely attached.

Safety Warnings

• Failure to follow assembly instructions may result in serious injury or death.
• Do not allow children to play on or use the glider unsupervised.
• Keep hands and feet clear of the mechanism at all times.
• Ensure nothing is underneath the footrest when returning it to the closed position.
• Periodically check all connecting points to ensure they have not come loose during use.
• Do not use the glider if any parts are missing, damaged, or broken.

Furniture Care

• Clean only with mild, water-free solvents. Never use water, as minerals can cause staining or fading.
• Do not use bleach or dry clean individual parts.
• Protect surfaces from hot or extremely cold items, and keep away from pens, markers, or scented oils which can damage the fabric.
• Lift the chair slightly when moving it on carpeting to prevent damage to the swivel mechanism.
• Do not store the product in extreme temperatures, such as hot attics or damp basements.

Warranty

Evolur provides a 1-year limited warranty from the date of purchase, covering defects in material and workmanship. The warranty is valid only with proof of purchase and does not cover damage caused by improper assembly, misuse, or unauthorized repairs.
