Curtis 194S9728LGY-1 36.5″ Microfiber and Corduroy Recliner Assembly Instruction
Quick assembly guide for the Curtis 194S9728LGY-1 recliner, including component lists, step-by-step installation instructions, and care guidelines for microfiber and corduroy upholstery.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the Curtis 194S9728LGY-1 Reclining Chair. Please note that power tools should not be used during assembly to prevent splitting or cracking the wood. Ensure all components are present before beginning.
Component list
- A: Seat (1)
- B: Back Rest (1)
- C: LSF Ear (1)
- D: RSF Ear (1)
Assembly

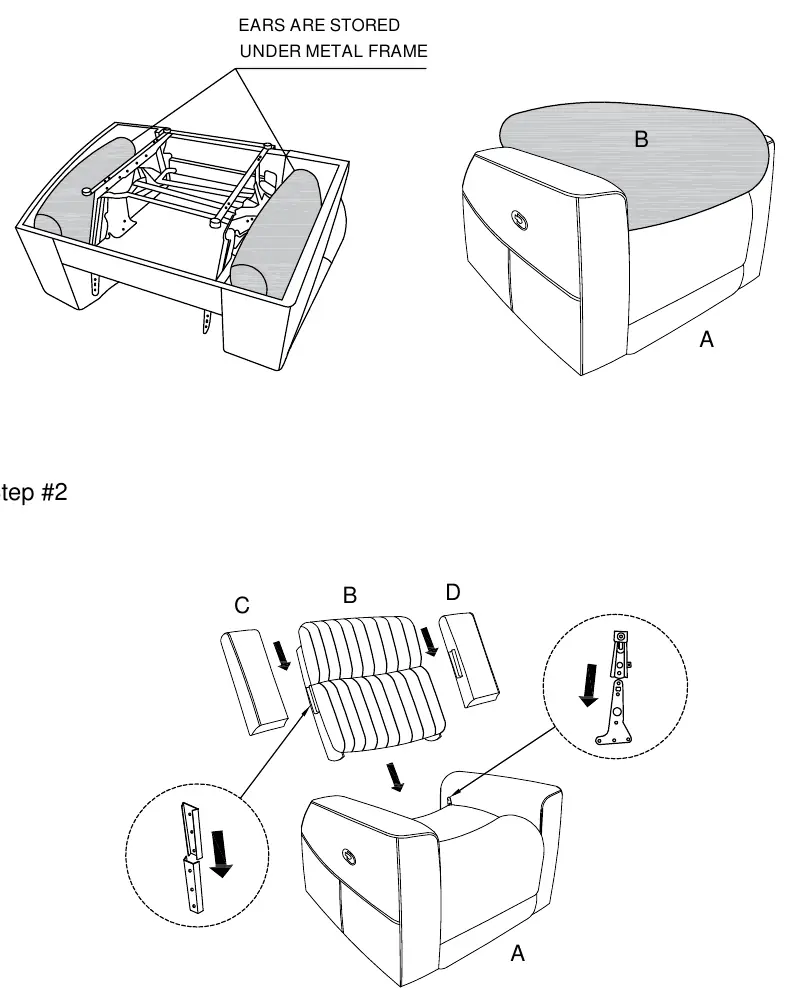

Step 1: Locate the ears (C and D) which are stored under the metal frame of the seat (A).
Step 2: Attach the back rest (B) to the seat (A) by sliding it into the metal brackets. Then, attach the LSF ear (C) and RSF ear (D) to the sides of the back rest by sliding them into the designated metal slots.

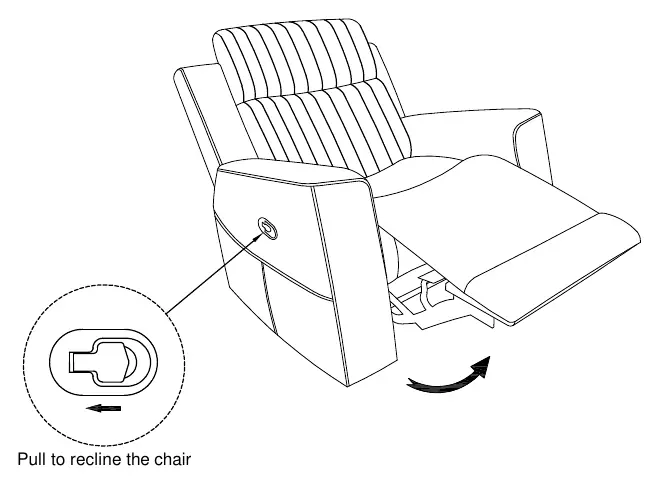

Step 3: To recline the chair, pull the lever located on the side of the seat.
Care and maintenance
To maintain the appearance of your microfiber and corduroy furniture:
- Avoid direct exposure to sunlight, heating, or air conditioning outlets to prevent fading or damage.
- Regularly vacuum or wipe with a soft cloth to remove dust.
- Periodically check all hardware connections and re-tighten if necessary, as they may loosen over time.
- For use on wooden floors, hard surfaces, or carpets, it is recommended to install protective pads under all legs and supports to prevent scratches and discoloration.
Practical help
Common problems
Hardware loosening over time
Periodically check all connections and re-tighten if necessary.
Risk of wood splitting during assembly
Do not use power tools; use manual tools to avoid over-tightening.
Floor damage or scratches
Install protective pads under all legs and supports.
Before use
- Verify all components (Seat, Back Rest, LSF Ear, RSF Ear) are present.
- Ensure you have a clear space for assembly.
- Check that you are not using power tools.
- Confirm protective pads are installed if placing on hard floors or carpets.
Images and diagrams
- Step 1 shows the location of the ears stored under the seat frame.
- Step 2 illustrates the sliding mechanism for attaching the back rest and side ears to the seat.
- Step 3 demonstrates the operation of the recline lever.
Model compatibility
- Suitable for use on wooden floors, hard surfaces, and carpets provided protective pads are used.
