Assembly Instructions for Coaster Fine Furniture 193962NAT Side Chair
Quick assembly guide for the Coaster Fine Furniture 193962NAT side chair, including parts identification, hardware list, step-by-step assembly instructions, and product dimensions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the Coaster Fine Furniture 193962NAT side chair. The estimated assembly time is 20 minutes. Before starting, ensure all parts and hardware are present and sorted by size. Follow the steps in the numbered sequence provided to ensure a fast and easy assembly. A Phillips head screwdriver is required for assembly but is not included.
Parts identification
The package includes the following components: Right Leg Frame (A), Left Leg Frame (B), Front Rail (Long) (C), Back Rail (Short) (D), Front Lower Rail (Long) (E), Backrest (F), Back Cushion (Small) (G), and Seat Cushion (Big) (H).
Hardware identification

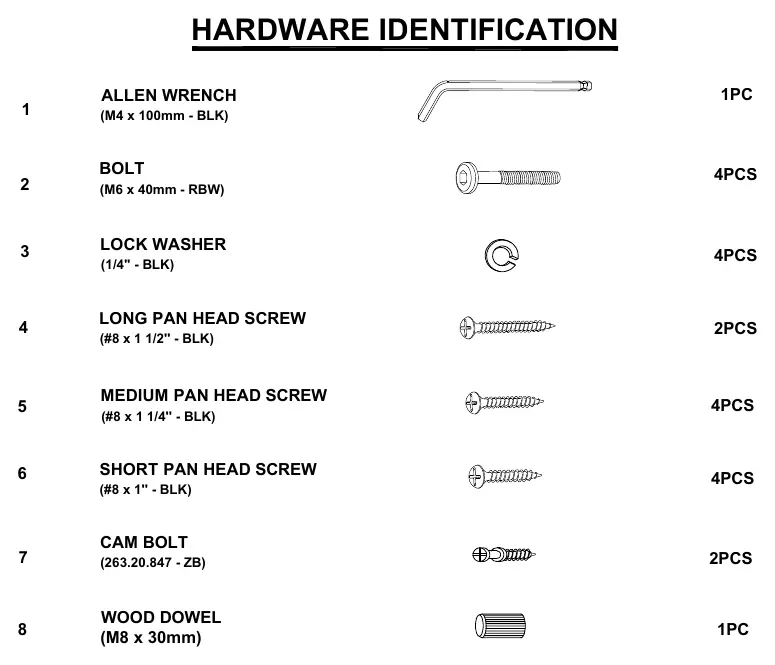

The hardware kit contains: Allen Wrench (1), Bolts (2), Lock Washers (3), Long Pan Head Screws (4), Medium Pan Head Screws (5), Short Pan Head Screws (6), Cam Bolts (7), and Wood Dowel (8).
Assembly steps
Follow these steps to assemble the chair:
- Attach the Front Rail (C), Back Rail (D), and Front Lower Rail (E) to the Right Leg Frame (A) and Left Leg Frame (B) using the provided bolts and washers.
- Secure the rails to the frame using the Long Pan Head Screws (4).
- Attach the Backrest (F) to the frame assembly using the Short Pan Head Screws (6).
- Insert the Wood Dowel (8) into the designated hole on the frame.
- Attach the Seat Cushion (H) to the frame using the Medium Pan Head Screws (5).
- Attach the Back Cushion (G) to the backrest using the Cam Bolts (7).
- Insert the screw and push down to secure the back cushion.
- Perform a final check of all screws and connections to ensure the chair is stable.
Safety and maintenance
This product is intended for home use only and is not suitable for commercial establishments. Do not attempt to repair or modify parts that are broken or defective; contact the store immediately if any issues arise.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing hardware or parts
Check all packaging thoroughly before assembly. If parts are missing or defective, do not attempt to modify them; contact the store immediately.
Difficulty during assembly
Ensure you are following the steps in the exact numbered sequence provided in the manual.
Before use
- Remove all hardware from the box and sort by size.
- Verify all parts listed in the 'Parts Identification' section are present.
- Verify all hardware listed in the 'Hardware Identification' section is present.
- Ensure you have a Phillips head screwdriver available (not included).
- Clear a workspace to allow for easy assembly.
Specs in practice
- Assembly Time
- Approximately 20 minutes.
- Dimension Tolerance
- ±5%.
Images and diagrams

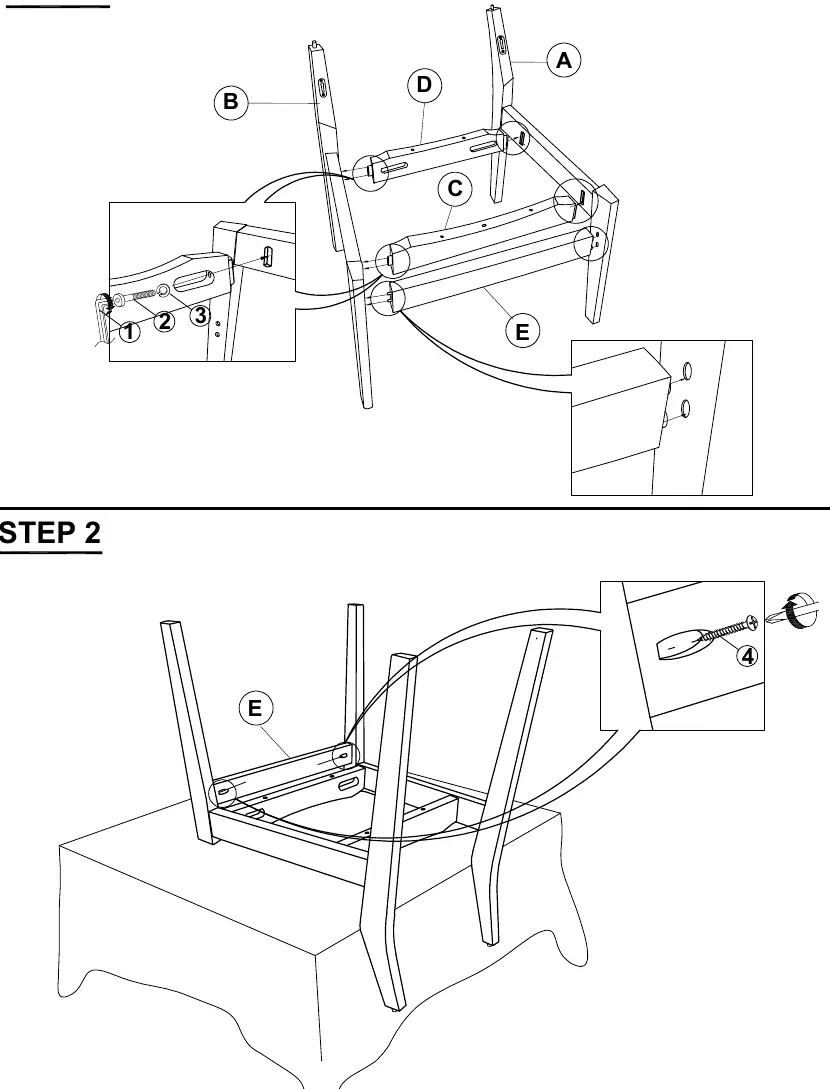

- Step 1 shows the connection of the leg frames and rails.
- Step 4 illustrates the insertion of the wood dowel using a mallet.

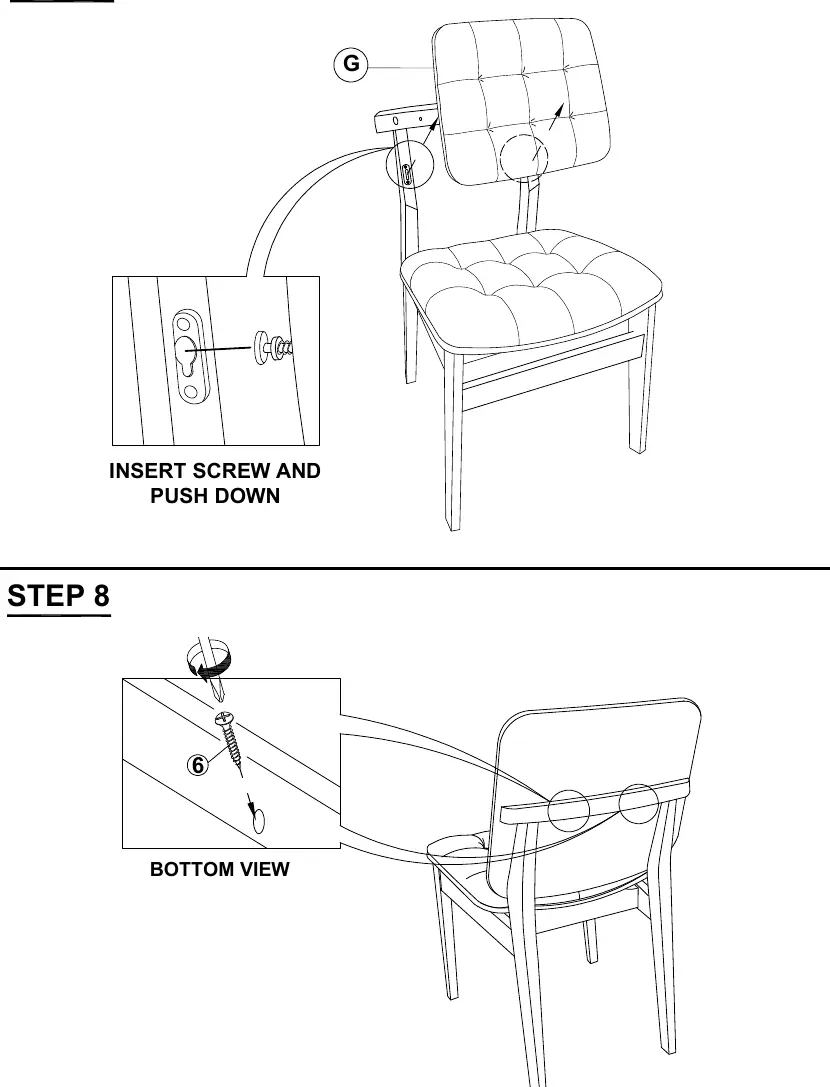

- Step 7 demonstrates the specific 'insert and push down' motion for the back cushion.
- The final page provides detailed dimensions of the assembled chair.
