This manual provides essential instructions for the safe and efficient operation of the Bosch GCB 18V-127 Professional cordless band saw. Key procedures include battery installation, bandsaw blade replacement, guide adjustment, and blade tracking. Always wear safety goggles and protective gloves when handling the bandsaw blade.
Product Description
The GCB 18V-127 is a cordless band saw designed for cutting plastic, metal, and rubber on a stable surface. It features adjustable blade speed, a worklight, and a hanging hook for storage.
Battery Operation
Use only Bosch 18V GBA or ProCORE18V batteries. To insert, slide the charged battery into the battery holder until it clicks. To remove, press the release button and pull the battery out. Check the charge level using the LEDs on the battery.
Assembly and Blade Replacement
Warning: Always remove the battery before performing maintenance or changing the blade.

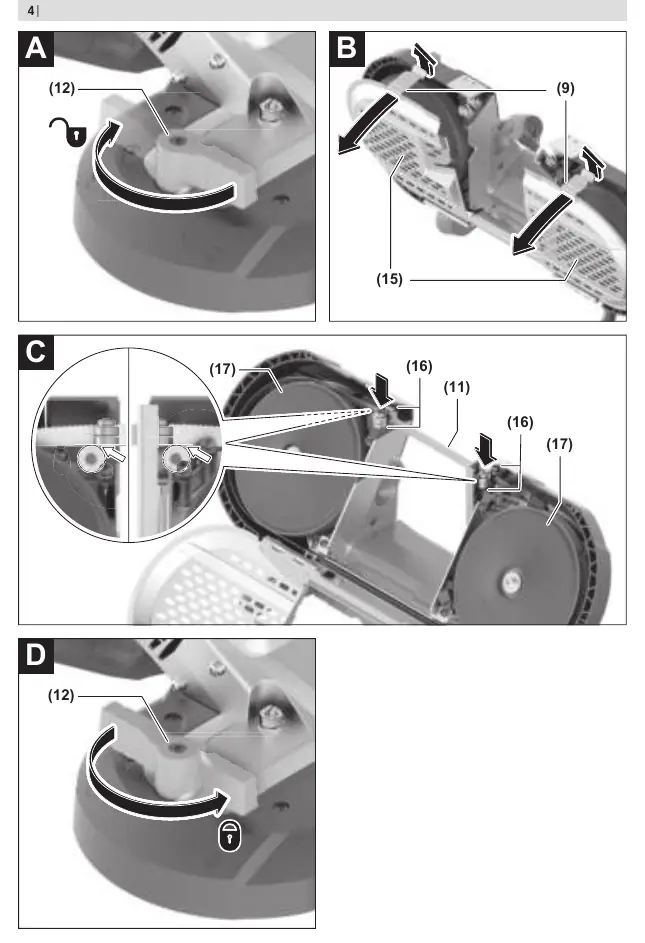

- Blade Replacement: Move the pre-tension lever to the release position. Open the cover using the locking clips. Guide the new blade into the guides and around the rollers. Return the pre-tension lever to the tension position. Close and lock the cover.
- Guide Adjustment: Use the guide to ensure safe and precise cuts. Loosen the screws on the guide, adjust to the required length, and retighten the screws.
Operation
To switch on, press the lock-off switch on the rear, then press and hold the on/off switch. The worklight illuminates the cutting area. To switch off, release the on/off switch and press the lock-off switch on the front to secure the tool. The tool features restart protection and temperature-dependent overload protection.
Working Advice
Hold the tool firmly with both hands and ensure a stable footing. Select a sawing position where as many teeth as possible are in the cut. Adjust blade tracking if the distance between the blade and the upper edge of the roller exceeds 3 mm using the adjustment screw.
Maintenance
Keep the tool and ventilation slots clean for safe operation. For repairs, contact an authorized Bosch service center.
Manufacturer information
Bosch
Practical help
Common problems
Blade slips or breaks during operation.
Do not apply excessive pressure. Keep lubricants and oil away from the blade; wipe off excess oil before cutting.
Blade not running correctly on rollers.
Adjust the blade tracking using the adjustment screw until the distance between the blade and the upper edge of the roller is less than 3 mm.
Before use
- Check battery charge level
- Ensure the bandsaw blade is undamaged and sharp
- Wear safety goggles and protective gloves
- Verify blade tracking
- Ensure the workpiece is securely clamped to a stable platform
Specs in practice
- Rated voltage
- 18V (battery operated)
- Max. cutting depth
- 127 mm

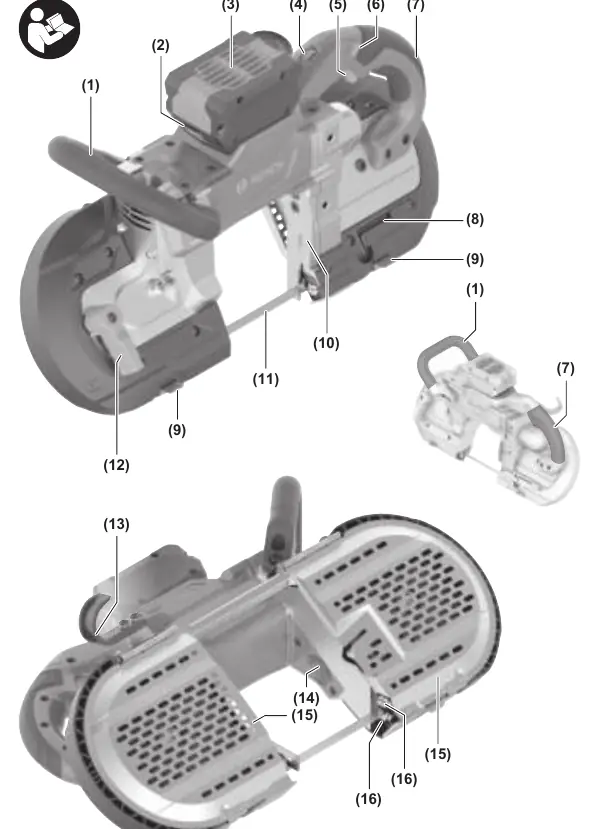

Images and diagrams
- (1) Auxiliary handle
- (5) On/off switch
- (11) Bandsaw blade
- (12) Pre-tension lever
Model compatibility
- Compatible with Bosch 18V GBA and ProCORE18V batteries.
