User Manual for Bosch PST 18 LI Cordless Jigsaw
Quick guide and user manual for the Bosch PST 18 LI cordless jigsaw. Includes setup, blade installation, operation, and maintenance instructions.
Quick answers from the manual
Quick answer
- The Bosch PST 18 LI is a cordless jigsaw designed for cutting wood, plastic, metal, ceramic plates, and rubber. It features adjustable stroke rate, orbital action, and a Cut Control system for precise cutting. p. 10, 11
Key actions
- Install blade p. 12
- Adjust cutting angle p. 13
First start
- Charge the battery fully before first use. p. 12
Problems and fixes
Tool stops automatically
Thermal overload protection or low battery. Let battery cool or recharge.
p. 14Maintenance and reset
- Regularly clean the blade holder and lubricate the guide roller. p. 15
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 18 V | Nominal voltage | p. 11 |
Where to find it in the PDF
- Overview p. 4
- Technical Data p. 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bosch PST 18 LI is a cordless jigsaw designed for cutting wood, plastic, metal, ceramic plates, and rubber. This guide provides essential information for safe and efficient operation. Always ensure the battery is charged and the correct blade is installed for the material being cut.
Product description
The jigsaw features an adjustable stroke rate, orbital action, and a Cut Control system for precise cutting. Key components include the blade holder, base plate, battery release button, and dust extraction port.
Assembly
- Battery: Insert the charged battery into the battery holder until it clicks into place.
- Blade Installation: Use protective gloves. Move the blade holder upwards, insert the blade (teeth facing the cutting direction) until it stops. Ensure the back of the blade sits in the guide roller groove.
- Dust Extraction: Connect a vacuum hose to the extraction port if needed.
Operation
- Switching On/Off: Press the lock-off button, then press and hold the on/off switch. Release the switch to stop.
- Stroke Rate Control: Adjust the stroke rate by varying the pressure on the on/off switch.
- Orbital Action: Use the adjustment lever to set the orbital action. Lower settings provide cleaner cuts; higher settings provide faster cutting speeds.
- Cutting Angle: The base plate can be tilted up to 45° to the left or right for bevel cuts.
Maintenance
- Regularly clean the blade holder by tapping the tool on a flat surface.
- Lubricate the guide roller occasionally with a drop of oil.
- Keep ventilation slots clean to ensure proper motor cooling.
Troubleshooting
If the tool stops automatically, it may be due to thermal overload or a low battery. Allow the battery to cool down or recharge it before resuming work.
Manufacturer information
Bosch
Practical help
Common problems
Tool stops during operation
Check battery charge or thermal overload protection. Let the battery cool down or recharge it.
Blade does not cut straight
Check if the blade is properly seated in the guide roller groove and that the base plate is securely fastened.
Before use
- Charge the battery fully before first use.
- Ensure the correct blade type is installed for the material.
- Check that the blade is securely locked in the holder.
- Verify the base plate is securely attached and adjusted.
- Clear the workspace of any obstructions.
Specs in practice
- Max cutting depth (wood)
- 80 mm.
- Max cutting depth (aluminum)
- 12 mm.
Images and diagrams

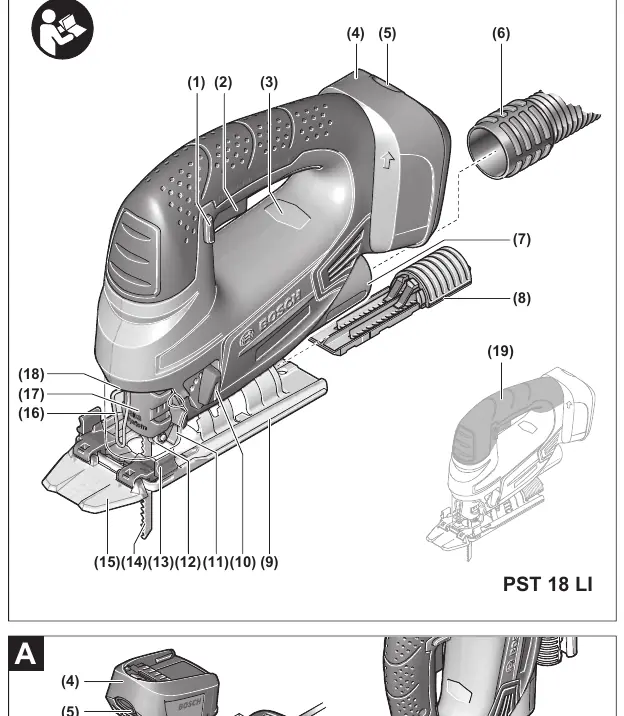

- Page 4: Overview of all tool components.
- Page 5: Blade installation and removal procedures.

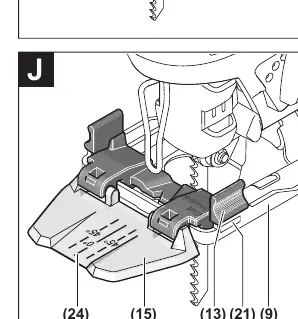

- Page 6: Angle adjustment and parallel guide setup.
Model compatibility
- Compatible with Bosch PBA 18V batteries.
- Not compatible with AL 1814 CV, AL 1820 CV, AL 1860 CV chargers.
