User Manual for Bosch GSA 18V-LI C Cordless Reciprocating Saw
Quick guide for the Bosch GSA 18V-LI C cordless reciprocating saw. Includes assembly, operation, plunge cutting, flush sawing, and maintenance instructions.
Quick answers from the manual
Quick answer
- The Bosch GSA 18V-LI C is a cordless reciprocating saw suitable for cutting wood, plastic, metal, and building materials. It features an SDS tool holder for quick blade changes and variable stroke rate control. p. 7
Key actions
- Insert/Change saw blade p. 8
- Plunge cutting p. 9
First start
- Charge the battery fully before using the tool for the first time. p. 7
Problems and fixes
Saw blade jams
Switch off the tool immediately, widen the sawing gap with a suitable tool, and pull the tool out.
p. 9Maintenance and reset
- Clean the saw blade receptacle regularly with a soft cloth. p. 9
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated voltage | 18 V | Operating voltage | p. 7 |
| No-load stroke rate | 0–3050 min⁻¹ | Speed without load | p. 7 |
Where to find it in the PDF
- Product Overview p. 3
- Assembly and Operation p. 4
- Technical Data p. 7
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe and efficient operation of the Bosch GSA 18V-LI C cordless reciprocating saw. Always ensure the battery is removed before performing any maintenance or changing accessories to prevent accidental starting.
Product Description
The GSA 18V-LI C is a cordless reciprocating saw designed for cutting wood, plastic, metal, and building materials. Key features include:
- Saw blade receptacle (SDS): For quick and tool-free blade changes.
- Lock-off button: Prevents accidental activation of the on/off switch.
- Worklight: Illuminates the cutting area.
- Variable stroke rate: Controlled by the pressure applied to the on/off switch.
Assembly
Inserting and Changing the Saw Blade
- Wear protective gloves when handling saw blades as they are sharp and can become hot.
- Ensure the saw blade receptacle is free of material residue (e.g., wood or metal chips).
- Turn the locking sleeve approx. 90° in the direction of the arrow and hold it firmly.
- Push the saw blade into the saw blade receptacle.
- Release the locking sleeve.
- Check that the blade is seated securely by pulling on it.
Operation
Switching On and Off
To switch on the tool, press the lock-off button to the left, then press and hold the on/off switch. To switch off, release the on/off switch and press the lock-off button to the right.
Controlling the Stroke Rate
The stroke rate is variably adjustable by the pressure applied to the on/off switch. Light pressure results in a low stroke rate, while increasing pressure increases the rate.
Working Advice
Plunge Cutting
Plunge cuts may only be applied to soft materials like wood or gypsum board. Do not plunge cut metal. Use short saw blades for this operation. Place the base plate on the workpiece, switch on the tool, and allow the blade to plunge slowly into the material.
Flush Sawing
Using elastic bi-metal saw blades, you can cut protruding components (like water pipes) directly at the wall. Ensure the blade is longer than the diameter of the workpiece to avoid kickback. Bend the blade slightly by applying lateral pressure to the tool until the base plate is flush with the wall.
Maintenance and Service
Always keep the tool and ventilation slots clean for safe operation. Clean the saw blade receptacle regularly with a soft cloth or brush. If the tool becomes very dirty, it may lead to faults; avoid cutting materials that generate large quantities of dust from below or overhead.
Manufacturer information
Bosch
Practical help
Common problems
Saw blade jams
Switch off the tool immediately. Widen the sawing gap slightly with a suitable tool and pull the tool out.
Tool overheats during low stroke rate use
Remove the saw blade and run the tool at maximum stroke rate for about 3 minutes to cool down.
Before use
- Ensure the battery is fully charged.
- Check the workpiece for foreign objects like nails or screws.
- Select the appropriate saw blade for the material.
- Wear protective gloves when handling blades.
- Ensure the base plate is resting on the workpiece while sawing.
Specs in practice
- Rated voltage
- 18V DC power supply.
- No-load stroke rate
- 0–3050 strokes per minute.
- Max. cutting depth (wood)
- 200 mm.

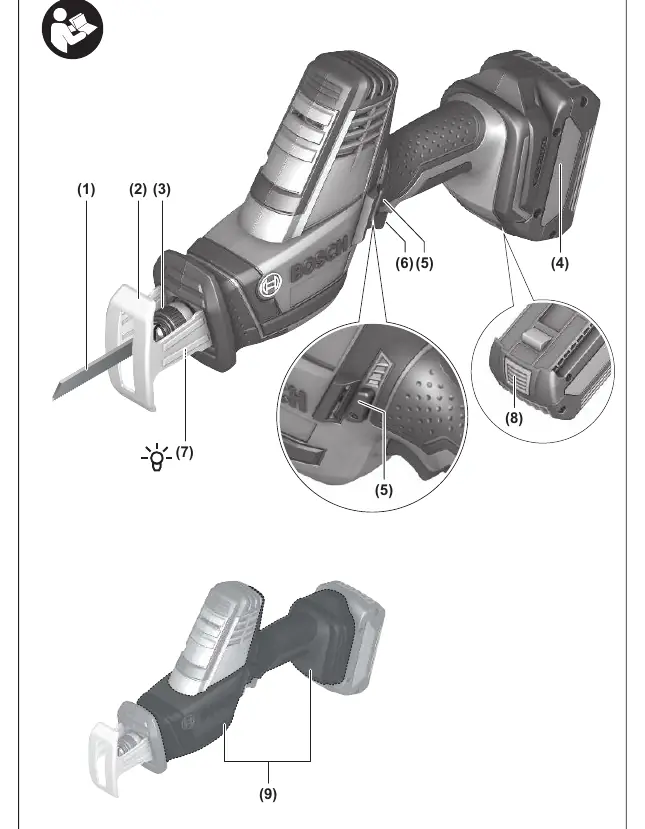

Images and diagrams
- (2) Base plate
- (3) Locking sleeve for saw blade
- (5) Lock-off button
- (6) On/off switch
Model compatibility
- Use only 1/2" universal shank saw blades.
- Use only Bosch designated battery packs and chargers.
