Bosch GOP 18V-34 Professional Cordless Multi-Cutter User Manual
Quick guide for the Bosch GOP 18V-34 Professional cordless multi-cutter. Includes setup, tool changing, operation, and maintenance instructions.
Quick answers from the manual
Quick answer
- The GOP 18V-34 is a cordless multi-cutter designed for sawing, cutting, sanding, and scraping. It uses Starlock accessories. p. 18
Key actions
- Change accessory p. 20
- Insert battery p. 19
First start
- Charge the battery fully before first use. p. 19
Problems and fixes
Tool shuts down automatically
Battery is flat or overheated. Charge or cool down.
p. 24Maintenance and reset
- Keep ventilation slots clean. p. 25
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated voltage | 18 V | Battery voltage | p. 18 |
Where to find it in the PDF
- Safety Instructions p. 16, 17
- Product Features p. 18
- Technical Data p. 18, 19
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bosch GOP 18V-34 Professional is a cordless multi-cutter designed for sawing, cutting, sanding, and scraping various materials including wood, plastic, plasterboard, and non-ferrous metals. This guide provides essential information for safe and efficient operation.
Product Features
Key components include the handle, on/off switch, battery, orbital stroke rate preselection thumbwheel, Starlock lever for tool unlocking, tool holder, and worklight. Various accessories are available for different applications.
Assembly and Tool Change
Important: Always remove the battery before performing any work on the tool (maintenance, tool change, etc.) or during transport and storage.
- Changing the tool: Open the Starlock lever (7) all the way to eject the accessory. Position the new accessory on the tool holder (8) and press it firmly until it locks automatically.
- Depth stop: Can be used with segment and plunge cut saw blades. Slide it over the tool holder onto the collar of the power tool and lock it in the desired position.
- Dust extraction: Always connect a dust extraction system when sanding. Attach the dust extraction system (13 or 14) over the tool holder and secure it with the clamping lever (17).
Operation
Switching on/off: Slide the on/off switch (2) forward to switch on the worklight. Slide it further forward to position "I" to switch on the power tool. Slide it backward to position "0" to switch off.
Preselecting the orbital stroke rate: Use the thumbwheel (6) to adjust the stroke rate even during operation. Use level "6" for sawing wood and level "4" for sanding or sawing plastic and metal.
Working Advice
- Sawing: Use only undamaged, perfect saw blades. Plunge cuts should only be applied to soft materials like wood or gypsum board.
- Sanding: Material removal rate depends on the sanding sheet, stroke rate, and contact pressure. Apply consistent pressure.
- Scraping: Select a high orbital stroke rate. Work on soft surfaces at a flat angle with low pressure.
Maintenance
Keep the power tool and ventilation slots clean for safe operation. Regularly clean Riff accessories with a wire brush.
Manufacturer information
Bosch
Practical help
Common problems
Tool stops automatically
Battery is flat or overheated. Charge the battery or let it cool down before switching on again.
Excessive vibration or noise
Check if the tool is poorly maintained or if the wrong accessory is being used.
Accessory jams
Reduce contact pressure and move the tool back and forth during operation.
Before use
- Ensure the battery is fully charged.
- Select the appropriate accessory for the material.
- Check that the accessory is securely locked in the tool holder.
- Connect a dust extraction system if performing sanding tasks.
- Ensure the ventilation slots are not blocked.
Specs in practice
- Oscillation angle
- The angle of oscillation to the left/right (1.7°), enabling precise work in tight spaces.
- No-load speed
- The speed range (10000–20000 min-1) which can be adjusted for different materials.
Images and diagrams

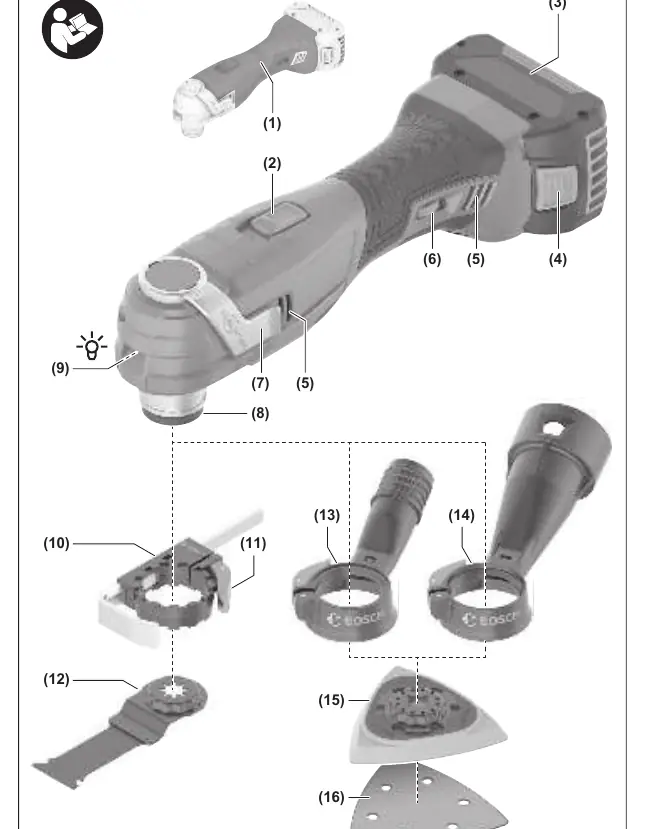

- Page 3 shows the tool components including the Starlock lever and tool holder.

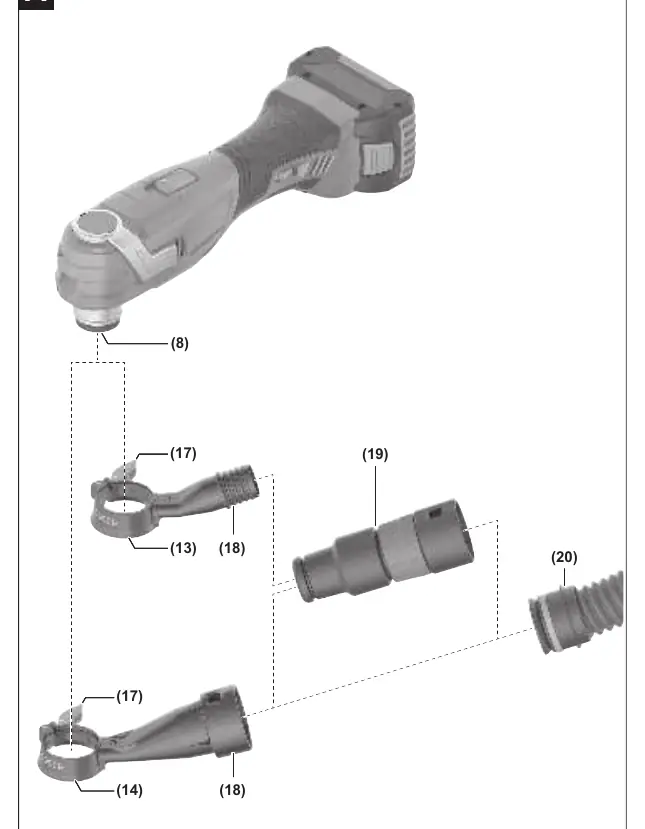

- Page 4 shows the dust extraction system assembly.
Model compatibility
- The tool must only be operated using Bosch accessories.
