User Manual for Bosch EasyDrill 18V-38 / EasyImpact 18V-38 Cordless Drill
Quick guide for the Bosch EasyDrill 18V-38 and EasyImpact 18V-38 cordless drills, covering setup, operation, tool changes, and maintenance.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential operating instructions for the Bosch EasyDrill 18V-38 and EasyImpact 18V-38 cordless drills. Key tasks include battery installation, tool changing, and mode selection. Always ensure the battery is removed before performing maintenance or changing tools to prevent accidental activation.
Device Description

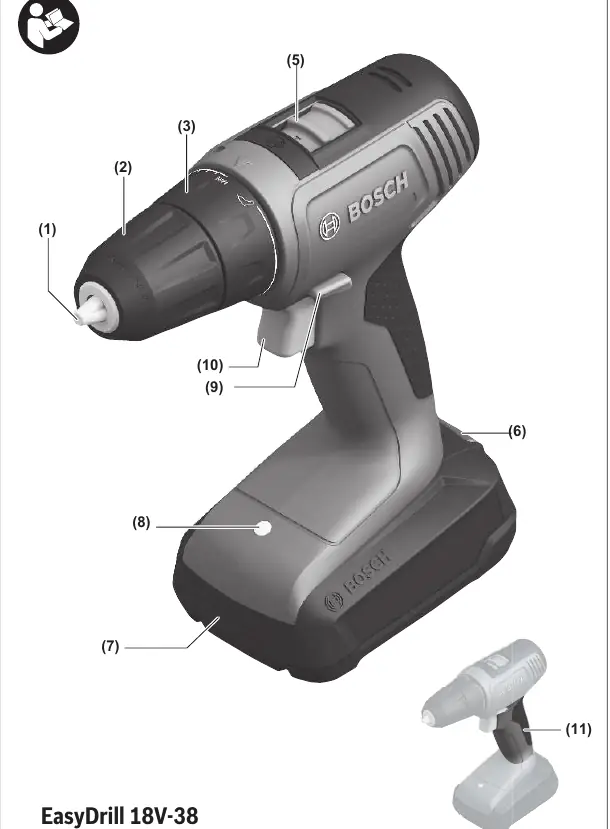

The drills feature a keyless chuck, torque presetting ring, and a gear selector. The EasyImpact 18V-38 model includes an additional operating mode ring for impact drilling in brick.
Operation
Rotational Direction: Use the switch (9) to change direction. Right rotation for drilling/screwing; left rotation for loosening screws. This cannot be changed while the on/off switch (10) is pressed.
Speed/Impact Adjustment: Speed is controlled by the pressure applied to the on/off switch (10). Light pressure results in low speed/impact rate; increased pressure increases the speed/impact rate.
Torque Preselection: Use the ring (3) to select the required torque in 20 stages. The tool stops when the screw is flush or the set torque is reached.
Maintenance and Cleaning
Always remove the battery before transport, storage, or maintenance. Keep the tool and ventilation slots clean for safe and efficient operation.
Manufacturer information
Bosch
Practical help
Common problems
Tool stops during operation
The tool may be overloaded or the battery temperature is too high. The electronics will switch off the tool until it returns to the optimal operating temperature.
Drill bit bends or breaks
Ensure you are not applying excessive pressure and that you are drilling in a straight line with the bit.
Before use
- Ensure the battery is fully charged before first use.
- Check that the rotational direction switch is set correctly.
- Ensure the correct gear (I or II) is selected for the task.
- Verify the torque setting is appropriate for the screw size.
- Ensure the drill bit is securely tightened in the keyless chuck.
Specs in practice
- Rated voltage
- 18V, indicating the battery system compatibility.
- No-load speed (1st/2nd gear)
- 0-430 min-1 / 0-1630 min-1, determining the drilling/screwing speed range.
Images and diagrams

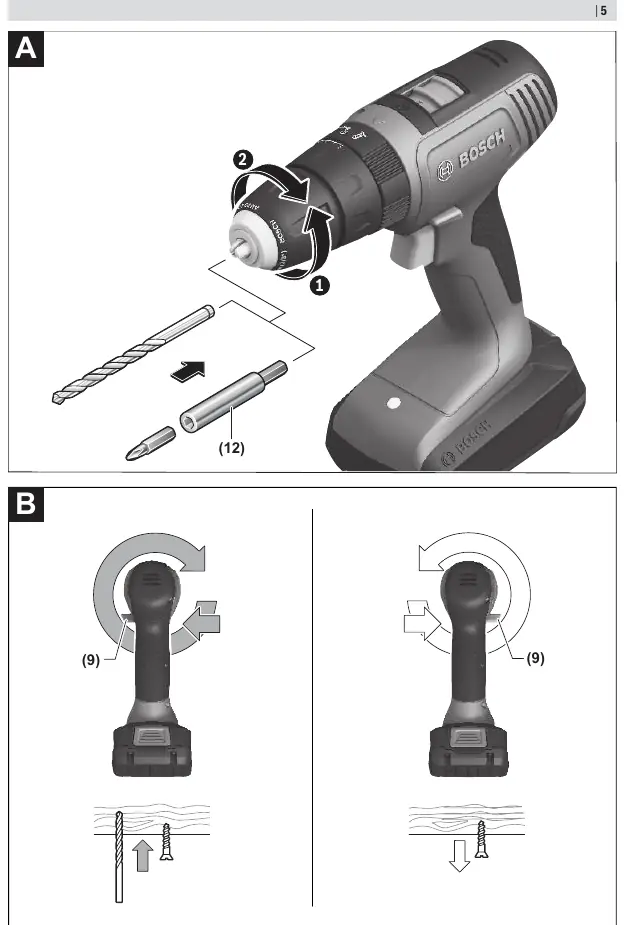

- Figure A: Shows the procedure for opening the keyless chuck (1) and tightening it (2) to secure the tool.
- Figure B: Illustrates the rotational direction switch (9) for drilling/screwing (left) and loosening (right).
Model compatibility
- Compatible with Bosch PBA 18V...W- batteries.
- Not compatible with AL 1814 CV, AL 1820 CV, AL 1860 CV, or AL 2215 CV chargers.
