Bosch GDS 18V-350 Impact Wrench Spare Parts Guide
A comprehensive spare parts guide for the Bosch GDS 18V-350 impact wrench, featuring detailed exploded-view diagrams and a complete list of components for maintenance and repair.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as an official spare parts list and exploded-view reference for the Bosch GDS 18V-350 impact wrench (3 601 JM5 020). It is intended for identifying internal components, housing parts, and compatible accessories such as batteries and chargers. Use this guide to locate specific part numbers for maintenance or repair purposes.
Device components and exploded view
The manual provides a detailed breakdown of the tool's internal structure. Key components identified in the exploded view include:
- Housing and structural parts: Main housing (801), gear housing (58, 858), and end cap (40).
- Drive mechanism: Striker (827), planet gears (33), ring gear (34), and rotator (802).
- Electrical and control: Stator (3), switch (4), PCB (45), and adjusting lever (41).
- Fasteners and seals: Various pan head screws (19, 53), O-rings (23, 24, 38), and retaining rings (22).
Compatible accessories
The guide lists compatible power components for the GDS 18V-350:
- Battery Packs: Various models including 1 607 A35 0V9, 1 617 S02 0T1, and 1 617 S02 0T2.
- Fast Chargers: Multiple charger variants are listed, including standard and regional versions (e.g., GAL 18V-40, UK GAL 18V-20, CN GAL 18V-40).
Maintenance and repair
The exploded view diagrams illustrate the assembly sequence of the tool. When performing maintenance, ensure all O-rings and washers are correctly seated. Note that specific torque values for screws (Pos. 19 and 53) are referenced in the diagram for proper reassembly.
Manufacturer information
Bosch
Practical help
Before use
- Verify the tool model number (3 601 JM5 020) matches your device.
- Ensure the battery pack is compatible with the GDS 18V-350.
- Check that the correct charger is used for your region.
- Inspect the housing and external clips for damage before operation.
Specs in practice
- 3 601 JM5 020
- Official Bosch product identification number for this specific impact wrench model.
Images and diagrams

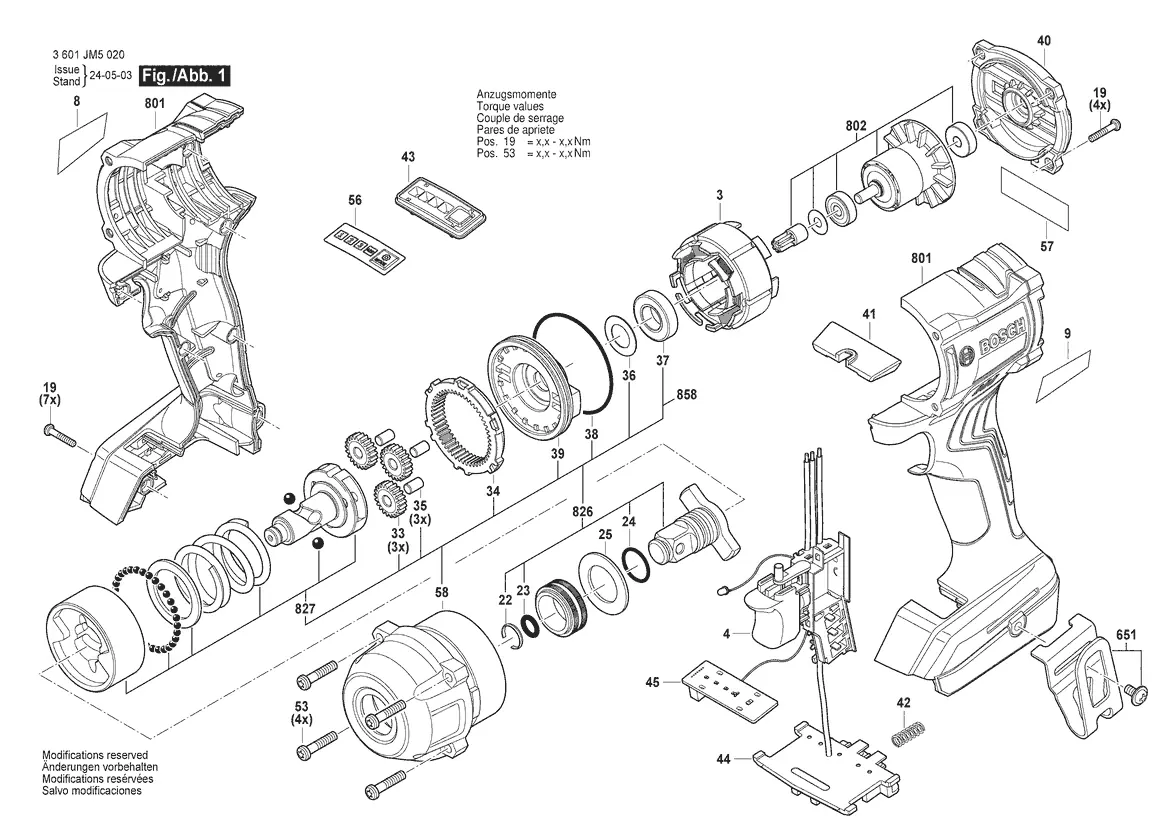

- Figure 1 provides an exploded view of the internal mechanical and electrical components.

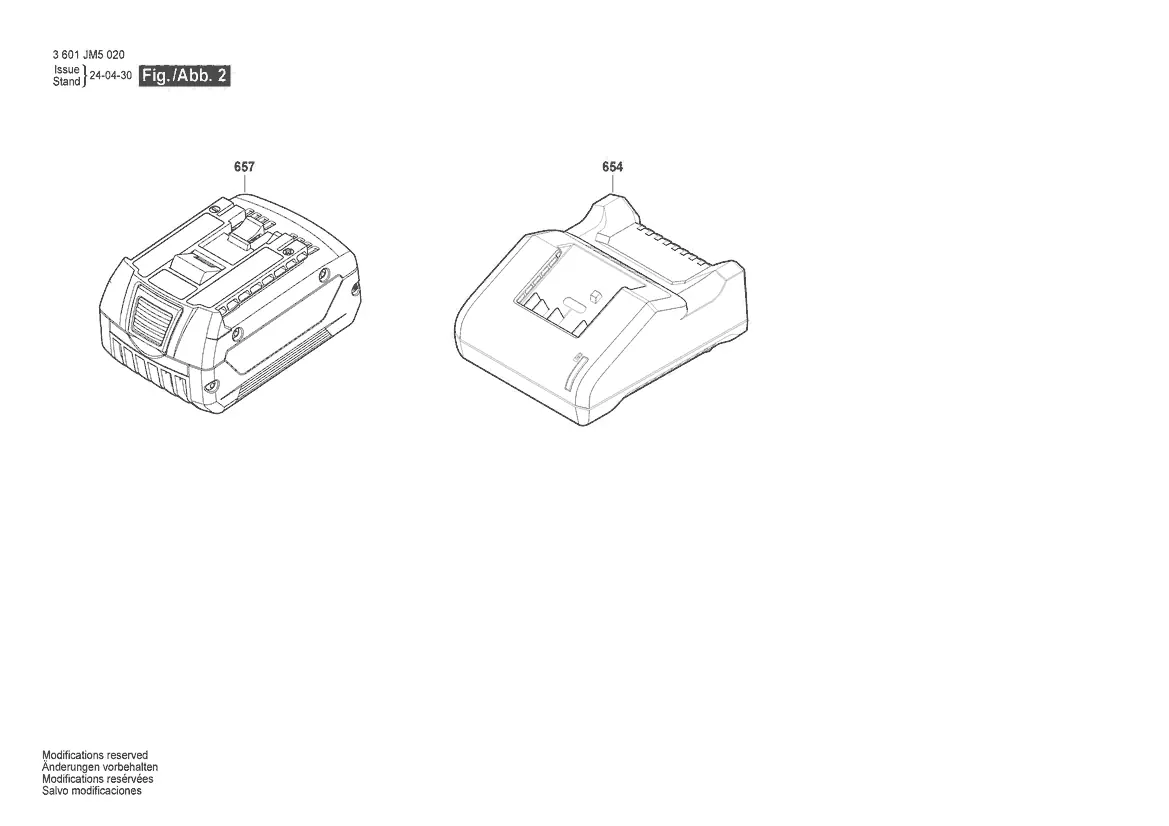

- Figure 2 illustrates the compatible battery packs and fast charger units.
Model compatibility
- Chargers are region-specific (e.g., UK, CN, IND versions).
- Only use battery packs listed in the spare parts section to ensure safe operation.
