User Manual for Bosch GKE 18V-25 TP Cordless Pole Pruner
Quick guide for the Bosch GKE 18V-25 TP cordless pole pruner. Includes assembly, operation, maintenance, and troubleshooting steps.
Quick answers from the manual
Quick answer
- This manual provides instructions for the assembly, safe operation, and maintenance of the Bosch GKE 18V-25 TP cordless telescopic pruner. p. 17, 20, 21, 22
Key actions
- Assemble the pruner head and telescopic handle p. 32
- Adjust the telescopic height p. 32
- Mount the chain bar and tension the saw chain p. 32
- Fill the oil reservoir p. 33
First start
- Unpack the product and check for completeness p. 29
- Assemble the pruner p. 32
- Mount the chain bar and chain p. 32
- Fill the oil reservoir p. 33
- Insert the battery p. 31
Problems and fixes
Saw chain dry
Refill oil (article number: F 016 800 642) or clean oil passage.
p. 34
Saw chain/guide bar hot
Refill oil, clean oil filler cap vent, clean oil passage, adjust chain tension, sharpen or replace chain.
p. 34
Pole pruner rips, vibrates, does not saw properly
Adjust chain tension, sharpen or replace chain, replace chain, check chain teeth direction, reduce force.
p. 34Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated voltage | 18 V | Operating voltage of the tool | p. 30 |
| Chain speed (no-load) | 7.7 m/s | Speed of the saw chain without load | p. 30 |
| Chain bar length | 25 cm | Length of the guide bar | p. 30 |
| Oil reservoir capacity | 80 ml | Capacity of the oil tank | p. 30 |
| Weight (without battery) | 5.1 kg | Weight of the tool without battery | p. 30 |
Where to find it in the PDF
- Title and Language List p. 1, 2
- Diagrams p. 3, 4, 5, 6
- Portuguese p. 62, 63, 64, 65
- Norwegian p. 121, 122, 123, 124
- Hungarian p. 205, 206, 207, 208
- Ukrainian p. 232, 233, 234, 235
- Romanian p. 261, 262, 263, 264
- Bulgarian p. 273, 274, 275, 276
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential information for the safe and efficient operation of the Bosch GKE 18V-25 TP cordless pole pruner. Always read the full safety instructions before use.
Safety Information
- Always wear personal protective equipment (PPE), including eye, ear, and head protection.
- Wear safety gloves when handling the chain.
- Disconnect the battery before performing any maintenance or cleaning.
- Do not operate the pole pruner near electrical power lines.
- Always hold the pole pruner with both hands.
- Do not use the pole pruner on a ladder or unstable surface.
Product Description
The pole pruner is designed for pruning trees at elevated heights while the user stands on the ground. Key components include the drive sprocket, chain tensioning screw, chain bar, saw chain, oil filler cap, and telescopic tube.
Assembly
Pole Pruner Assembly
- Connect the pole pruner head and the telescopic handle until the locking button clicks. Secure by tightening the wing bolt.
- Attach the shoulder strap hooks to the strap loops on the handles. Ensure the larger hook is on the rear handle and the smaller hook is on the front handle.
Mounting the Chain Bar and Tensioning the Saw Chain
- Place the pole pruner head on a level surface with the cover facing upwards.
- Remove the cover by unscrewing the fastening nut.
- Attach the saw chain to the chain bar, ensuring the teeth are in the correct direction.
- Fit the chain around the drive sprocket and slide the chain bar over the fastening bolts.
- Replace the cover and tighten the fastening nut slightly.
- Use the assembly tool to turn the chain tensioning screw until the chain is tensioned. The correct tension is achieved when the chain can be lifted approx. 3-4 mm from the chain bar.
- Tighten the fastening nut securely.
Operation
Filling the Oil Reservoir
The pole pruner is not supplied filled with oil. It is essential to fill it with Bosch biodegradable chain saw oil before use. Operating without oil will damage the chain bar and saw chain.
Switching On and Off
To switch on, slide the lock-off button forward, place your palm on the user presence switch, and press the On/Off switch. Keep both pressed during operation. To switch off, release both switches.
Maintenance
- Keep the tool and ventilation slots clean.
- Clean the chain bar and saw chain before storing the product for an extended period.
- Inspect the saw chain for damage and replace or sharpen it if necessary.
- Empty the oil reservoir before storing the tool.
Troubleshooting
If the saw chain is dry, check the oil reservoir and oil passage. If the chain or guide bar becomes hot, check the oil level and the oil passage. If the tool stops during sawing, check for overload or battery temperature issues.
Manufacturer information
Bosch
Practical help
Common problems
Saw chain is dry
Refill oil reservoir (Part number: F 016 800 642) or clean the oil passage.
Saw chain or guide bar becomes hot
Refill oil reservoir, clean the oil filler cap vent, or clean the oil passage.
Pole pruner stops suddenly during sawing
Check for overload protection or battery thermal protection. Allow battery to cool down.
Before use
- Check tool and saw chain condition.
- Check oil level.
- Ensure correct assembly.
- Wear suitable clothing and personal protective equipment.
- Ensure the environment is dry and free from obstacles.
Specs in practice
- Chain speed (no-load)
- 7.7 m/s
- Chain bar length
- 25 cm
- Max. cutting diameter
- 23 cm
- Oil reservoir capacity
- 80 ml
Images and diagrams

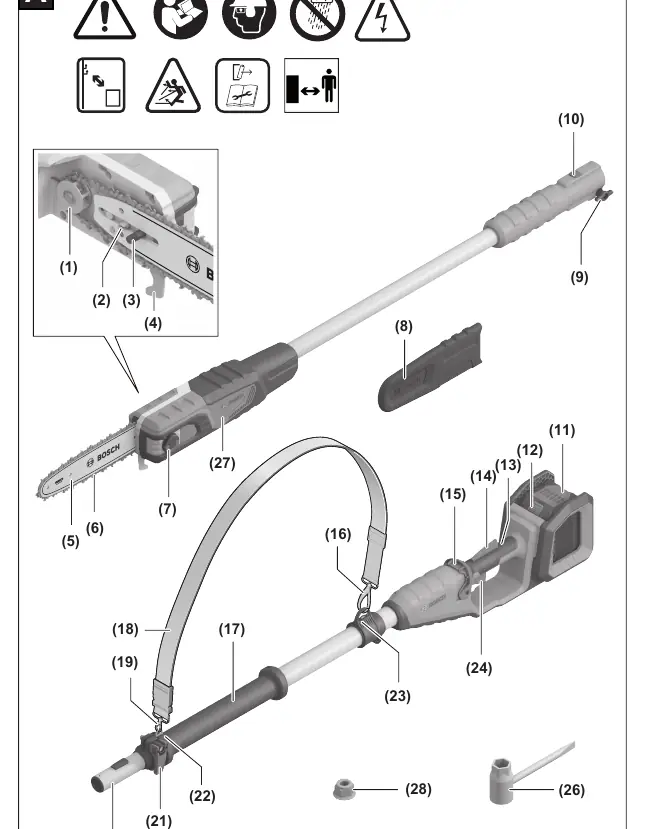

- Page 3 (A) shows the main components of the pole pruner.

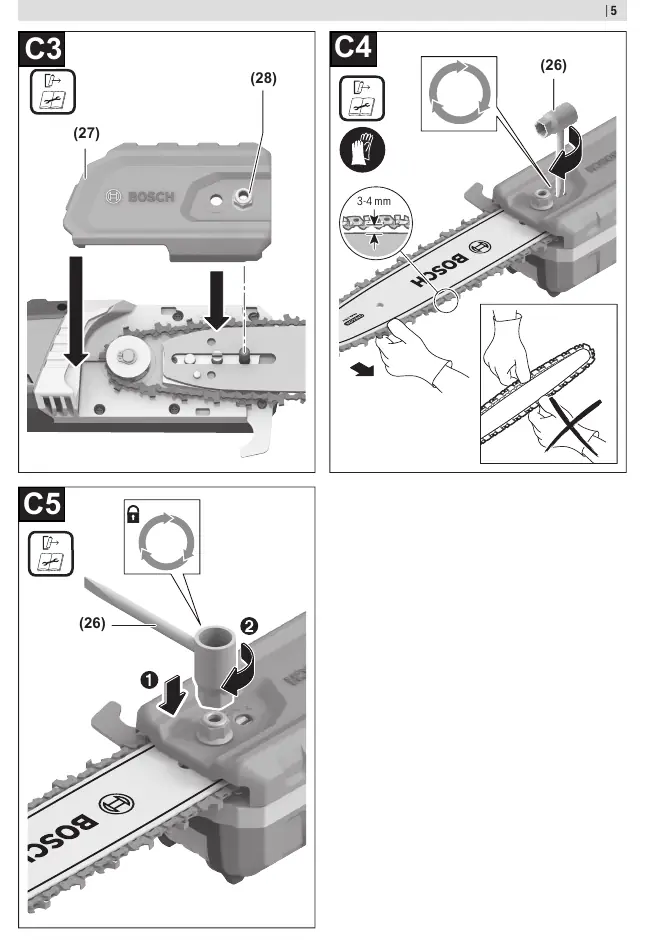

- Pages 4-5 (C1-C5) detail the mounting and tensioning of the saw chain.

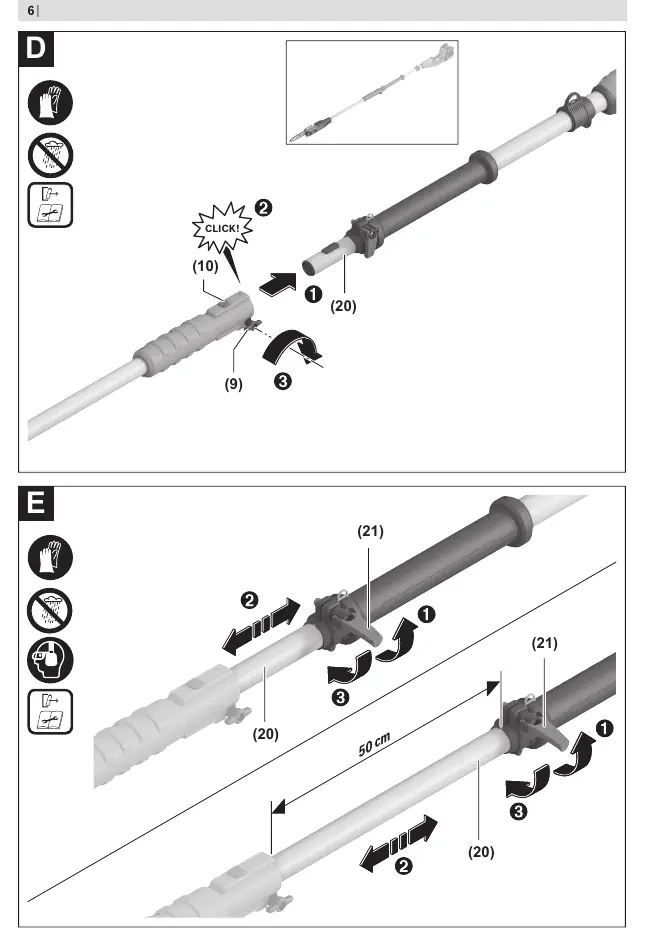

- Page 6 (D, E) illustrates the assembly of the pole pruner and height adjustment.

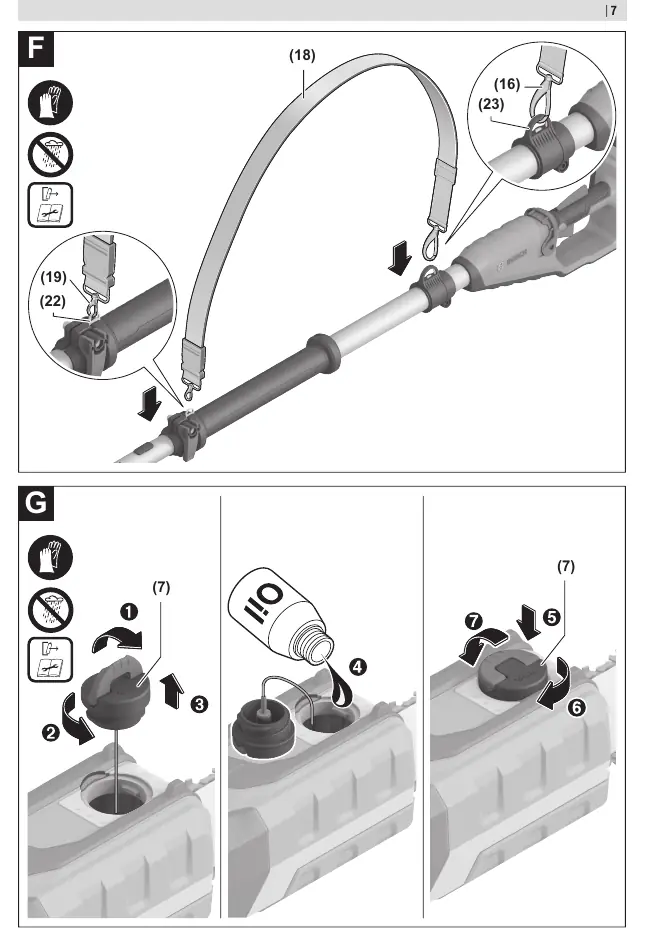

- Page 7 (F, G) shows how to attach the shoulder strap and fill the oil reservoir.

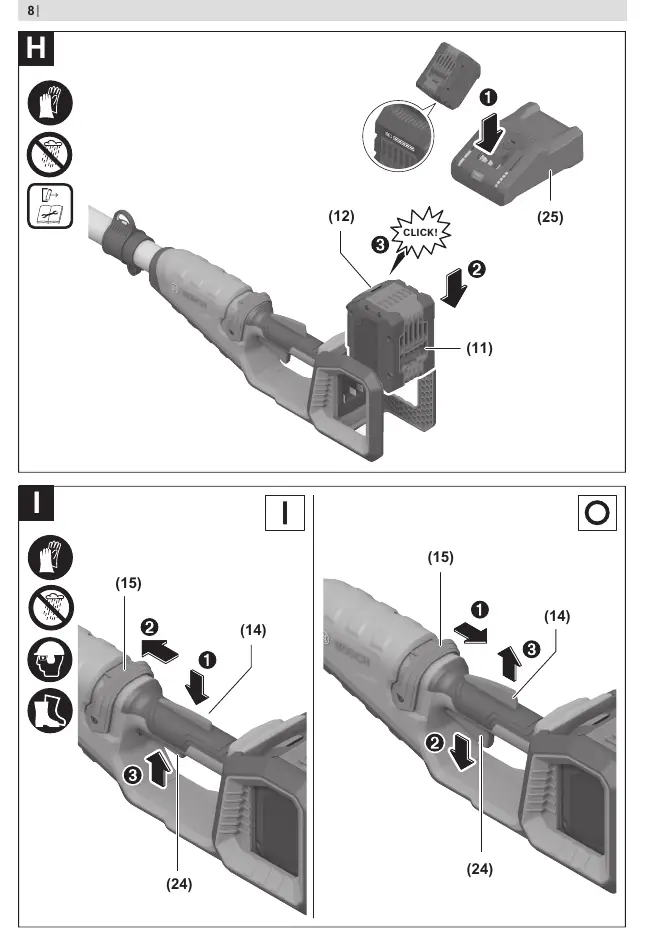

- Page 8 (H, I) demonstrates battery insertion and the switching mechanism.
Model compatibility
- Compatible with GBA 18V and ProCORE18V batteries.
- Recommended batteries: ProCORE18V >= 5.5Ah.
