User Manual for Caliber RMD 052DAB-BT Car Radio
Quick guide for the Caliber RMD 052DAB-BT car radio, covering installation, wiring, Bluetooth pairing, and operation instructions.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation and operation of the Caliber RMD 052DAB-BT car radio. Key procedures include the installation of the active DAB+ antenna, proper wiring of the ISO connectors, and Bluetooth pairing for hands-free calling and audio streaming. Always ensure the vehicle's ignition is off during installation and follow safety precautions regarding volume levels and driving distraction.
DAB Antenna Installation
The active DAB+ antenna is powered through the core of the antenna wire (+5V), requiring no separate power source. Follow these steps:
- Remove the cover of the A-post in your vehicle.
- Stick the transparent part of the antenna onto the windshield near the A-post.
- Attach the black part of the antenna to the metal frame of the car.
- Connect the male SMA connector to the radio unit.
Wiring Diagram
The unit uses standard ISO connectors. Ensure all connections are secure:
- Connector A: Includes Memory +12V (yellow), Remote +12V output (blue), +12V ignition (red), and Ground (black).
- Connector B: Dedicated to speaker outputs (Front Left/Right, Rear Left/Right).
- RCA Outputs: Provides Front Left/Right and Rear Left/Right RCA outputs.
- Fuse: The unit is protected by a 10A fuse.
Bluetooth Operation
To pair your mobile device:
- Press the MODE button to select Bluetooth mode.
- Activate Bluetooth on your phone and search for available devices.
- Select RMD052DAB-BT_CALIBER from the list.
- Enter the password 0000 if prompted.
- Upon successful connection, the display will show BT ON. If it fails, it will show NO CON.
General Operation and Settings

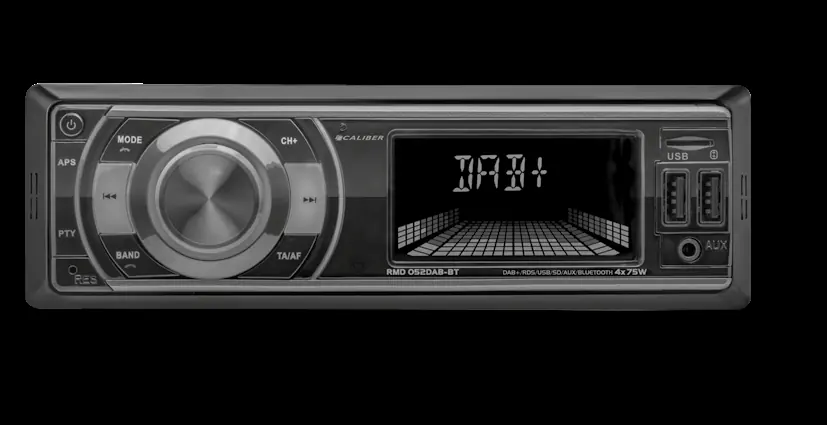

The unit features a multi-functional rotary knob for volume and menu navigation. Use the MODE button to switch between sources (Tuner, USB, SD, Bluetooth, AUX). The Audio Menu allows for adjustments to Bass, Treble, Balance, Fader, Loudness, EQ, DX/LOCAL, and Stereo/Mono settings. To reset the unit to factory defaults, use a non-metallic pointed object to press and hold the reset button for 5 seconds.
Safety and Maintenance
- Use only in vehicles with a 12V negative ground system.
- Do not disassemble or modify the unit.
- Keep small objects like screws away from children.
- Clean the unit with a soft, dry cloth. Do not use water or harsh chemicals.
- Ensure the vehicle interior temperature is between 0°C and +45°C before operation.
Manufacturer information
Caliber Europe
Practical help
Common problems
Bluetooth connection fails (NO CON)
Ensure Bluetooth is enabled on your phone and the device is in range. Try re-pairing by selecting the unit again in your phone's Bluetooth settings.
Unit settings are lost
Check the wiring of the yellow memory wire (+12V) to ensure it maintains constant power even when the ignition is off.
DAB+ reception is poor
Verify that the antenna is correctly mounted on the windshield and the black part is making good contact with the metal car frame.
Before use
- Ensure the vehicle has a 12V negative ground electrical system.
- Verify the 10A fuse is intact.
- Confirm the DAB+ antenna is mounted on the windshield near the A-post.
- Check that all speaker wires are correctly connected to Connector B.
- Ensure the temperature inside the vehicle is between 0°C and +45°C.
Specs in practice
- Power supply
- 12V DC, negative ground.
- Max power output
- 75W x 4 channels.
- DAB+ Frequency range
- 174 ~ 240MHz.
- USB/SD capacity
- Supports up to 32GB storage devices.
Images and diagrams
- Connector A: Power and control connections (Memory, Remote, Ignition, Ground).
- Connector B: Speaker output connections for all four channels.
- RCA Outputs: Dedicated outputs for external amplifiers (Front/Rear L/R).
- SMA Connector: Dedicated input for the active DAB+ antenna.
Model compatibility
- Compatible with USB sticks and Micro SD cards up to 32GB.
- Designed exclusively for 12V mobile applications.
- Requires active DAB+ antenna (powered via antenna wire).
