User Manual for Carrier 15T Packaged Rooftop Unit
Comprehensive technical guide and submittal documentation for the Carrier 15T Packaged Rooftop Unit. Includes detailed performance specifications, installation requirements, control system features, and maintenance guidelines.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document serves as the submittal and technical specification guide for the Carrier 15T Packaged Rooftop Unit. It provides essential data for installation, configuration, and operation. Key highlights include the use of R-454B refrigerant, EcoBlue Vane Axial fan technology, and advanced SystemVu controls. Ensure all electrical and gas connections comply with local codes and the manufacturer's specifications provided in this guide.
Unit Overview
The Carrier 15T is a single-packaged electric cooling and gas heating rooftop unit. It is designed for high efficiency and reliability, featuring tandem scroll compressors and two-stage cooling capacity control. The unit is factory-tested and pre-wired for streamlined installation.
Installation and Connections
Proper installation is critical for unit performance and safety:
- Rigging: Use shipping top panels or spreader bars for crane lifting. Ensure the unit remains in an upright position.
- Gas Connections: All gas piping must enter the unit cabinet at the designated side location. Thru-the-base connections are available using factory-approved methods.
- Electrical Connections: Power wiring must enter through the factory-prepared knockout. Ensure the voltage, phase, and frequency match the unit's requirements.
- Ductwork: Units are factory-configured for vertical supply and return. Field conversion to horizontal airflow is possible; size 16 models require a specific Supply Duct Kit.
Control Systems
The unit features advanced control options:
- SystemVu Controller: Provides integrated operation, diagnostics, and alarms. It includes a backlit display with navigation keys for easy access to settings, status, and service reports.
- Thermostats: Compatible with conventional thermostats that can energize 'W' and 'G' for heat and support 2-stage cooling/heating.
- Economizer: Integrated economizer options (EconomizerONE/EconoMi$er 2) allow for free cooling using outdoor air when conditions are suitable.
Maintenance and Service
Regular maintenance ensures longevity:
- Filters: The unit uses 2-inch disposable fiberglass filters. Access is provided via a tool-less panel.
- Access Panels: Major components (filter, control box, fan motor, compressor) are accessible via panels with easy-grip handles.
- Diagnostics: The Integrated Gas Controller (IGC) and SystemVu controller provide LED flash codes and alarm history to assist in troubleshooting.
- Condensate Management: A condensate overflow switch monitors the drain pan and disables the compressor if overflow conditions are detected.
Technical Specifications
The unit is rated in accordance with AHRI Standards 340/360. It features a high-static EcoBlue Vane Axial fan, which eliminates the need for belts, pulleys, and sheaves. The unit is designed to operate in ambient temperatures up to 125°F (52°C) and down to 40°F (4°C) with standard controls (lower temperatures require a winter start kit).
Manufacturer information
Carrier Global Corporation
Practical help
Common problems
Condensate overflow
The condensate overflow switch monitors the drain pan. If water contact exceeds 10 seconds, it disables the compressor to prevent damage.
Phase reversal
The unit includes reverse rotation protection. Ensure 3-phase wiring is correctly applied to avoid compressor damage.
Cooling failure in low ambient temperatures
Standard operation is down to 40°F (4°C). For operation below this temperature, a winter start kit is required.
Before use
- Verify that the power supply voltage, phase, and frequency match the unit's nameplate requirements.
- Ensure the unit is installed in an upright position.
- Confirm that gas piping enters the unit at the designated side location.
- Check that the duct configuration (vertical or horizontal) matches the site requirements.
- Ensure all access panels are securely closed and handles are engaged.
Images and diagrams

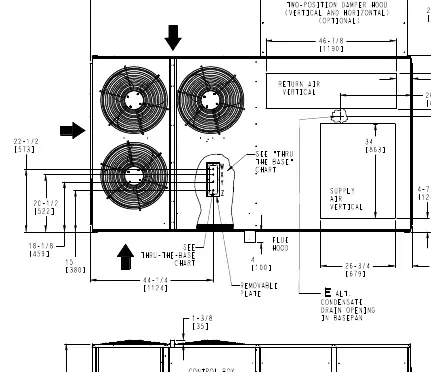

- Certified drawings provide precise dimensions for the unit, including gas and electrical connection points.
- Acoustics diagrams illustrate sound power levels at different octave band frequencies to assist in site planning.
Model compatibility
- Compatible with Carrier i-Vu, BACnet, and Carrier Comfort Network (CCN) building automation systems.
- Field conversion from vertical to horizontal airflow requires a specific Supply Duct Kit for size 16 models.
