This document provides an overview of the Carrier 19XR/XRV single-stage centrifugal liquid chillers. It is intended for operators and maintenance personnel to understand the system's capabilities, control interface, and diagnostic features. The chiller is designed for high-capacity water cooling applications ranging from 1000 to 3000 kW.
Device Description
The 19XR/XRV series features a hermetic single-stage centrifugal compressor with aerodynamic impellers and tunnel diffusers. The system is optimized for non-chlorinated refrigerants (R-134a or R-513A) and utilizes high-efficiency evaporator and condenser tubes.
SmartVu Control System
The chiller is equipped with the Carrier SmartVu control system, featuring a 10-inch color touchscreen interface. Key capabilities include:
- Real-time monitoring of operating parameters.
- Intelligent pre-start checks (oil temperature, condensation pressure, bearing temperature, etc.).
- Dynamic regulation algorithms for efficient operation.
- Comprehensive protection against surges, overcurrent, and overheating.
- Password-protected settings to prevent unauthorized changes.
Intelligent Diagnostics
The system includes advanced diagnostic tools accessible via the touchscreen. It logs fault codes, provides maintenance alerts (e.g., oil and filter replacement), and can automatically send email notifications to maintenance personnel if connected to the internet.
Connectivity and Automation
The control panel supports BACnet and Modbus protocols for easy integration into building automation systems. Optional i-Vu Link modules allow for centralized management and remote access via web browsers or mobile devices.
Carrier ABOUND Platform
The system supports the Carrier ABOUND IoT platform, which provides continuous cloud-based monitoring, performance analytics, and remote diagnostic capabilities, allowing service technicians to arrive on-site with pre-notified information.
Physical Specifications
The chillers are available in various chassis sizes (3, 4, and 5). Dimensions range from approximately 4230mm to 4980mm in length, with operating weights varying between 7200kg and 12160kg depending on the configuration.
Manufacturer information
Carrier Global Corporation
Practical help
Common problems
System alarm triggered
Check the alarm menu on the SmartVu touchscreen for the associated error code. Contact Carrier Service for detailed diagnostic and clearing procedures.
Maintenance required
The pre-diagnostic function will display alerts for routine maintenance tasks such as oil or filter replacement.
Before use
- Verify that the oil temperature is within normal operating range.
- Check condensation pressure levels.
- Ensure bearing and motor winding temperatures are normal.
- Confirm that the evaporator saturated temperature is within limits.
- Verify that the supply voltage is stable and normal.
Specs in practice
- Nominal Cooling Capacity
- 1000-3000 kW, defining the power range of the chiller unit.
- Operating Pressure
- Water heat exchangers are certified for up to 21 bar.
Images and diagrams

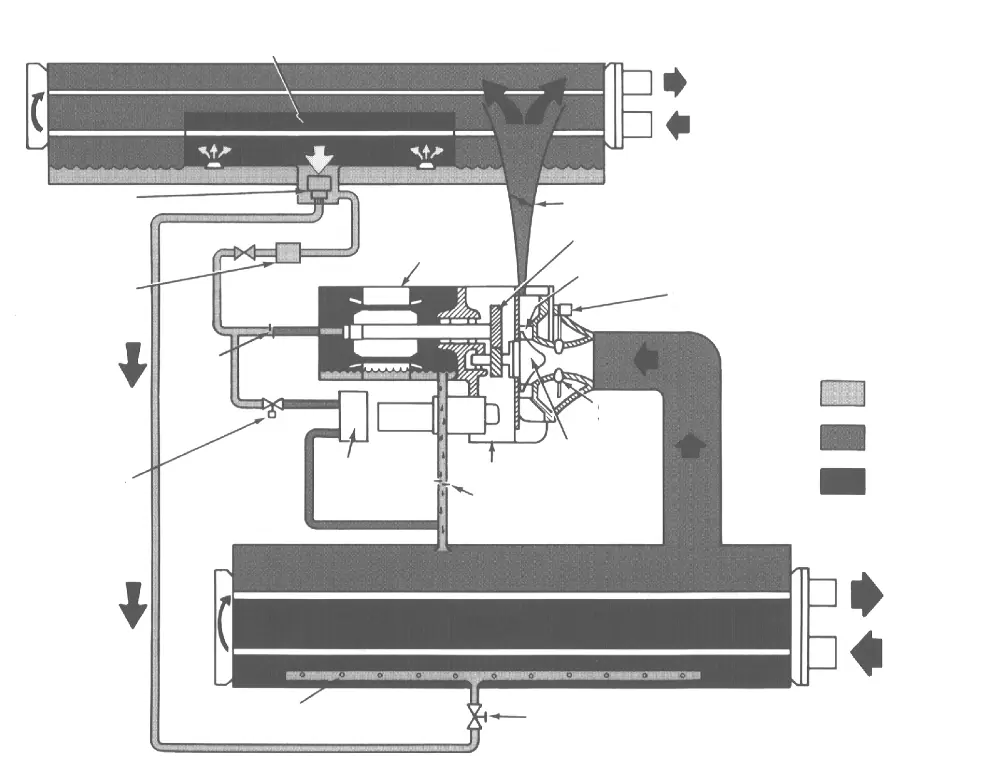

- The refrigeration cycle diagram illustrates the flow of refrigerant through the compressor, condenser, and evaporator, highlighting the role of the expansion valve and oil management system.
Model compatibility
- Supports BACnet and Modbus communication protocols.
- Compatible with i-Vu and WebCTRL building automation systems.
- High-voltage motor options available: 3000V, 3300V, 5500V, 6300V, 10kV, 11kV (50/60 Hz).
