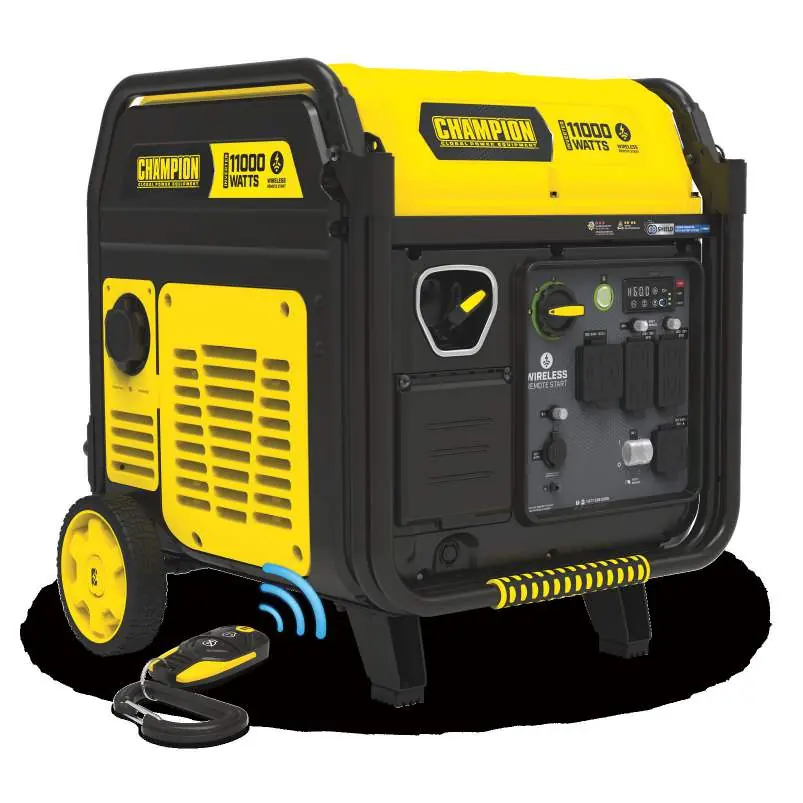

Operator's Manual for Champion 11,000W Wireless Remote Start Inverter Generator (Model 201407)
Quick guide for the Champion 11,000W Wireless Remote Start Inverter Generator (Model 201407), covering assembly, safe operation, CO Shield system, maintenance, and troubleshooting.
Table of contents
Quick guide from the manual
This document provides essential instructions for the safe operation and maintenance of the Champion 11,000W Wireless Remote Start Inverter Generator (Model 201407). Crucial safety warning: Always operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents to prevent carbon monoxide poisoning. Never use it indoors, even if doors or windows are open.
Assembly
The generator requires initial assembly:
- Support Leg: Attach to the frame using the provided flange bolts.
- Wheels: Slide wheels onto the axle, secure with washers and bolts, and attach hub caps.
- Battery: Remove the access cover and connect the two halves of the battery connector.
- Oil: Add 1.2 US qt. (1100 mL) of 10W-30 oil. Do not overfill.
- Fuel: Use regular unleaded gasoline (minimum 87 octane, max 10% ethanol). Do not overfill past the red indicator.
Operation
Starting the Engine:
- Ensure the generator is on a flat, level surface.
- Turn the fuel dial to the ON position.
- Press the ignition control button once to enter standby mode.
- Wireless Start: Press the START button on the remote key fob.
- Electric Start: Press the ignition control button again.
- Manual Start: Press the CHOKE button, then pull the recoil cord. Once started, press the choke button again to set to RUN.
Stopping the Engine: Turn off and unplug all electrical loads, then press the ignition control button or the STOP button on the remote. Finally, turn the fuel dial to the OFF position.
CO Shield System
The CO Shield system monitors for carbon monoxide accumulation. If dangerous levels are detected, the generator will automatically shut off and a red LED will blink. Move the generator to an open, outdoor area and ensure exhaust is pointed away from people and buildings before attempting to restart.
Maintenance
Regular maintenance is required for optimal performance:
- Every 8 hours/before use: Check oil level and clean around air intake/muffler.
- First 5 hours: Change engine oil.
- Every 50 hours/annually: Clean air filter and change oil if operating under heavy load.
- Every 100 hours/annually: Change oil, clean/adjust spark plug, clean spark arrestor, and clean fuel valve filter.
Troubleshooting
If the generator fails to start, check for low fuel, low oil level, a loose spark plug wire, or if the fuel dial is in the OFF position. If the generator shuts down during operation, ensure it is not overloaded and that the exhaust is not obstructed or facing into the wind.
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Generator will not start
Check fuel level, ensure spark plug wire is attached, check oil level, and ensure fuel dial is set to ON.
Generator shuts down during operation
Check for low fuel, low oil, or CO Shield activation due to carbon monoxide accumulation. Ensure proper ventilation.
Generator will not start wirelessly
Ensure generator is in standby mode, remote battery is charged, and the generator battery is connected and charged.
Repeated circuit breaker tripping
Reduce electrical load and check for damaged power cords or devices.
Before use
- Check engine oil level (10W-30 recommended).
- Check gasoline level (87 octane, max 10% ethanol).
- Ensure generator is on a flat, level surface.
- Ensure generator is outdoors, away from windows, doors, and vents.
- Ensure battery connector is securely connected.
- Ensure all electrical loads are disconnected before starting.
Specs in practice
- Running Watts
- 9000W - The continuous power output the generator can provide.
- Starting Watts
- 11000W - The surge power available for starting electric motors.
- Oil Capacity
- 1.2 US qt. (1100 mL) - The amount of oil required for the engine.
- Fuel Capacity
- 6.08 gal. (23.0 L) - The maximum amount of gasoline the tank holds.
Images and diagrams
- The control panel includes the fuel dial, start-stop button, circuit breakers, and various AC/DC receptacles.
- The Intelligauge displays voltage, frequency, run time, and power output.
- The CO Shield system uses LED indicators to signal CO hazards or system faults.
Model compatibility
- Use only high-quality, insulated, grounded cord sets.
- Do not connect 3-phase loads.
- Requires a 30A transfer switch for connection to a home electrical system.
