Operator's Manual for Champion Power Equipment 1200W Portable Generator
Quick guide for the Champion Power Equipment 1200W Portable Generator (Model 201285). Includes essential safety instructions, CO Shield system operation, maintenance schedules, and troubleshooting steps.
Table of contents
Quick guide from the manual
This document provides essential operating and safety information for the Champion Power Equipment 1200W Portable Generator (Model 201285). Always read the full operator's manual before use. The generator is designed for outdoor use only. Carbon monoxide (CO) is a deadly, colorless, and odorless gas. Never operate the generator indoors, in garages, or near windows, doors, or vents.
CO Shield System
The generator is equipped with CO Shield technology that monitors for carbon monoxide accumulation. If unsafe levels are detected, the system automatically shuts off the engine and a red LED will blink. If this occurs, move the generator to an open, outdoor area and move to fresh air immediately. If the yellow LED blinks, it indicates a system fault; contact technical support.
Assembly and First Use
- Unpacking: Place the carton on a flat surface and remove the generator.
- Oil: The unit ships without oil. Use 11.8 fl. oz. (350 ml) of 10W-30 automotive oil. Check the level using the dipstick (do not screw it in while checking).
- Fuel: Use clean, fresh, regular unleaded gasoline (minimum 87 octane, max 10% ethanol). Do not overfill; leave at least 1/4 inch of space for expansion.
Starting and Stopping
Starting: Ensure the generator is on a level surface and disconnected from electrical loads. Turn the fuel valve to ON, set the engine switch to ON, move the choke to CHOKE, and pull the recoil cord. Once started, move the choke to RUN.
Stopping: Turn off and unplug all electrical loads, set the engine switch to OFF, and turn the fuel valve to OFF.
Maintenance
Regular maintenance is required for safe operation. Key tasks include:
- Every 8 hours: Check oil level and clean around air intake/muffler.
- First 5 hours: Change engine oil.
- Every 50 hours/annually: Clean air filter and change oil if operating under heavy load.
- Every 100 hours/annually: Change oil, clean/adjust spark plug, clean spark arrestor, and clean fuel valve filter.
Troubleshooting
If the engine fails to start, check for fuel, ensure the spark plug wire is attached, verify the oil level, and ensure the fuel valve and engine switch are in the correct positions. If the generator shuts down during operation, check for fuel, low oil, or CO Shield activation due to improper placement.
Contact Information
For technical support or parts, contact Champion Power Equipment at 1-877-338-0999 or visit championpowerequipment.com.
Official resources from the manual
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Engine will not start
Check fuel level, ensure spark plug wire is connected, verify oil level, and ensure fuel valve and engine switch are in the ON position.
Engine shuts down during operation
Check for low fuel, low oil, or CO Shield activation. Ensure the generator is in an open, well-ventilated area and exhaust is pointed away from buildings.
Repeated circuit breaker tripping
The generator is overloaded. Review connected electrical loads and reduce total wattage.
Before use
- Check engine oil level (10W-30 recommended).
- Check gasoline level (87 octane, max 10% ethanol).
- Ensure generator is on a flat, level surface.
- Ensure generator is outdoors, away from windows, doors, and vents.
- Disconnect all electrical loads before starting.
Specs in practice
- 1200W Running / 1500W Starting
- The power capacity of the generator. Do not exceed these limits.
- Neutral Floating
- The neutral circuit is not electrically connected to the frame/ground of the generator.

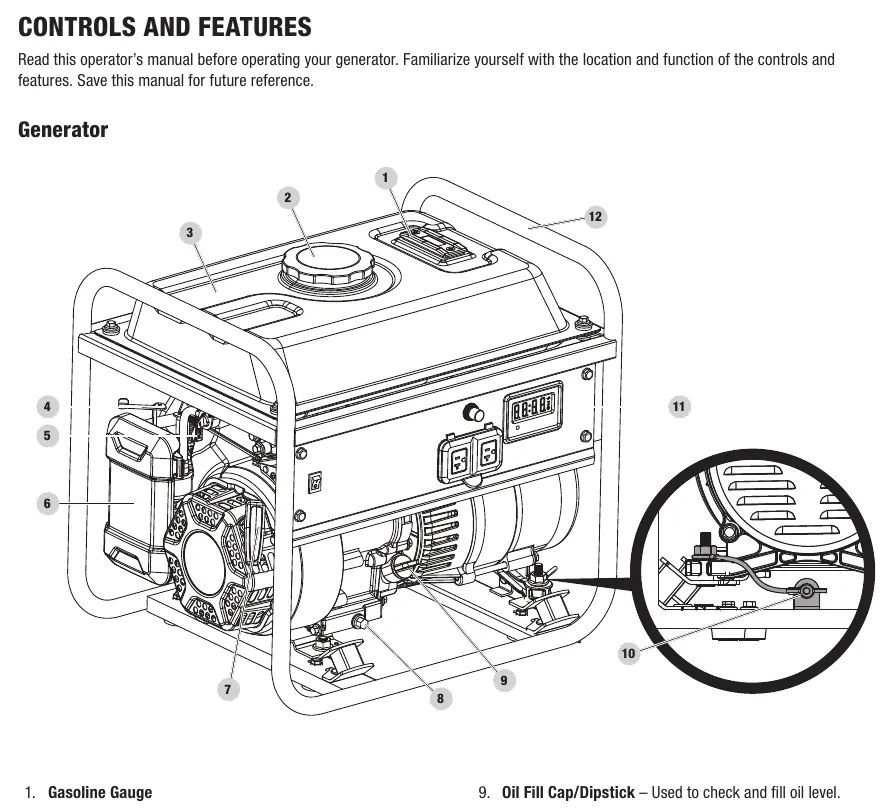

Images and diagrams
- The control panel includes the engine switch, circuit breakers, and receptacles.
- The Intelligauge displays voltage, frequency, run time, and total run time.
- The fuel gauge on top of the tank indicates the approximate fuel level.
Model compatibility
- Do not connect 3-phase loads.
- Use only high-quality, insulated, grounded cords.
- Connection to a home electrical system requires a 30A transfer switch installed by a licensed electrician.
