Quick Start Guide for Champion Power Equipment 11000W Wireless Remote Start Trifuel Inverter Generator
Essential setup and operation guide for the Champion Power Equipment 11000W Trifuel Inverter Generator, covering assembly, fuel types, and wireless start procedures.
Table of contents
Product Overview

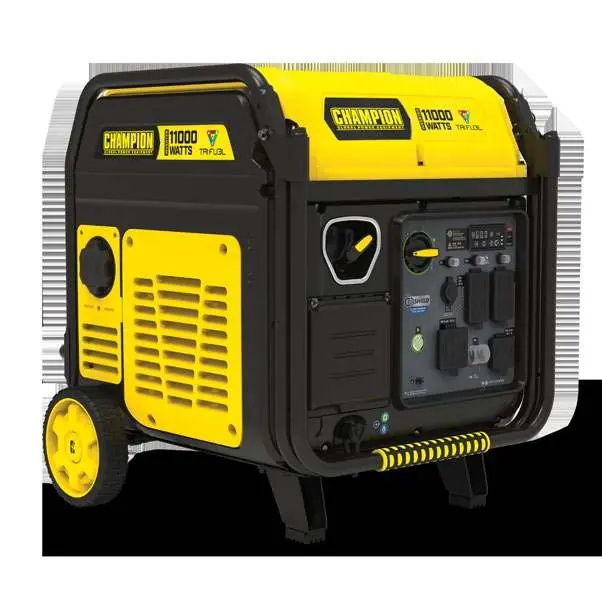

The Champion Power Equipment 11000W Wireless Remote Start Trifuel Inverter Generator is a versatile power solution capable of running on gasoline, propane (LPG), or natural gas (NG). This guide provides the necessary steps to prepare the unit for its first use and perform safe startups.
Safety First
Warning: Never operate this generator indoors, including inside homes or garages, even if doors and windows are open. Generator exhaust contains carbon monoxide, a colorless and odorless poison that can be fatal within minutes. Always operate the unit outdoors, far away from windows, doors, and vents. Maintain a clearance of at least 5 feet (1.5 m) from the generator to prevent heat from the muffler and exhaust from igniting combustible materials.
Initial Setup
Before starting the generator, complete the following assembly steps:
- Wheel Kit: Attach the wheels to the generator frame.
- Battery Connection: Cut the cable ties on both sides of the battery connector and firmly push the two halves together.
- Engine Oil: Add the recommended 10W-30 engine oil. The capacity is up to 37.2 fl. oz. (1100 ml). Do not overfill.
Starting the Generator
Ensure no electrical devices are plugged into the generator before starting or stopping it. To start the engine:
- Gasoline: Turn the fuel select dial to the "GASOLINE RUN" position, press the ignition control button once to enter standby mode, and press the "START" button on the remote control.
- Propane/Natural Gas: Open the gas valve, turn the fuel select dial to the appropriate "PROPANE RUN" or "NATURAL GAS RUN" position, press the ignition control button once, and press the "START" button on the remote.
If the battery is discharged, you must refer to the full operator's manual for the manual start procedure.
Operation
Once the engine is running, ensure all circuit breakers are in the "ON" or closed position before connecting any electrical loads. If a breaker trips, flip or push it to reset.
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Generator will not start via remote.
Ensure the battery is charged. If the battery is dead, you must perform the manual start procedure as described in the full operator's manual.
Engine will not run on gasoline.
Verify that the fuel select dial is set to 'GASOLINE RUN' and ensure you are not using E15 or E85 fuel.
No power output to connected devices.
Check that all circuit breakers are in the 'ON' or closed position. Reset them if necessary.
Before use
- Install the wheel kit.
- Connect the battery by joining the two connector halves.
- Add up to 37.2 fl. oz. (1100 ml) of 10W-30 engine oil.
- Move the generator to an outdoor location away from windows and vents.
- Ensure no electrical devices are plugged in before starting.
Specs in practice
- Fuel Compatibility
- Supports Gasoline, Propane (LPG), and Natural Gas (NG).
- Gasoline Restriction
- Do not use E15 or E85 fuel blends.
Images and diagrams
- The fuel select dial must be turned to the specific fuel type position before attempting to start the engine.
- The ignition control button must be pressed once to enter standby mode before the remote start button will function.
Model compatibility
- Requires manual start procedure if the internal battery is not charged.
