User Manual for Chapin 22240XP Industrial Acid Staining Sprayer

Quick guide from the manual

This document provides essential instructions for the assembly, operation, and maintenance of the Chapin 22240XP Industrial Acid Staining Sprayer. Always read the chemical manufacturer's instructions before use.

Safety warnings

• Acidic solutions only: This sprayer is designed exclusively for acidic solutions.
• Prohibited chemicals: Never use with flammable, chlorine, bleach, caustic, or gas-producing chemicals.
• Pressure safety: Never leave a pressurized sprayer in the hot sun. Never use tools to remove the pump if there is pressure in the sprayer. Always release pressure before troubleshooting or opening the tank.
• Personal protection: Always wear goggles, gloves, long sleeves, long pants, and full foot protection.

Assembly

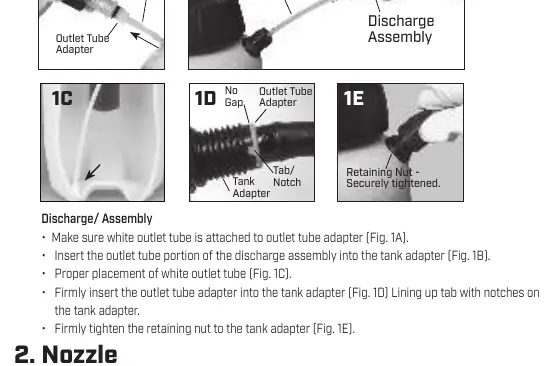

Hose to Tank

1. Ensure the white outlet tube is attached to the outlet tube adapter (Fig. 1A).
2. Insert the outlet tube portion of the discharge assembly into the tank adapter (Fig. 1B).
3. Ensure proper placement of the white outlet tube (Fig. 1C).
4. Firmly insert the outlet tube adapter into the tank adapter, lining up the tab with the notches (Fig. 1D).
5. Firmly tighten the retaining nut to the tank adapter (Fig. 1E).

Nozzle

Attach the nozzle to the shut-off handle or extension wand.

Pre-use check

• Check the tightness of the hose nut.
• Inspect the hose for deterioration, cracks, softness, or brittleness. Replace if necessary.
• Inspect the tank interior and exterior for signs of deterioration.
• Test the unit with water only (10-20 pump strokes) to check for leaks and clogs.
• Inspect all metal parts (wand, nozzle, fittings) for rust or corrosion.

Filling

1. Turn the pump handle counterclockwise to remove the pump.
2. Prepare the spray solution according to the chemical label.
3. Fill the tank to the proper gallon marker. Do not overfill.
4. Ensure the pump barrel is free of grass or dirt, then replace and tighten securely.

Pressurizing and spraying

1. Turn the handle clockwise to tighten.
2. Pump until you feel resistance.
3. Push the handle down and turn 1/4 turn clockwise to lock.
4. Begin spraying. Re-pump as needed to maintain spray force.

Releasing pressure

1. Lift and hold the pressure relief valve cap until air is exhausted, OR turn the valve slowly counterclockwise until air escapes.
2. Stay away from the sprayer until all air has escaped.

Care, storage and maintenance

• Rinse the unit thoroughly with the recommended solvent after each use.
• Run the solvent through the discharge assembly.
• Release pressure, remove the pump, and empty the sprayer.
• Store the tank upside down with the pump removed in a warm, dry location.
• Periodically oil the pump by adding 10-12 drops of light oil down the pump rod through the opening in the cover.

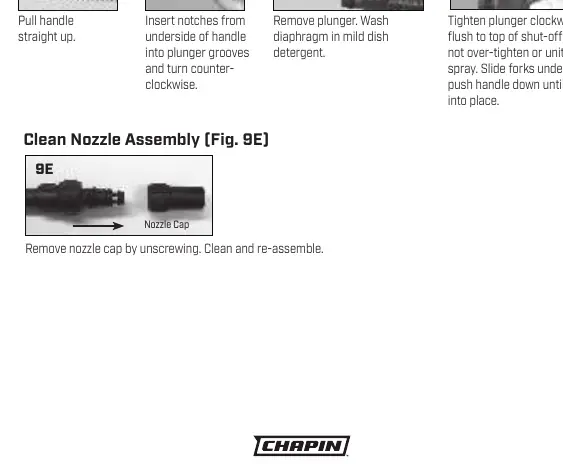

Troubleshooting

If the tank pressurizes but does not spray:

• Clean shut-off: Pull the handle straight up. Insert notches from the underside of the handle into the plunger grooves and turn counter-clockwise. Remove the plunger and wash the diaphragm in mild dish detergent. Tighten the plunger clockwise until flush with the top of the shut-off body (do not over-tighten).
• Clean nozzle: Unscrew the nozzle cap, clean, and re-assemble.
