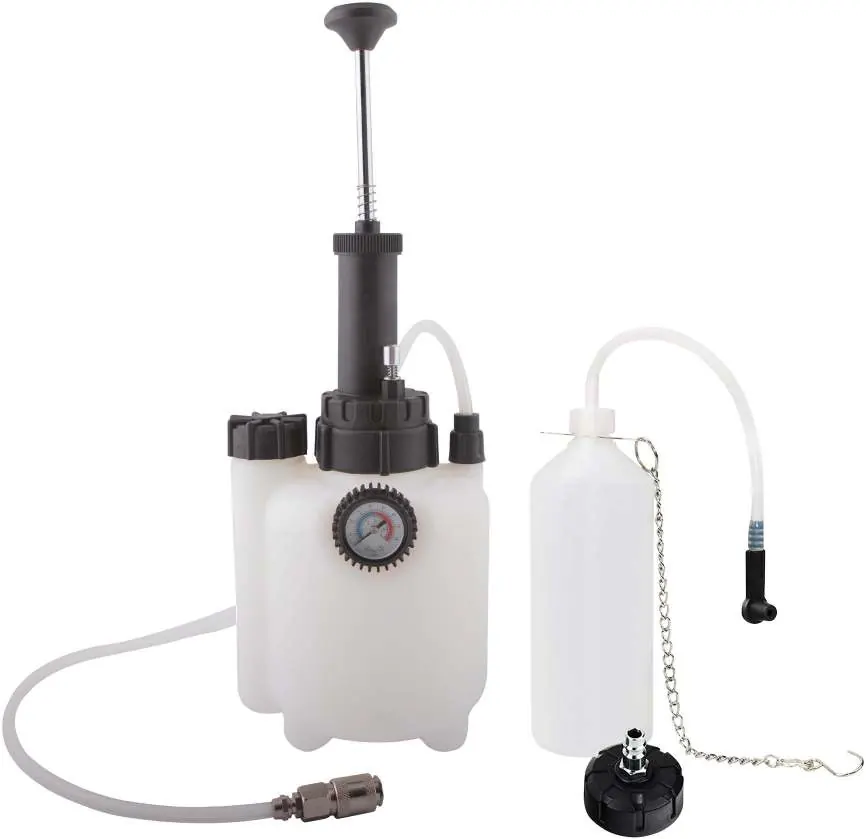

User Manual for CLAS HU 1130BL Brake Bleeder and Manual Clutch

Quick guide from the manual

The CLAS HU 1130BL is a 3L manual brake and clutch bleeder. Always use new brake fluid to avoid system contamination. Ensure the pressure is released via the side valve before disconnecting any hoses or adaptors.

Safety Instructions

• Keep the work area clean, tidy, and well-lit.
• Wear eye protection and avoid contact with brake fluid.
• Brake fluid is flammable; keep away from heat sources and flames.
• Clean up any spills immediately as brake fluid damages paintwork.
• Do not use the kit for tasks it was not designed for.
• Keep children and unauthorized persons away from the work area.

Operating Instructions

Before starting, ensure no pressure remains inside the unit by using the release valve on the side of the pump. Remove the top cap and fill the unit with new brake fluid, ensuring no debris or old fluid remains in the tank.

Filling Procedure

1. Select the appropriate adaptor for the vehicle's master cylinder.
2. Install the adaptor onto the master cylinder.
3. Pump the handle up and down until the recommended bleeding pressure is reached.
4. Open the brake nipple and connect it to a bleeding container.
5. Once new fluid appears in the container, close the nipple. Repeat this process for all four wheels.
6. Ask a helper to pump the brake pedal while monitoring the fluid flow in the clear tube.
7. Once finished, release the pressure using the side valve before disconnecting the supply hose.
8. Top up the brake fluid in the reservoir if necessary and replace the cap.

Care and Maintenance

• After use, wipe the unit clean with a clean, dry cloth.
• Always release air pressure using the pressure relief valve.
• Empty the product tank when not in use.

Contact Information

For parts or technical issues, contact CLAS Equipements at ZA de la CROUZA, 73800 CHIGNIN, FRANCE. Phone: +33 (0)4 79 72 62 22. Fax: +33 (0)4 79 72 52 86.
