Assembly Instructions for Coaster Fine Furniture 193951BLK Dining Table
Quick assembly guide for the Coaster Fine Furniture 193951BLK Dining Table. Includes step-by-step instructions, hardware identification, and technical dimensions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the 193951BLK Dining Table. The estimated assembly time is 20 minutes. Before starting, ensure all parts and hardware are present and sorted by size. Follow the numbered sequence provided in the steps to ensure a fast and easy assembly.
Safety and warnings
- This product is intended for home use only and is not suitable for commercial establishments.
- Do not attempt to repair or modify any parts that are broken or defective; contact the store immediately.
Parts identification
- A: Top (1PC)
- B: Leg (2PCS)
- C: Mounting Bar (2PCS)
- D: Crossbar (1PC)
Assembly steps

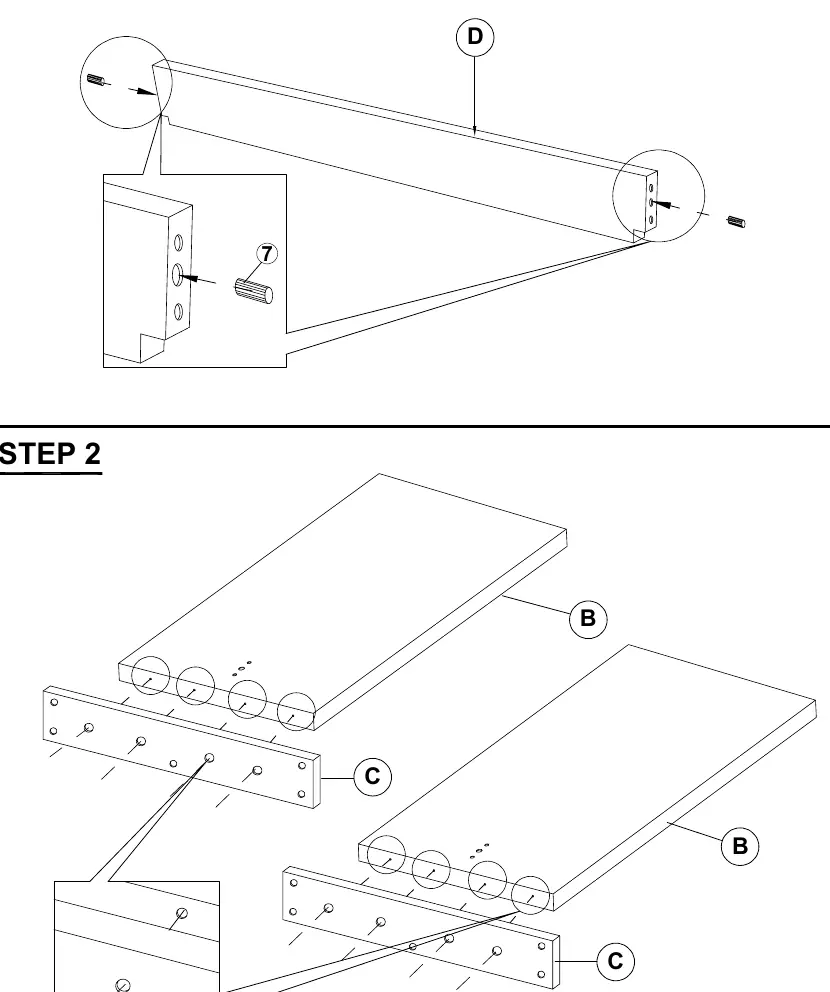

- Step 1: Attach wood dowels (7) to the crossbar (D).
- Step 2: Connect the mounting bars (C) to the legs (B) using short hex head screws (3) and the Allen wrench (1).

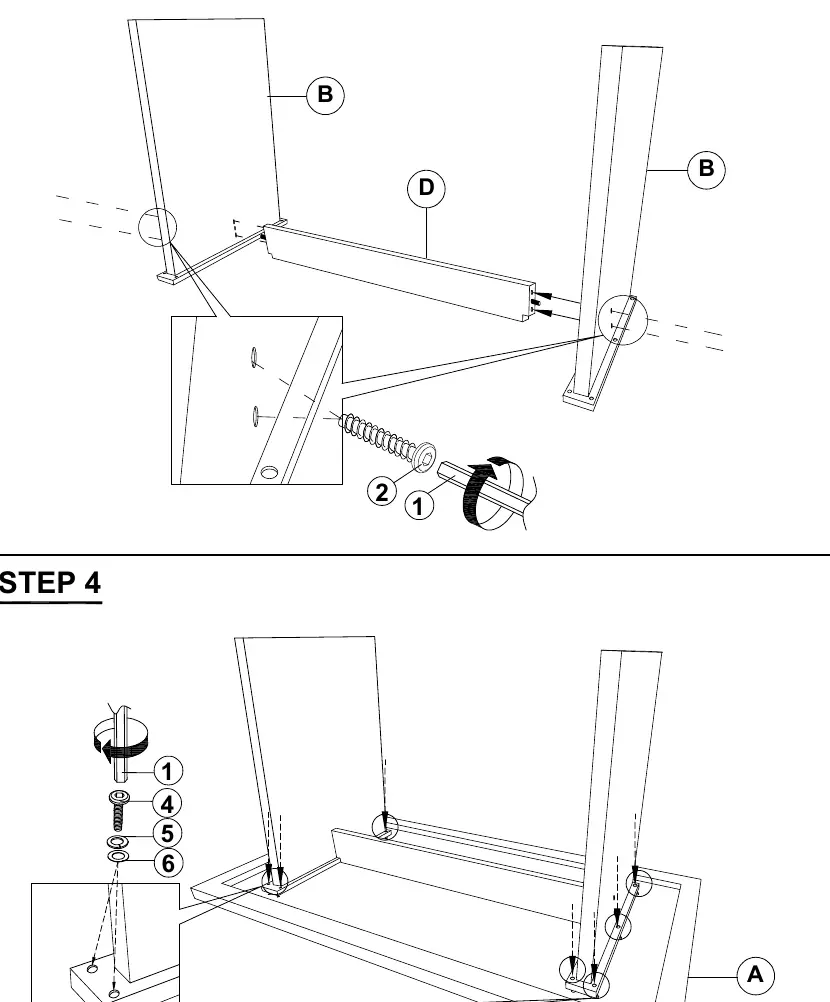

- Step 3: Secure the crossbar (D) between the two leg assemblies (B/C) using long hex head screws (2) and the Allen wrench (1).
- Step 4: Attach the table top (A) to the leg assemblies using bolts (4), lock washers (5), and flat washers (6).

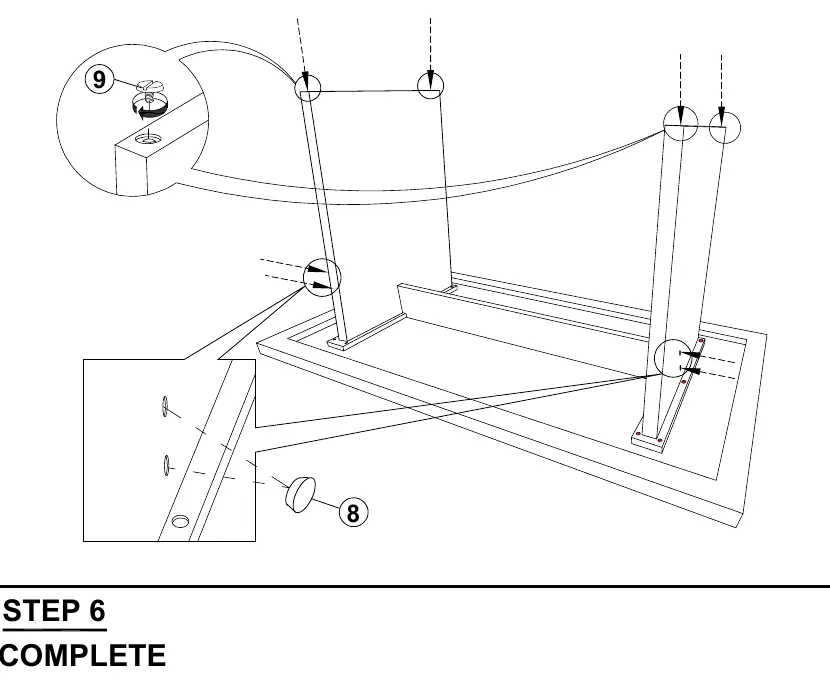

- Step 5: Install the levelers (9) into the bottom of the legs and insert wood plugs (8) to cover screw holes.
- Step 6: The assembly is complete.
Technical data
The table dimensions are approximately 81.75" (length) x 35.50" (width) x 30.00" (height). Note that there is a dimension tolerance of ±5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing parts or hardware
Check all packaging thoroughly before starting. If parts are missing or defective, do not attempt to modify; contact the store immediately.
Before use
- Unpack all components and sort hardware by size.
- Verify all parts (A, B, C, D) are present.
- Verify all hardware (1-9) is present.
- Ensure you have the provided Allen wrench.
Specs in practice
- Assembly Time
- Estimated 20 minutes for two people.
- Dimension Tolerance
- Manufacturing variance of ±5% applies to all stated dimensions.
Images and diagrams
- Step 1 shows dowel placement in the crossbar.
- Step 2 illustrates connecting mounting bars to legs.
- Step 3 details the connection of the crossbar to the leg assemblies.
- Step 4 shows the attachment of the table top.
- Step 5 shows the final installation of levelers and wood plugs.
Model compatibility
- Product is for home use only.
- Not intended for commercial establishments.
