Conductix Wampfler 08-V015-0493 Disassembly Tool User Guide
Quick guide for the Conductix Wampfler 08-V015-0493 disassembly tool. Learn how to safely remove hanger clamps from conductor rails using the provided tools, including step-by-step procedures and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the 08-V015-0493 disassembly tool, which is designed to assist in removing hanger clamps from conductor rail systems. The tool set consists of two specific tools used in sequence to safely release the clamp.
Safety information
Warning: There is a risk of injury due to the crushing of skin and limbs. This is caused by spring force, gravity (stored energy), and falling conductor rail system components if they have not been properly installed or are operated under inappropriate conditions.
- Only allow installation and disassembly to be conducted by specialized technicians.
- Always wear personal protective equipment.
Using the disassembly tool
- Position Tool 1: Slide Tool 1 up to the stopper between the conductor rail and the hanger clamp.
- Secure the rail: Press the conductor rail against Tool 1 or against the hanger clamp.

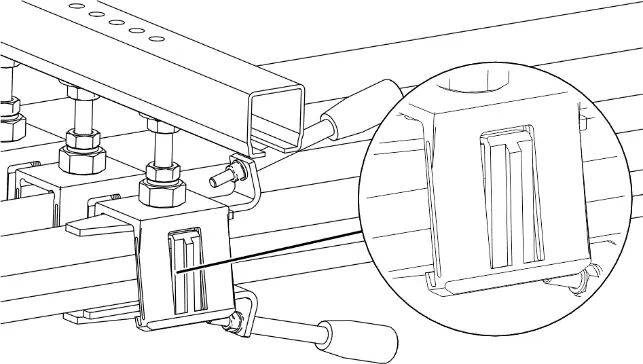

- Insert Tool 2: At the same time, insert Tool 2 on the open side of the conductor rail. The retaining clamp of the hanger clamp will bend up.
- Remove rail: Pull out the conductor rail.
- Remove Tool 2: Remove Tool 2 from the open side of the conductor rail.
Removing Tool 1
To remove Tool 1 after the rail has been extracted, the tension spring of the retaining clamp may need to be pushed away to release the tool.
Contact and support
For further information on the installation of the conductor rail system, refer to the operating instructions BAL0813-0007. For technical support, contact Conductix-Wampfler GmbH at +49 (0) 7621 662-0 or via email at [email protected].
Practical help
Common problems
Difficulty removing Tool 1
The tension spring of the retaining clamp may need to be pushed away to allow Tool 1 to be removed.
Risk of crushing limbs
Ensure only specialized technicians perform the work and wear appropriate personal protective equipment.
Before use
- Ensure you are a specialized technician.
- Wear personal protective equipment.
- Verify the conductor rail system is not under load or in an unsafe state.
- Have both Tool 1 and Tool 2 ready.
Specs in practice
- Program 0813
- The specific product series for which this disassembly tool is compatible.
Images and diagrams
- Tool 1 is used to create a gap between the rail and the clamp.
- Tool 2 is used to bend the retaining clamp up to release the rail.
- The process requires simultaneous use of both tools.
Model compatibility
- This tool is specifically for the Program 0813 conductor rail system.
- Refer to operating instructions BAL0813-0007 for general system installation.
