User Manual for Cuisinart Elite Collection 2.0 12-Cup Food Processor FP-12N Series
Quick guide for the Cuisinart Elite Collection 2.0 12-Cup Food Processor (FP-12N Series). Includes assembly, operation, cleaning, capacity charts, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

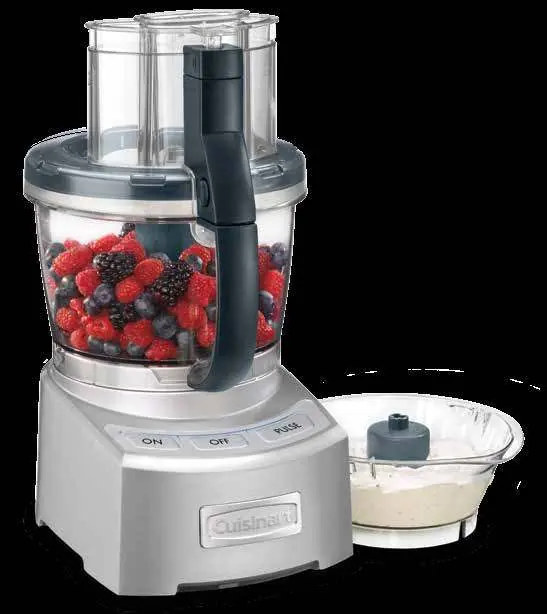

The Cuisinart Elite Collection 2.0 12-Cup Food Processor is a powerful kitchen appliance designed for chopping, mixing, kneading, slicing, and shredding. For your safety, always read the instruction book carefully before use. Key safety points include handling sharp blades with care, unplugging the unit when not in use, and never overriding the cover interlock mechanism.
Important Unpacking Instructions
The package contains the 12-cup and 4-cup work bowls, work bowl cover, various blades (chopping/mixing, dough), discs (slicing, shredding), stem adapter, pushers, and a spatula. When unpacking, be cautious of the sharp cutting tools. The housing base is located at the bottom of the box.
Features and Benefits
The processor features a 1000-watt peak power induction motor and a touchpad control panel with On, Off, and Pulse options. The nested work bowls utilize SealTight technology to maximize capacity and prevent leaks. The BladeLock system keeps blades securely in place during processing and pouring.
Assembly and Operating Instructions
Before first use, wash all removable parts. To assemble, place the work bowl on the base and turn counterclockwise to lock. The cover must be securely locked for the unit to operate. Use the pusher assembly to safely feed ingredients into the feed tube. The Pulse button allows for precise control, while the On button provides continuous operation.
Cleaning, Storage and Maintenance
All parts except the housing base are dishwasher safe on the top rack only. Rinse parts immediately after use to prevent food from drying. The housing base should be wiped clean with a soapy, non-abrasive material. Never store blades or discs on the motor shaft when not in use.
Troubleshooting
If the motor does not start, ensure the work bowl and cover are securely locked. If the motor slows down during heavy loads, process in smaller batches. If the blade rises in the work bowl while kneading, reinsert the blade and add a small amount of flour.
Technical Data
The unit features an automatic, temperature-controlled circuit breaker to prevent motor burnout. If the motor overheats, turn it off and allow it to cool for 10 to 60 minutes before resuming operation.
Manufacturer information
Cuisinart
Practical help
Common problems
Motor does not start
Ensure the work bowl and cover are securely locked into position. Check the power cord and outlet.
Food is unevenly processed
Cut ingredients into 1/2 to 1-inch pieces before processing and process in smaller batches.
Blade rises in work bowl
Excessively sticky dough can cause this. Reinsert the blade and add 2 tablespoons of flour through the feed tube while the machine is running.
Motor slows down during operation
This is normal for heavy loads. Reposition food in the feed tube or remove some ingredients if the maximum capacity has been exceeded.
Before use
- Wash all removable parts before first use.
- Place the base on a dry, level surface.
- Ensure the work bowl is locked onto the housing base.
- Verify the cover and feed tube are securely locked.
- Do not plug the unit in until it is fully assembled.
Specs in practice
- 1000-watt peak power
- High-performance motor capable of processing a variety of recipes.
- 12-cup capacity
- Maximum volume for the large work bowl.
Images and diagrams
- The unpacking diagram shows the arrangement of parts in the foam block for safe removal.

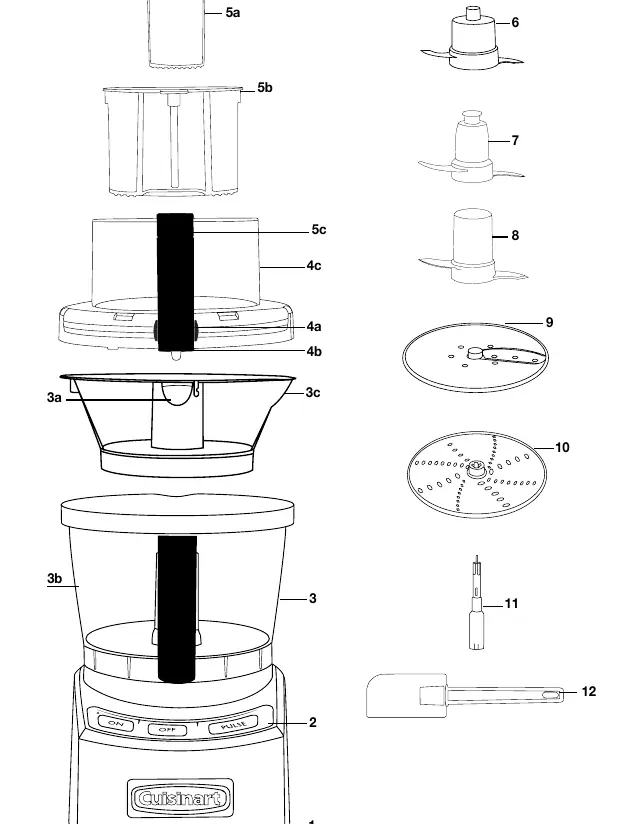

- The parts diagram identifies the housing base, work bowls, cover, pushers, and various blades/discs.
Model compatibility
- Designed for use only in 120-volt outlets.
- Use only authorized accessories and replacement parts.
