Danfoss 032F2335 EVRA Size 40 Repair Kit Installation Guide
A quick guide for the Danfoss 032F2335 repair kit for EVRA size 40 valves, including component identification, quantities, and assembly reference.
Table of contents
Quick guide from the manual
This document provides the necessary information for identifying components included in the Danfoss 032F2335 repair kit, designed for EVRA size 40 valves. It serves as a reference for the correct placement and quantity of spare parts during maintenance or repair procedures.
Device overview and components
The repair kit contains specific seals, gaskets, and internal components required for the maintenance of the EVRA size 40 valve. The kit includes the following parts, identified by their reference numbers in the assembly diagram:
- 1: 14 mm diameter seal (Total: 1)
- 2: 27 mm diameter aluminum seal (Total: 2)
- 3: 10 mm diameter aluminum seal (Total: 1)
- 4: 66 mm diameter seal (Total: 2)
- 5: 42 mm diameter seal (Total: 1)
- 7: 42.5 mm length component (Total: 1)
- 8: 3.3 mm diameter component (Total: 1)
- 9: 44 mm diameter steel component (Total: 1)
- 10: Internal housing component (Total: 1)
- 11: 4 mm diameter seal (Total: 1)
Assembly and maintenance
The provided diagram illustrates the internal structure of the EVRA size 40 valve. When performing repairs, ensure that all seals are replaced according to their specific dimensions and material types (aluminum vs. steel). Verify that the total quantity of each part matches the list provided above to ensure the valve is correctly reassembled and sealed.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Incorrect seal installation
Ensure aluminum seals (parts 2 and 3) are placed in their designated positions as shown in the diagram to prevent leaks.
Missing components
Verify the kit contents against the 'Total no.' counts provided for each part number before starting the repair.
Before use
- Ensure the valve is depressurized before attempting any repair.
- Verify the valve model is EVRA size 40.
- Check that all 11 components are present in the kit.
- Clean the valve interior thoroughly before installing new seals.
Specs in practice
- Alu. (Aluminum)
- Indicates specific seals (parts 2, 3) that require careful handling to ensure a proper seal.
Images and diagrams

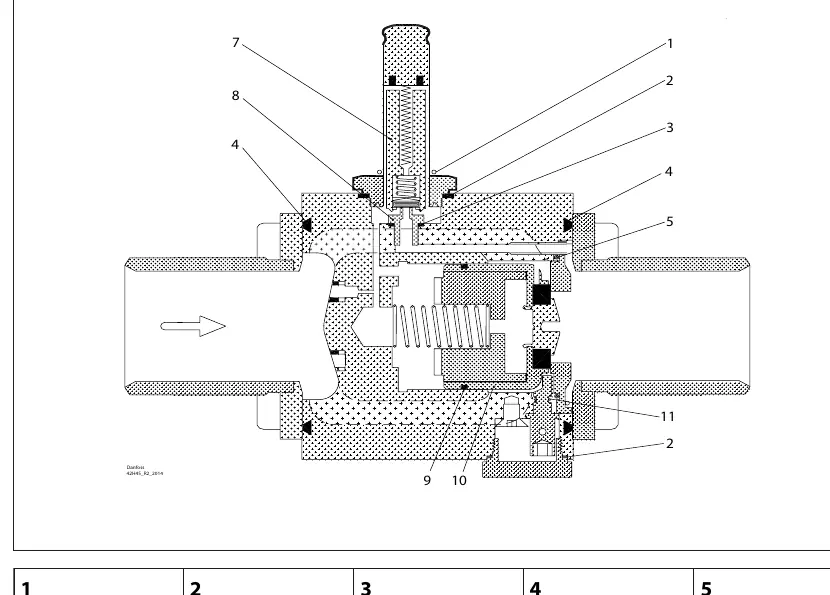

- The main diagram shows the cross-section of the EVRA size 40 valve.
- Numbers 1 through 11 correspond to the specific spare parts included in the kit.
- Arrows indicate the flow direction through the valve body.
Model compatibility
- This repair kit is specifically designed for Danfoss EVRA size 40 valves.
