Installation Guide for Danfoss Overhaul Kit 027F3388
Quick installation and parts reference guide for the Danfoss Overhaul Kit 027F3388, designed for PM size 100 V-cone valves. Includes an exploded view diagram and component specifications.
Table of contents
Quick Guide
This document serves as the official parts reference and installation guide for the Danfoss Overhaul Kit (Code 027F3388), specifically designed for PM size 100 V-cone valves. Use this guide to identify components and their correct placement during valve maintenance.

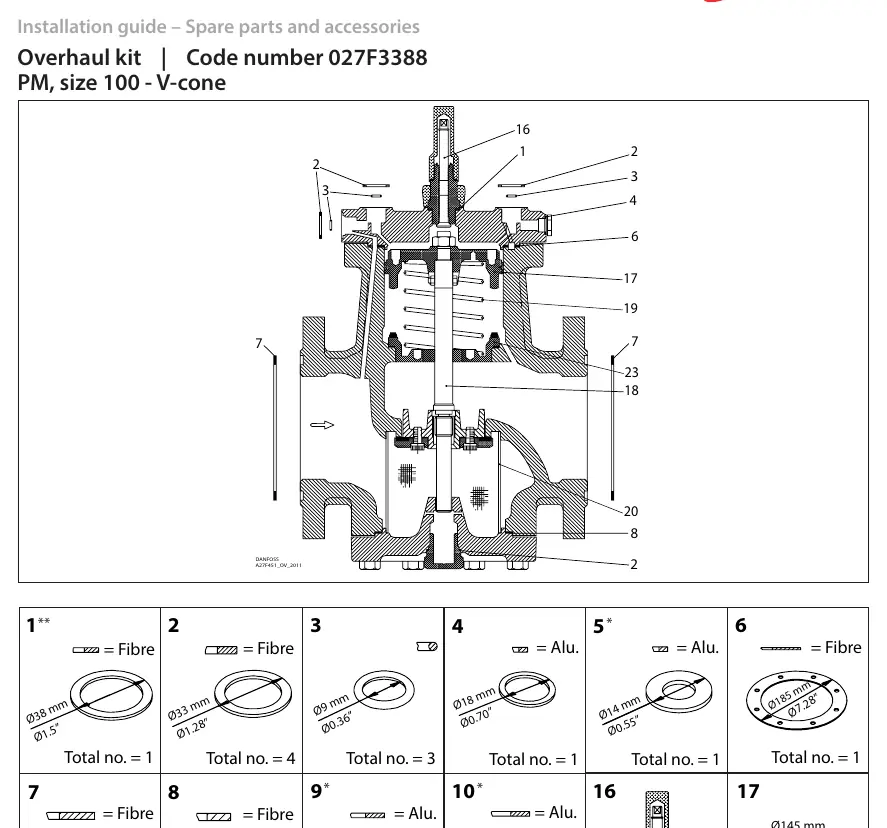

Exploded View and Assembly
The provided diagram illustrates the assembly sequence of the valve components. Use the numbered references (1 through 23) to identify the correct placement of seals, springs, and internal components during the overhaul process. Ensure all parts are oriented correctly as shown in the diagram before finalizing the assembly.
Parts Identification
The kit contains various components made of either Fibre or Aluminium. Ensure you identify the correct part based on the provided dimensions and material type:
- Fibre components: Includes seals and gaskets of various diameters (e.g., 38mm, 33mm, 185mm, 175mm, 168mm).
- Aluminium components: Includes specific rings and internal parts (e.g., 18mm, 14mm, 32mm, 22mm, 141mm).
Important Usage Notes
Please observe the following markings regarding component usage:
- * (Asterisk): Parts marked with a single asterisk are included in the package but are not used for the PM size 100 V-cone configuration.
- ** (Double Asterisk): Parts marked with a double asterisk are included specifically for the manual opening device.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify all parts against the provided list before starting the overhaul.
- Check the material type (Fibre vs. Aluminium) for each seal.
- Identify parts marked with an asterisk (*) to exclude them if installing on a PM size 100 V-cone valve.
- Ensure the valve is depressurized before beginning any maintenance.
Images and diagrams
- The exploded view shows the vertical assembly of the valve internals.
- Numbers 1-23 correspond to the specific parts listed in the kit inventory.
Model compatibility
- This kit is specifically for PM size 100 V-cone valves.
- Some parts included in the kit are not required for this specific model.
