Della 048-OPAC-9HB Portable Air Conditioner Instruction Manual
Quick guide for the Della 048-OPAC-9HB portable air conditioner, covering installation, operation modes, maintenance, and troubleshooting.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation and operation of the Della 048-OPAC-9HB portable air conditioner. Key requirements include placing the unit on flat ground with at least 50 cm (19.7 inches) of clearance from walls or obstacles. The unit must be plugged directly into a grounded wall outlet; do not use extension cords or power strips.
Installation Guide
Proper installation is critical for efficiency:

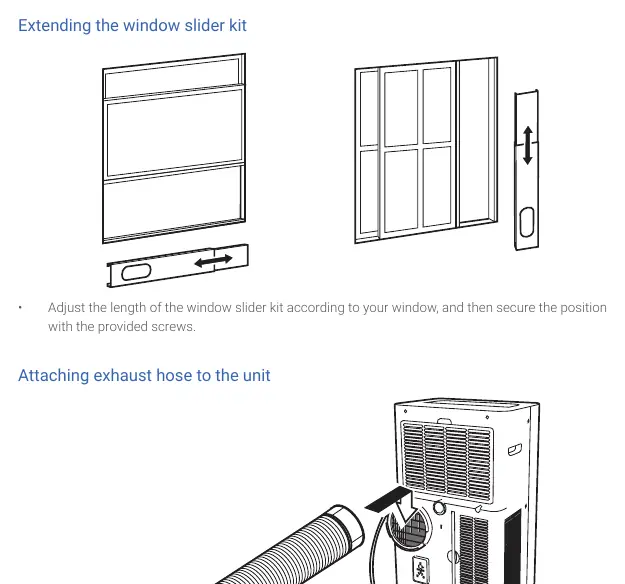

- Connect the exhaust hose to the hose connector and window kit adapter.
- Attach the window slider kit to your window and secure it with screws.
- Use the provided foam seal to ensure a tight fit between the window sash and frame.
- Keep the exhaust duct as short and straight as possible to maintain cooling efficiency.
Operation Instructions
The unit features multiple modes including Cooling, Heating, Dry, and Fan. Use the control panel or remote to select modes, adjust fan speed, or set the timer. The sleep mode automatically adjusts the temperature by 2°F after the first and second hours, then maintains it for 10 hours.
Water Drainage
When the internal tank is full, the display will show the FL error code. To drain, move the unit to a suitable location, remove the bottom drain plug, and allow the water to empty. For continuous drainage in dry mode, attach a hose to the upper drain outlet.
Care and Maintenance
Always shut down and unplug the unit before cleaning. Clean the air filter regularly using a vacuum or warm water with mild detergent. Ensure the filter is completely dry before reinstalling. Do not use abrasive solvents or flush the unit with water.
Troubleshooting
If the unit is non-operational, check for power failure, a tripped breaker, a full water tank, or if the ambient temperature is outside the operating range. Error codes like E1 or E2 indicate sensor failures, while Ft indicates a full water tank.
Manufacturer information
Della
Practical help
Common problems
Unit is non-operational
Check for power failure, tripped breaker, full water tank (FL code), or if the room temperature is outside the operating range.
Reduced cooling/heating capacity
Check for vent obstructions, dirty air filter, open windows/doors, or improperly attached exhaust hose.
Water leak
The internal water tank is likely full; drain the unit.
Noise or vibration
Ensure the appliance is placed on a flat, level surface.
Before use
- Ensure the unit is on a flat, level surface.
- Maintain at least 50 cm (19.7 inches) of clearance around the unit.
- Plug directly into a grounded wall outlet (no extension cords).
- Ensure the exhaust hose is properly installed and straight.
- Check that the air filter is clean and installed.
- Verify the voltage matches the product specifications.
Specs in practice
- Cooling Capacity
- 14000 BTU/h, suitable for rooms up to 550 sq.ft.
- Operating Temperature
- 61°F-90°F for Cooling; 41°F-81°F for Heating.
Images and diagrams
- The unit features an upper drain outlet for continuous drainage and a bottom drain outlet for manual tank emptying.
- The power plug includes integrated TEST and RESET buttons for the circuit breaker.
- Sleep mode logic: In cool mode, temperature increases by 2°F per hour for the first two hours.
Model compatibility
- Designed for indoor use only.
- Do not use in bathrooms, laundry areas, or near water sources.
- Not for use with rechargeable batteries in the remote control.
