Installation Manual for Dometic REF 10-Series Refrigerator
Quick guide for the Dometic REF 10-Series refrigerator. Learn how to change the decorative plate and modify the door lock with step-by-step instructions.
Table of contents
Manual images
Click an image to enlargeImportant Information from the Manual
This document provides specific instructions for modifying the decorative plate and the door lock mechanism on Dometic REF 10-Series refrigerators. Before beginning, verify your specific model number against the list provided in the manual to ensure these instructions apply to your unit.

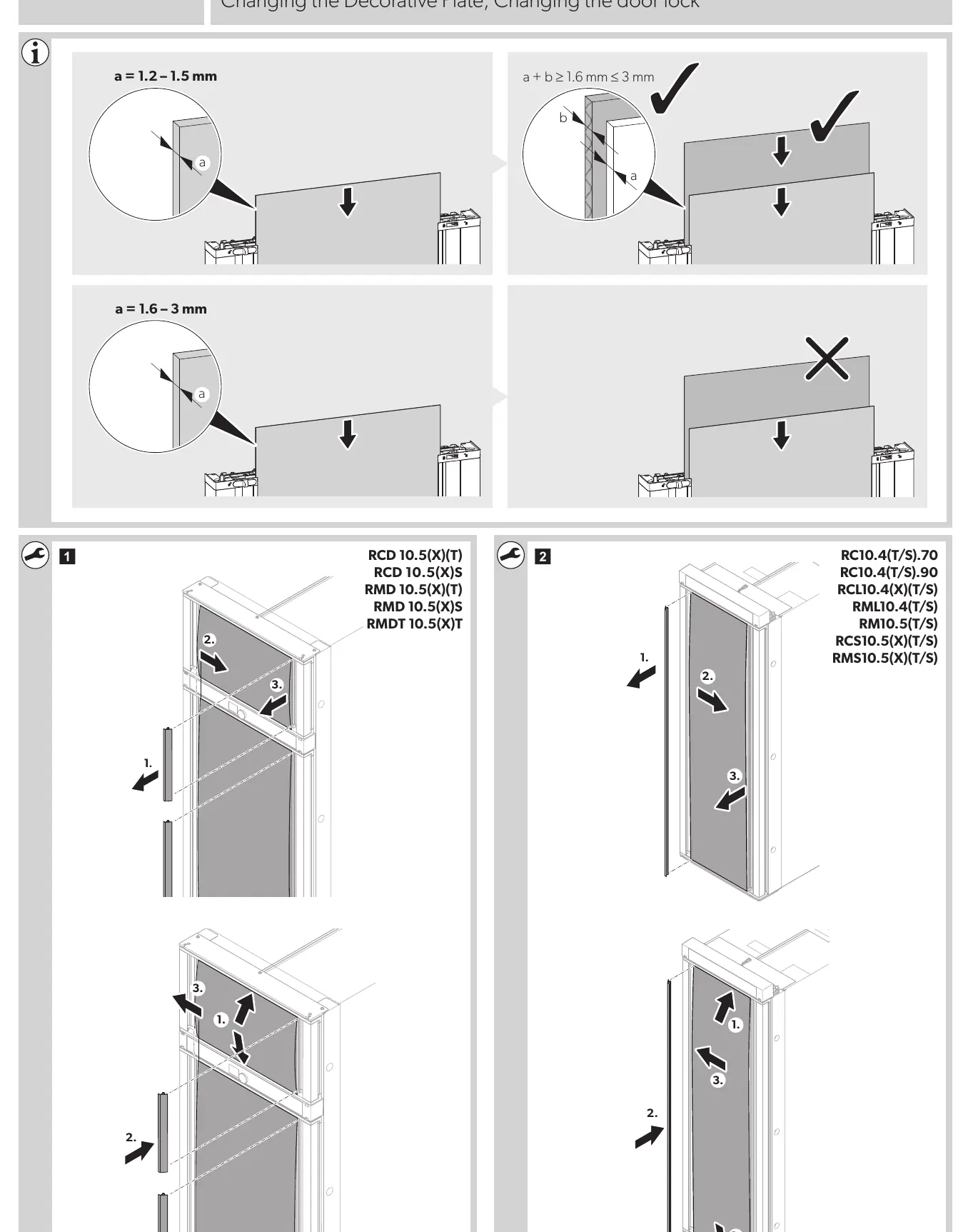

Changing the Decorative Plate
The decorative plate can be replaced or installed by following the specific thickness requirements. Ensure your panel meets the following criteria:
- Thickness range: The panel must be either 1.2–1.5 mm or 1.6–3 mm thick.
- Combined thickness: The total thickness (a + b) must be between 1.6 mm and 3 mm.
Installation Steps:
- Remove the existing decorative strip or panel as shown in the diagrams.
- Slide the new decorative plate into the designated slot.
- Ensure the plate is fully seated and the decorative trim is reattached securely.

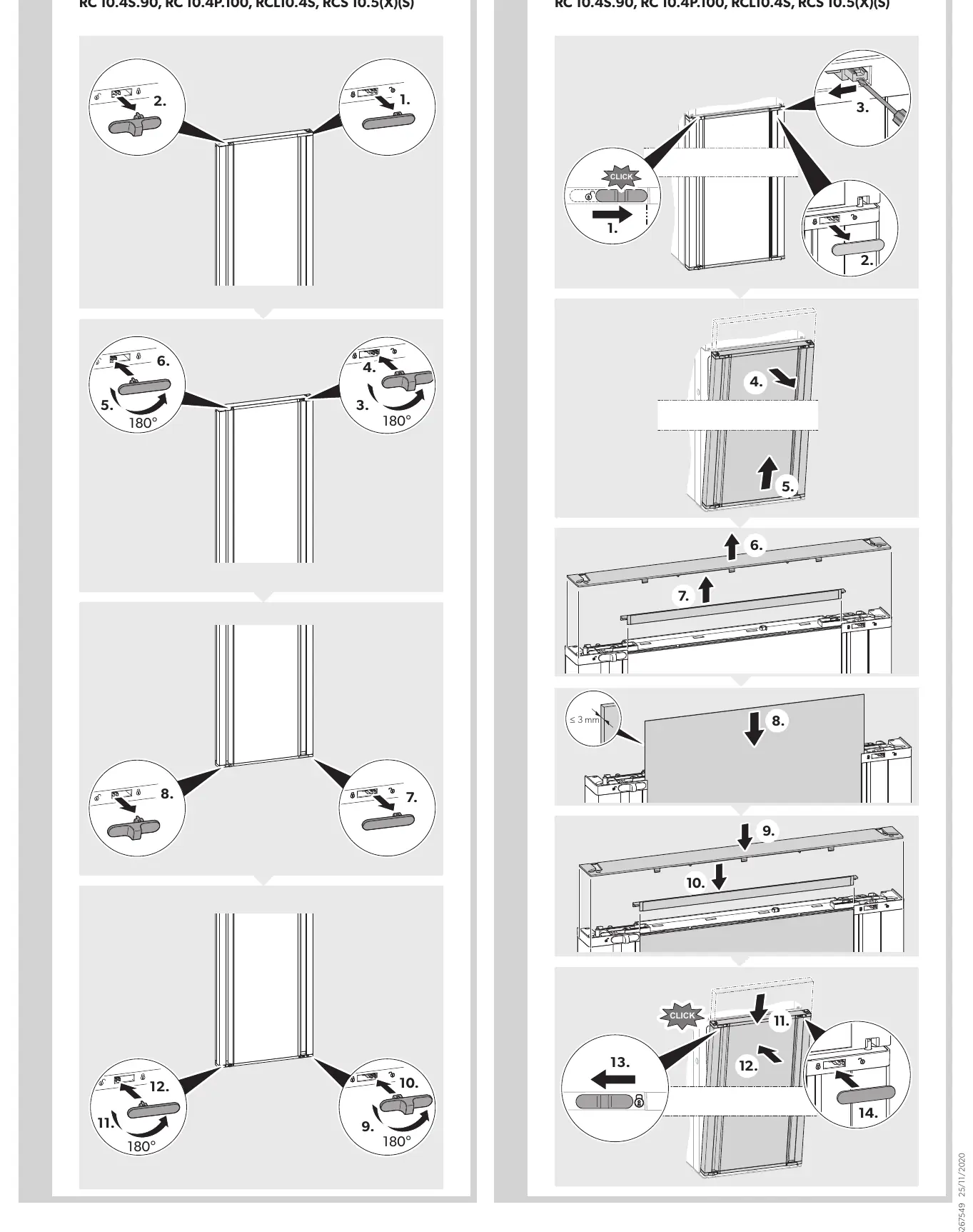

Changing the Door Lock
The door lock mechanism can be modified or reversed. Follow these steps carefully:
- Locate the lock mechanism on the door.
- Follow the numbered sequence in the diagram to remove the lock components.
- Rotate the lock mechanism 180 degrees as indicated by the arrows in the diagrams.
- Reinstall the components in the reverse order of removal, ensuring all parts click into place.
Manufacturer information
Dometic
Practical help
Common problems
Decorative plate does not fit
Verify that the panel thickness is exactly within the 1.2–1.5 mm or 1.6–3 mm range.
Lock mechanism does not engage
Ensure the mechanism was rotated exactly 180 degrees and that all components are clicked into their final positions.
Before use
- Identify your specific model from the list (e.g., RCD 10.5, RMD 10.5, RC10.4).
- Measure the thickness of your decorative panel.
- Ensure you have a clear workspace to handle the door components.
- Verify the orientation of the lock mechanism before removal.
Specs in practice
- Decorative plate thickness
- Must be 1.2–1.5 mm or 1.6–3 mm to ensure proper fit and door closure.
- Lock rotation
- The mechanism requires a 180-degree turn to switch orientation.
Images and diagrams
- The diagrams illustrate the specific sequence for removing and inserting the decorative panel.
- The lock modification diagrams show the step-by-step rotation and reassembly process.
Model compatibility
- Applicable to various 10-Series models including RCD, RMD, RMDT, RC, RCL, RML, RM, RCS, and RMS series.
