User Manual for East Oak 1500W Premium Electric 2-in-1 Wall Mount Patio Heater SPH22001
Quick guide for the East Oak 1500W Premium Electric 2-in-1 Wall Mount Patio Heater (SPH22001). Includes installation requirements, safety warnings, remote control operation, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The East Oak 1500W Premium Electric 2-in-1 Wall Mount Patio Heater (SPH22001) is designed for outdoor use. It features ultra-low glare technology, remote control operation, and an overheat protection system. Before use, ensure the unit is installed at least 1.8m from the floor, 0.25m from the ceiling, and 0.5m from walls. Always maintain a 3-foot clearance from combustible materials.
Safety Information
Danger: To avoid overheating, do not cover the product while in use. This appliance is for adult use only; children under 8 years old should be supervised. Do not use in small rooms with children or pets.
Caution: The heater becomes extremely hot during operation. Do not touch the unit while in use. Do not place the heater immediately below a socket outlet. Keep combustible items like curtains, cloth, gas, or flammable liquids at least 3 feet away.
Installation
The heater must be installed by an authorized specialist. Ensure the mounting surface is stable and suitable for the weight of the appliance. The recommended mounting angle is 45 degrees to the surface. Regularly check screw connections, as wind or rain may cause them to loosen over time.
Operation

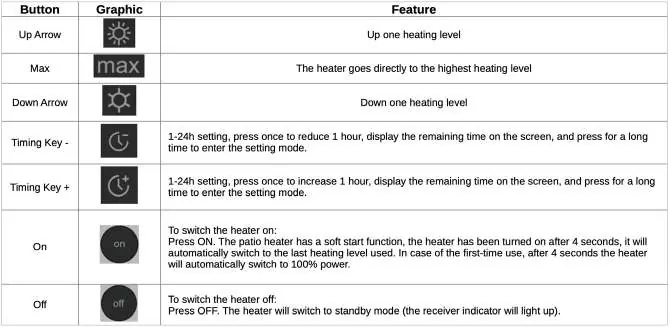

The heater can be operated via the remote control or the buttons on the unit. The remote control requires 2 AAA 1.5V batteries (sold separately). For optimal performance, align the remote directly with the receiver on the heater. The heater features a soft start function; after pressing ON, it will turn on after 4 seconds and automatically switch to the last used heating level.
Care and Maintenance
Before cleaning, always unplug the device and allow it to cool down completely. Wipe the exterior with a clean, lint-free cloth or a soft bristle brush. Do not use abrasive cleaners, rough brushes, or chemical products. Do not immerse the cord, plug, or any part of the heater in water or other liquids.
Overheat Protection
The heater includes an Overheat Protection System that automatically shuts the unit off if parts overheat. If this occurs, turn the heater off, unplug it, and inspect for any obstructions. Wait 5 to 10 minutes for the unit to cool down before plugging it back in and resuming operation.
Support and Warranty
This product includes a 3-year warranty. For support, questions, or comments, contact East Oak at [email protected] or call 1-833-327-8625. Register your product at eastoak.com/warranty to claim the warranty.
Official resources from the manual
Practical help
Common problems
Heater does not turn on or shuts off unexpectedly
Check if the Overheat Protection System has been triggered. Turn off, unplug, remove any obstructions, wait 5-10 minutes for it to cool, then restart.
Remote control is not working
Ensure 2 AAA 1.5V batteries are installed. Check for physical blockages between the remote and the heater. Align the remote directly with the receiver.
Heater components are loose
Check screw connections regularly. Mechanical pressure and oscillation from wind or rain can cause them to loosen.
Before use
- Verify all parts and components are present and undamaged.
- Ensure the mounting surface is stable and can support the heater.
- Confirm the heater is installed at least 1.8m from the floor.
- Ensure a clearance of at least 0.25m from the ceiling and 0.5m from walls.
- Check that the power outlet is grounded and matches the 120V rating.
- Remove all combustible materials from a 3-foot radius around the heater.
Specs in practice
- Power Consumption
- 1500W - The maximum electrical power usage of the heater.
Images and diagrams
- Installation clearances: Shows the required distances from the floor (1.8m), ceiling (0.25m), and walls (0.5m).
- Mounting angle: Illustrates the recommended 45-degree angle for the heater head.
- Grounding: Shows how to properly connect the plug to a grounded outlet, including the use of an adapter if necessary.
Model compatibility
- Compatible with 120V grounded sockets only.
- Do not use with extension cords or power strips.
- Not suitable for use in small rooms with children or pets.
