Eureka EEB 1.5L Blender User Manual
Quick guide for the Eureka EEB 1.5L Blender. Learn how to operate, clean, and troubleshoot your blender safely. Includes usage steps, safety precautions, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeImportant information from the manual
To ensure safe and efficient operation, please note the following critical limitations:
- Maximum capacity: 1500ml.
- Operating time: Do not operate the blender for longer than 2 minutes at a time. Stop for 2 minutes to allow the motor to cool before resuming.
- Restrictions: Do not crush ice cubes. Do not process hot ingredients over 60°C.
- Safety: Never immerse the motor housing in water.
Identification of parts
The blender consists of the following components:
- 1. Cover
- 2. Blender container
- 3. Cup base
- 4. Cutting blades
- 5. Motor housing
- 6. Switch panel
Precautions
Before using the appliance, ensure the voltage and frequency of your local power supply match the specifications on the button plate. Always ensure the container is properly assembled with the blade base and packing before operation. Do not remove or attach the container while the motor is running. If the supply cord is damaged, it must be replaced by a qualified service agent.
How to use the blender
- Ensure the switch is in the OFF position.
- Place ingredients into the container and secure the cover.
- Place the container onto the motor housing.
- Plug the unit into the power outlet.
- Select one of the two speed buttons as required. Use the PULSE switch for precision blending.
- After grinding, switch the unit off and unplug it from the power source.
Troubleshooting
If the circuit breaker automatically stops the motor due to overloading:
- Switch the unit OFF and unplug it. This action resets the circuit breaker.
- Reduce the amount of ingredients in the container to less than half.
- Resume operation.
Cleaning and maintenance
Blender container: Half-fill the container with lukewarm water and operate the blender for a few seconds to clean. Remove the container and packing from the base and rinse thoroughly. Dry completely.
Grinding blades: Wash the blades under running water and clean carefully with a brush.
Motor housing: Wipe the exterior of the motor housing with a damp cloth.
Technical specifications
The unit operates on 230V a.c. 60Hz power and has a motor rating of 300 Watts.
Contact information
For service inquiries, contact Eureka Electric Appliances Philippines Corp. Service Hotline Nos.: 0998-584-2057 / 0917-814-5356.
Practical help
Common problems
Motor stops automatically during operation
The circuit breaker has tripped due to overloading. Switch OFF, unplug the unit, reduce ingredients to less than half, and resume.
Blender will not start
Ensure the unit is plugged in, the switch is set to a speed, and the container is properly assembled on the motor housing.
Before use
- Verify local power supply is 230V/60Hz.
- Ensure the container is properly assembled with blade base and packing.
- Check that the switch is in the OFF position before plugging in.
- Do not exceed the 1500ml maximum volume.
- Ensure ingredients are not hotter than 60°C.
Specs in practice
- 230V a.c. 60Hz
- Required electrical input for the appliance.
Images and diagrams
- The parts identification diagram illustrates the assembly of the container, blades, and motor housing.

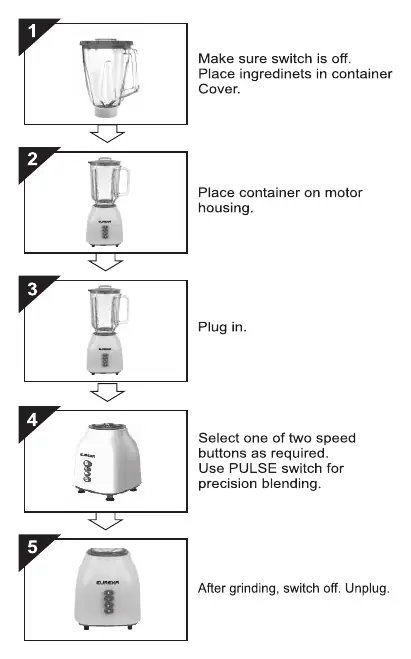

- The usage sequence diagram shows the step-by-step process from loading ingredients to operating the speed buttons.
Model compatibility
- Do not crush ice cubes.
- Do not operate for more than 2 minutes continuously; allow a 2-minute rest period.
