Evolution Powersports Defender 1000 ECU Programming Guide
Quick guide for Evolution Powersports Defender 1000 ECU programming, covering performance features for 2016-2019 and 2020+ models, including octane requirements and technical specifications.
Table of contents
Quick guide from the manual

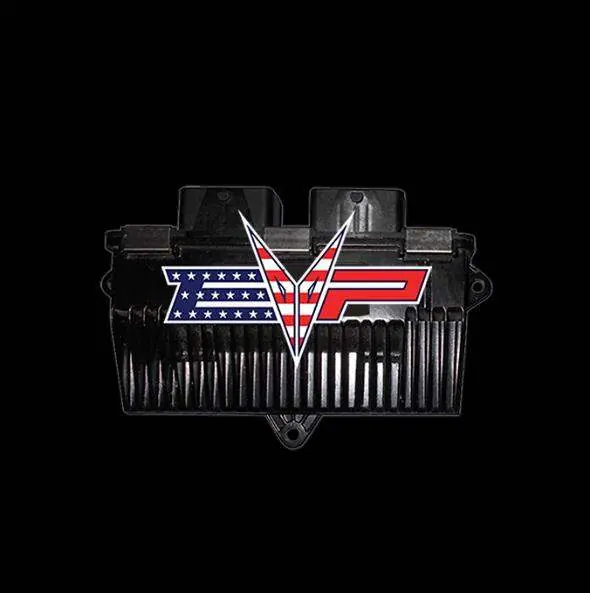

This document outlines the performance features and technical specifications for the Evolution Powersports ECU programming for Defender 1000 vehicles (SKU 004FC0110-004FC0112). It details specific performance enhancements for 2016-2019 and 2020+ models, including engine management adjustments and fuel requirements.
Performance Features 2016-2019
- Raised rev limiter.
- 100% throttle capability.
- Improved throttle response in all modes (E-Gas Improved).
- Optimized ignition timing for 91 Octane fuel.
- Fueling adjustments for aftermarket components like intakes, exhaust, and race pipes.
- Elimination of the need for a piggyback fuel controller for most bolt-on modifications.
- Removal of engine speed torque limiters (Shaft Saver Delete).
- V-Max speed limiter removal.
Performance Features 2020+
- Left foot braking for 2-foot operation.
- Increased speed and torque limits in high and low gear.
- High and low gear rev limits increased from 8300 to 9000 RPM.
- Raised V-Max.
- Improved throttle response.
- Engine fan activation: On at 192 degrees, off at 186 degrees.
- Race-Start: Brake pedal not required to start the engine.
- All stages require 91 octane fuel.
Technical Specifications
The following table outlines the performance gains by stage for different model years:
2016-2019 Defender
- Stock: 91 Octane, 75 HP, 7200 RPM
- Stage 1: 91 Octane, 78 HP, 7200 RPM
- Stage 2: 91 Octane, 83 HP, 7200 RPM
2020+ Defender
- Stock: 91 Octane, 82 HP, 6800 RPM
- Stage 1: 91 Octane, 85 HP, 6800 RPM
- Stage 2: 91 Octane, 88 HP, 6800 RPM
Safety and Compliance
This product is intended solely for use in EPA-certified, purpose-built, non-road vehicles used exclusively for closed-course competition or racing. It is not for recreational use or use on public highways. For technical assistance, contact Evolution Powersports at 715-247-3862.
Manufacturer information
Evolution Powersports LLC
Practical help
Common problems
Engine won't start
For 2020+ models with Race-Start enabled, ensure you are not unnecessarily pressing the brake pedal, as it is no longer required.
Before use
- Verify your vehicle model year (2016-2019 or 2020+).
- Ensure access to 91 Octane fuel, as it is required for all stages.
- Confirm the vehicle is intended for closed-course racing only.
Specs in practice
- Shaft Saver Delete
- Removal of engine speed torque limiters to improve performance.
Model compatibility
- Compatible with 2016-2019 and 2020+ Defender 1000 models.
- Designed for use with aftermarket components like intakes, exhaust, and race pipes.
