Service Parts List for Evolution R185CMS-Li Cordless 185mm Compound Mitre Saw
A comprehensive service parts guide for the Evolution R185CMS-Li 18V cordless compound mitre saw, featuring detailed exploded diagrams and a complete list of components for maintenance and repair.
Table of contents
Quick guide from the manual
This document serves as the official Service Parts List for the Evolution R185CMS-Li 18V Cordless 185mm Compound Mitre Saw (Model V: 088-0004). It provides exploded view diagrams and itemized lists of all internal and external components to assist in maintenance, identification, and ordering of replacement parts.
Device components and assemblies
The saw is broken down into several key functional groups for easier identification of parts:
- Base Group (A): Includes the main base, table, mitre indicator, and support components.
- Fence Group (B): Contains the sliding fence, thumb screws, and locking mechanisms.
- Bevel Bracket Group (C): Covers the pivot mechanism, bevel lock lever, and indicators.
- Head Group (D): Includes the blade housing, dust chute, arbour lock pin, and guard linkage.
- Guard & Gearbox Group (F): Details the blade guard, guard spring, outer/inner flanges, and gearbox sub-assembly.
- Handle Group (G): Contains the main handle, trigger, interlock lever, LED micro switch, and battery socket/PCB.
- Motor Group (H): Includes the motor housing, motor-SMS, and end cap.
- Accessories (M & K): Includes the top hold-down clamp, dust bag, and dust hose connector.
Maintenance and parts identification
When performing maintenance or repairs, refer to the exploded diagrams on page 1 to locate the specific part number. The corresponding table on page 2 provides the full description, part code, and quantity required for each assembly. Ensure that only genuine Evolution replacement parts are used to maintain the safety and performance of the tool.
Manufacturer information
Evolution Power Tools
Practical help
Common problems
Blade guard not functioning correctly
Check the Guard Spring (F09), Guard Roller (F07), and Guard Linkage (D13) for wear or damage.
Mitre or bevel angle not locking
Inspect the Table Locking Screw (B08) or Bevel Lock Lever (C11) for stripped threads or missing components.
Before use
- Verify all screws and fasteners are tightened according to the exploded diagrams.
- Ensure the blade guard moves freely and returns to the closed position.
- Check that the battery socket (G12) is clean and free of debris.
- Confirm the dust bag (K02) or hose connector (K01) is securely attached.
Specs in practice
- Arbour Bolt (F01)
- M8x16 bolt used to secure the blade to the gearbox.
- Double Inner Flange (F03)
- Compatible with both 5/8 inch and 20mm bore blades.
Images and diagrams

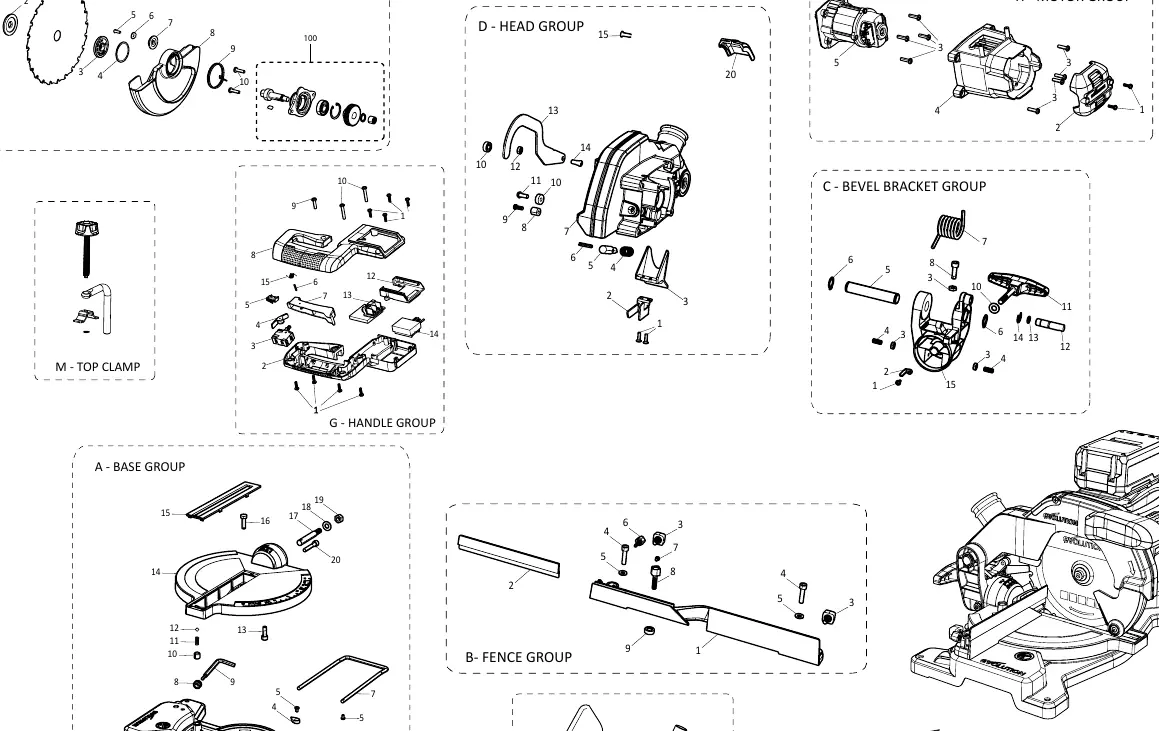

- The exploded diagrams are categorized by letter (A-H) corresponding to the main assemblies of the saw.
- Numbers in the diagrams correspond to the 'No.' column in the parts list table on page 2.
Model compatibility
- This parts list is specific to the R185CMS-Li 18V model (V: 088-0004).
- Dust hose connector is designed for UK/EU standards.
