EXIT Swimming Pool Dome, Ladder, Pump, and Frame Pool User Manual
Comprehensive user manual for EXIT Swimming Pool Dome, Pool Ladder, Sand Filter Pump, and Frame Pool. Includes safety guidelines, assembly instructions, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document contains user manuals for four distinct EXIT Toys products: the Swimming Pool Dome, the Pool Ladder, the Sand Filter Pump, and the Frame Pool. Each product requires specific assembly and maintenance procedures to ensure safety and longevity.
Safety instructions
General Safety: Always supervise children and individuals with disabilities. Never leave children unattended in or near the pool. Ensure the pool area is secure and compliant with local safety laws.
- Pool Dome: Install with at least 2 adults. Do not use in wind force higher than 5. Dismantle in wind force higher than 6. Keep away from open fires and grills.
- Pool Ladder: Maximum load is 300 lbs (136 kg). One person at a time. Remove and secure when not in use.
- Sand Filter Pump: Connect only to a grounded outlet with RCD protection. Do not bury the power cord. Do not use extension cords.
- Frame Pool: Ensure the ground is firm, flat, and level (max 3° slope). Do not use sand for leveling.
Assembly and installation
Pool Dome: Follow the specific assembly steps for your pool size (14ft, 15ft, or 16ft). Ensure the dome is anchored properly using the provided straps.

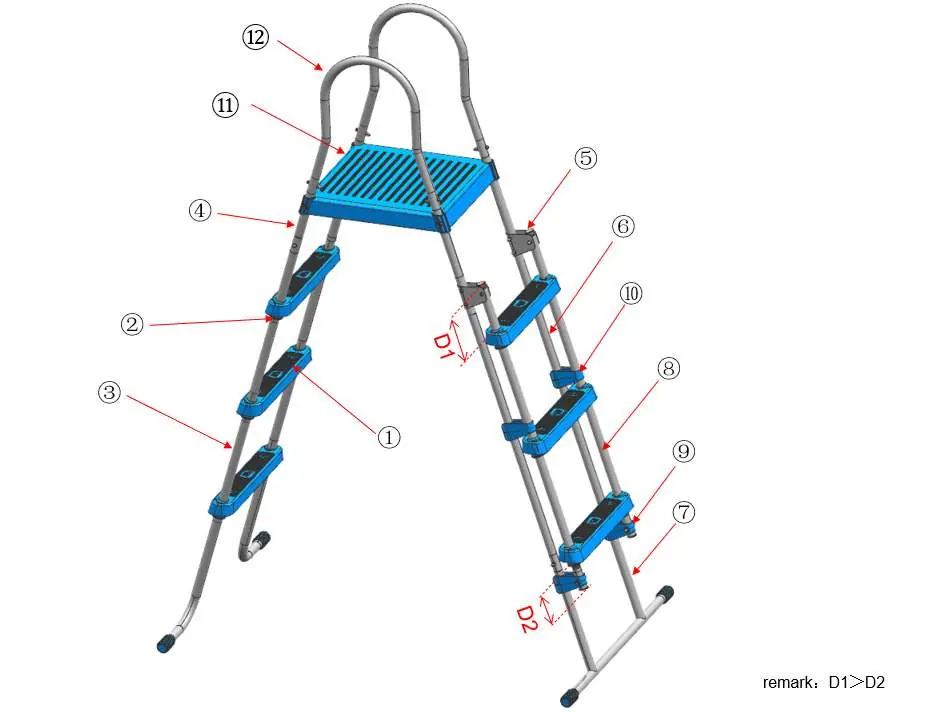

Pool Ladder: Assemble the ladder components (1-16) according to the diagrams. Ensure all nuts and bolts are tightened regularly.
Sand Filter Pump: Connect the pump to the pool using the provided hoses and clamps. Ensure the control valve is set correctly for the desired function (Filter, Backwash, Rinse, Drain, Recirculation, Closed).
Frame Pool: Assemble the frame by connecting horizontal beams and T-joints. Ensure the pool liner is smooth and the drain valves are securely plugged.
Maintenance and care
Pool Dome: Clean only with cold or lukewarm water. Do not use abrasive cleaners. Store in a dry, damp-free environment after the summer season.
Pool Ladder: Keep clean and free of foreign materials. Apply anti-rust oil to screws when not in use. Store in a dry location out of children's reach.
Sand Filter Pump: Monitor the pressure gauge. If pressure exceeds 0.2 bar (3psi), perform backwash and rinse. Store in a dry place between 0°C and 40°C.
Frame Pool: Maintain proper pH and chlorine levels. Regularly check bolts and hardware for rust. Drain and dry thoroughly before off-season storage.
Troubleshooting
Colored Water: Chlorine is oxidizing minerals. Adjust pH and run the filter until clear.
Suspended Particles: High pH or inadequate chlorination. Adjust pH and clean/replace filter.
Low Water Level: Check for leaks in the liner or hoses. Tighten clamps and repair holes with the patch kit.
Pump Issues: If the motor does not start, check the power connection and reset the circuit breaker. If the pump fails to discharge water, check for blockages in the pipes.
Practical help
Common problems
Motor does not start
Check power connection, reset circuit breaker, or allow motor to cool if overheated.
Colored water
Chlorine is oxidizing minerals. Adjust pH to recommended level and run filter until clear.
Low water level
Check for leaks in liner or hoses, tighten hose clamps, and repair holes with patch kit.
Algae growth
Apply shock treatment, scrub pool liner, and maintain proper chlorine levels.
Before use
- Ensure the ground is firm, flat, and level (max 3° slope).
- Check that all parts are present according to the manual.
- Ensure safety equipment is accessible.
- Verify electrical connections are grounded and protected by RCD.
- Remove sharp objects from the setup area.
Specs in practice
- Max Load (Ladder)
- 300 lbs (136 kg)
- Wind Force (Dome)
- Up to 4: partially open allowed; >5: open and anchor; >6: dismantle.
- Max Pressure (Pump)
- 0.2 bar requires backwash/rinse.
Images and diagrams
- Pool Dome assembly diagrams show the sequence of connecting frame parts.

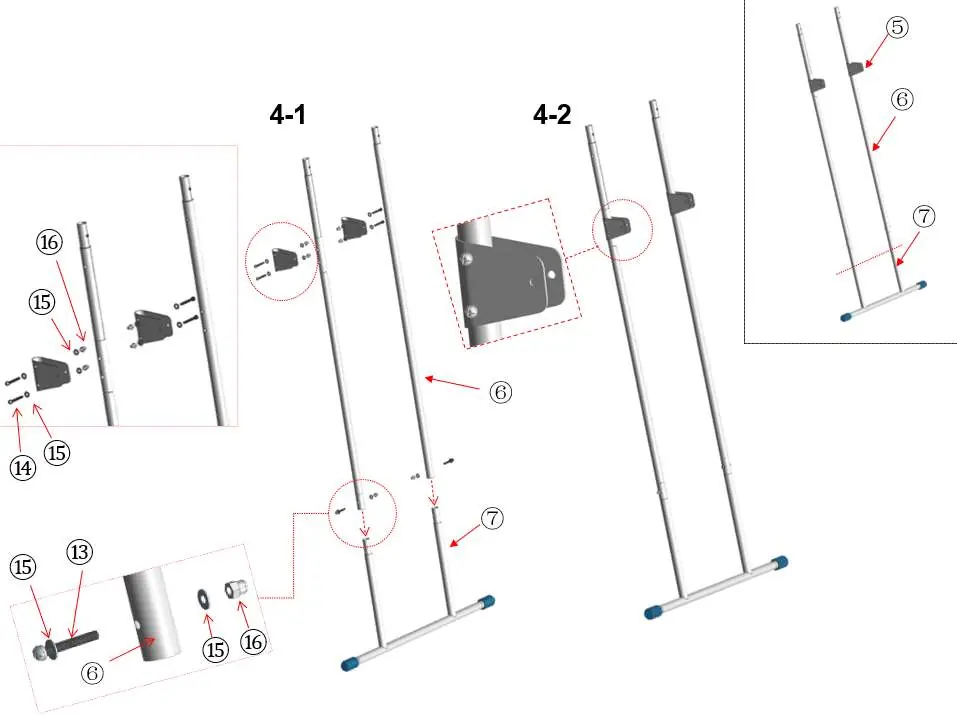

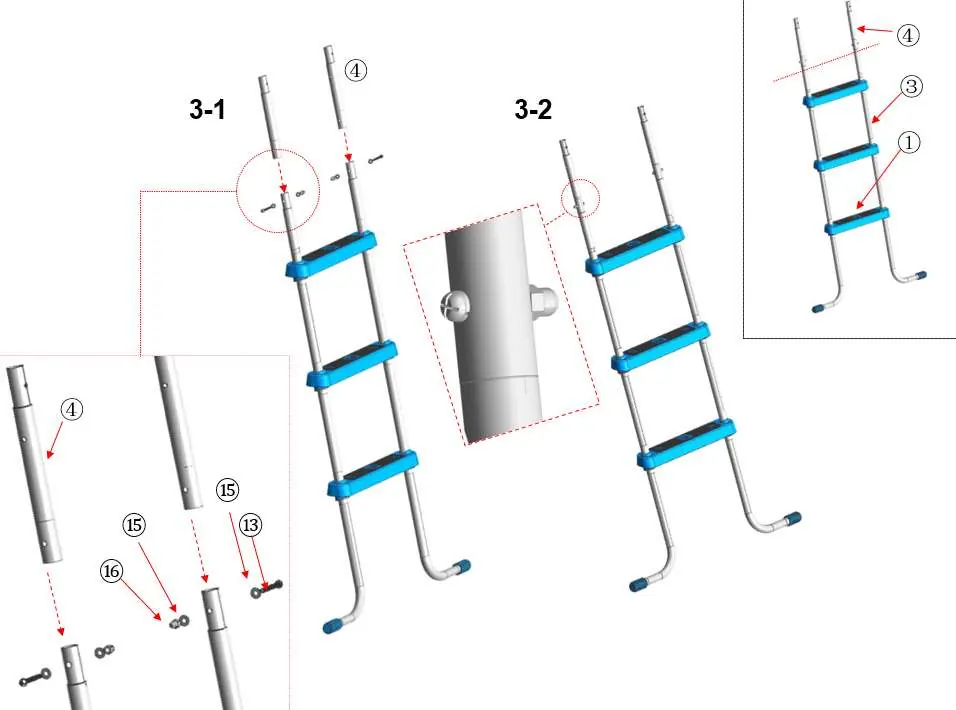

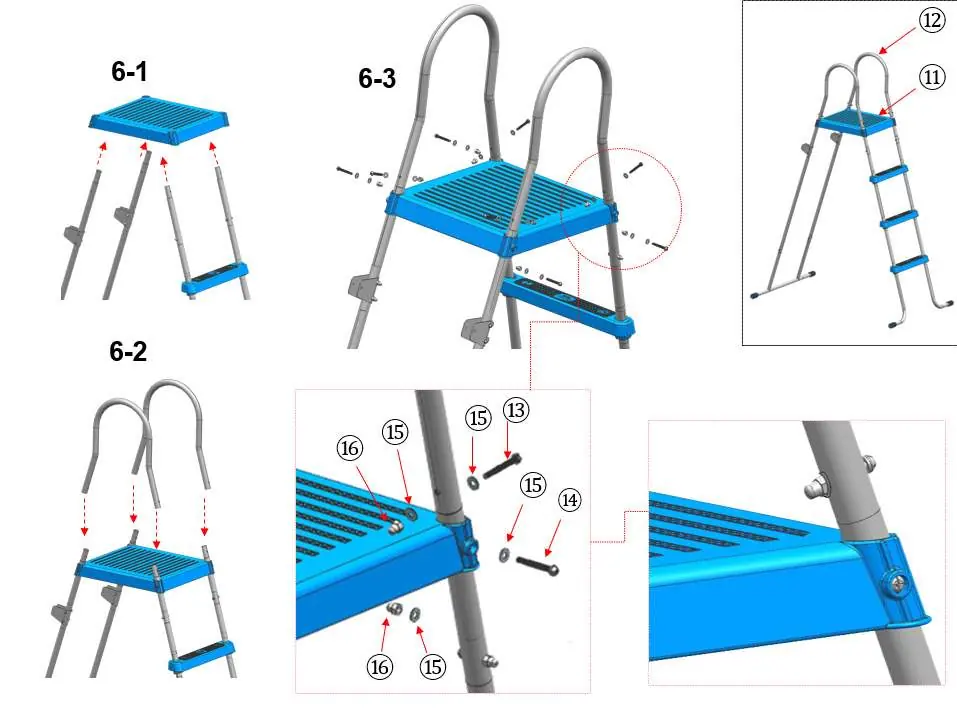

- Ladder assembly diagrams detail the connection of steps and side rails.

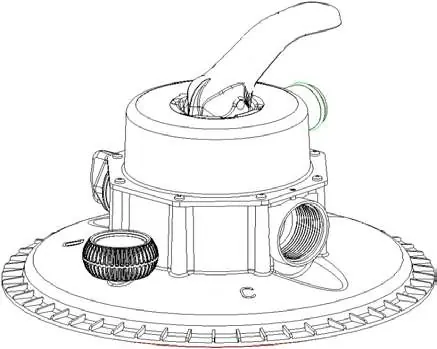

- Pump diagrams illustrate the correct hose connections and control valve positions.
- Frame pool diagrams show the connection of horizontal beams and T-joints.
Model compatibility
- Pool Dome must be used with a suitable frame pool.
- Pool Ladder is designed for a specific pool wall height.
- Sand Filter Pump is limited to purposes described in specifications.
