Operating Manual for FBT MYRA 214L Line Array System
Quick guide for the FBT MYRA 214L line array system. Includes setup, rigging mechanics, wiring diagrams, DSP requirements, and technical specifications.
Quick answers from the manual
Quick answer
- The MYRA 214L is a 3-way full-range line array module. It requires processed amplification with FBT-validated DSP presets and specific rigging hardware for safe deployment. p. 15, 17, 18
Key actions
- Rigging the system p. 17
- Wiring the speakers p. 18
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Frequency Response | 40Hz - 20kHz | Operating range | p. 21 |
| Max SPL | 147dB | Peak output | p. 21 |
Show 1 more answers Show less
Where to find it in the PDF
- Safety Precautions p. 14
- Rigging Mechanics p. 17
- Inputs & Outputs p. 18
- Specifications p. 21
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The FBT MYRA 214L is a professional 3-way full-range line array module. For safe and optimal performance, it is mandatory to use processed amplifiers with FBT-validated DSP presets. The system features a 4-point integrated rigging mechanism for flying or ground-stacking. Always consult the dedicated MYRA SYSTEM RIGGING MANUAL for detailed installation and safety procedures.
System Description
The MYRA 214L is designed for mid-to-large touring applications and high-end fixed installations. It utilizes two neodymium coaxial compression drivers (4-inch mid-frequency and 2.5-inch high-frequency voice coils) and two 14-inch neodymium low-frequency drivers. The cabinet is constructed from Baltic birch with a weather-resistant polyurea coating.
Integrated Mechanics and Rigging
The system includes a 4-point rigging mechanism with two adjustable arms and two housings with ball lock pins on each side. Key components include:
- Rear concealed brackets: For securing to an upper unit or flybar.
- Front concealed brackets: For securing to an upper unit or flybar.
- Quick-release pins: For fast assembly.
- Graduated flange: Allows setting inter-enclosure angles between 0.25° and 8°.
Use the MYRA Rigging Safety Calculator software to determine the safety factor for your specific configuration.

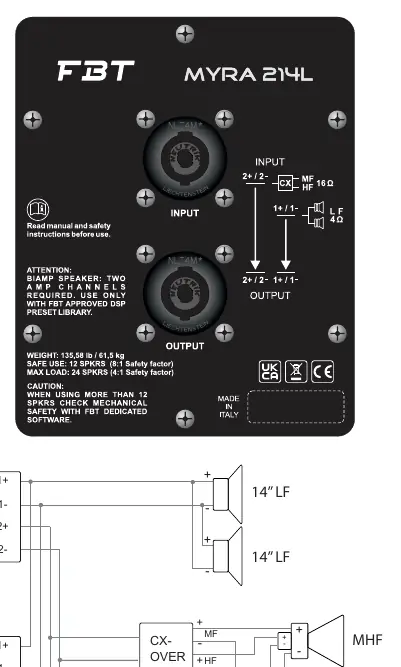

Inputs and Outputs
The rear panel features two Neutrik Speakon NLT4MP connectors wired in parallel. This allows for linking two cabinets. When linking, ensure your amplifier can handle the resulting 2-ohm load. Recommended cable sections are 4-wire x 2.5mm² for lengths up to 15m, and 4-wire x 4mm² for lengths over 15m.
DSP and Acoustic Simulation
The MYRA 214L requires processed amplification. Using the system without FBT-validated presets is prohibited and may damage components. For acoustic optimization, FBT recommends using the EASE FOCUS 3 software with the .GLL library files available on the FBT website.
System Components
The system supports various accessories for deployment:
- MR-F 214: Frame/flybar for flown configurations.
- MR-FJ 214: Rigging accessory for azimuth adjustment.
- MR-J 214: Pull-back compression frame.
- MR-T 214: Dolly for transport and ground stack installation.
- MR-P 214: Extension feet for dolly transport.
- MR-TC 214: Top cover.
Manufacturer information
FBT Elettronica SpA
Practical help
Common problems
System performance issues or component damage
Always use FBT-validated DSP presets. Using unauthorized presets is strictly prohibited.
Improper rigging or safety concerns
Use the 'MYRA Rigging Safety Calculator' software and consult the 'MYRA SYSTEM RIGGING MANUAL' for detailed installation procedures.
Impedance mismatch when linking speakers
Ensure the amplifier can handle the resulting 2-ohm load when linking two cabinets.
Before use
- Verify all rigging hardware is tested and approved by FBT.
- Ensure the mounting surface is solid and stable.
- Check all load-bearing bolts and points for wear.
- Use 4-wire cables (2.5mm² for 15m).
- Verify amplifier compatibility with FBT-validated DSP presets.
Show more Show less
Specs in practice
- Frequency Response
- 40Hz - 20kHz range for full-range performance.
- Nominal Impedance
- 4 Ohm for LF, 16 Ohm for MF/HF sections.
Images and diagrams
- The rear panel features two Neutrik NLT4MP connectors wired in parallel for linking.
- The rigging system uses a 4-point design with quick-release pins and a graduated flange for angle selection.
Model compatibility
- Requires processed amplifiers with FBT-validated DSP presets.
- Compatible with EASE FOCUS 3 software for acoustic simulation.
- Requires specific FBT rigging accessories (MR-F 214, MR-FJ 214, etc.).
