Operating Manual for FBT MUSE 210LN/210LND Vertical Array Speaker
Comprehensive operating manual for the FBT MUSE 210LN and 210LND vertical array speakers. Includes installation, networking, DSP control, and technical specifications.
Quick answers from the manual
Quick answer
- The FBT MUSE 210LN/210LND is a 2-way active line array module. It supports analog and Dante digital audio networking, and can be controlled via the Infinito system management suite. p. 5, 29
Key actions
- Install the system using the flybar for vertical arrays or MS-J 210 for ground stacking. p. 20, 22, 24
- Connect speakers to the network using Ethernet cables in a star or daisy chain configuration. p. 12, 36
Problems and fixes
System overheating
Remove rain cover if environmental conditions allow, or check for blocked ventilation.
p. 25, 49Show 3 more answers Show less
Maintenance and reset
- Use the FACTORY RESET function in the menu to reset all parameters to default. p. 17, 41
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Frequency Response | 55Hz - 20kHz | Operating frequency range | p. 26, 50 |
| Amplifier Power | 800W LF / 400W HF | Internal amplifier power | p. 26, 50 |
Where to find it in the PDF
- Installation p. 19, 20, 21, 22
- Networking p. 10, 11, 12
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The FBT MUSE 210LN and 210LND are professional 2-way active line array modules designed for high-performance sound reinforcement. This manual covers installation, networking, and system configuration. Always ensure that suspension hardware is inspected and load limits are respected before installation.
Product Description
The MUSE 210LN/210LND features two 250mm (10") woofers and two 25mm (1") B&C drivers. The system includes an 800W (LF) + 400W (HF) Class D amplifier module with TCP/IP network interface, compatible with the Infinito system management suite and Dante digital audio networking.
Installation
The system can be installed in a vertical array or ground-stacked configuration.

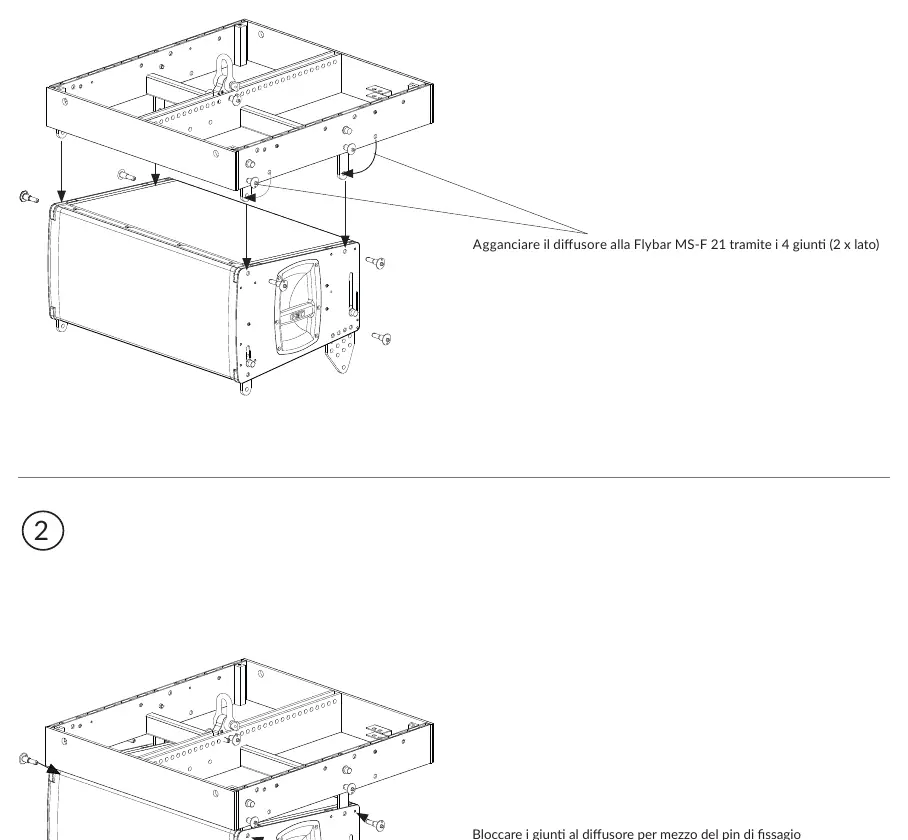

- Vertical Array: Use the MS-F 210 flybar. Secure the speaker to the flybar using the four couplings (2 per side) and lock with fixing pins. Adjust the angle using the connecting flange and graduate scale.

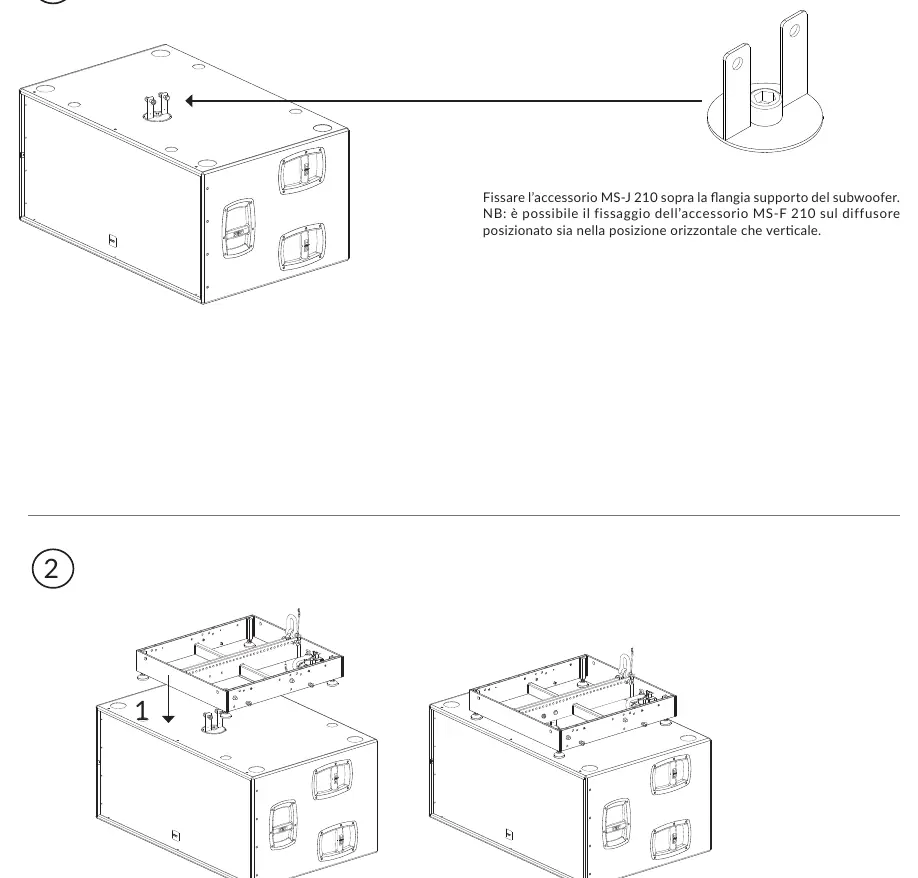

- Ground Stacking: Use the MS-J 210 accessory on the subwoofer. Fix the MS-F 210 flybar onto the MS-J 210, then attach the satellite speaker.

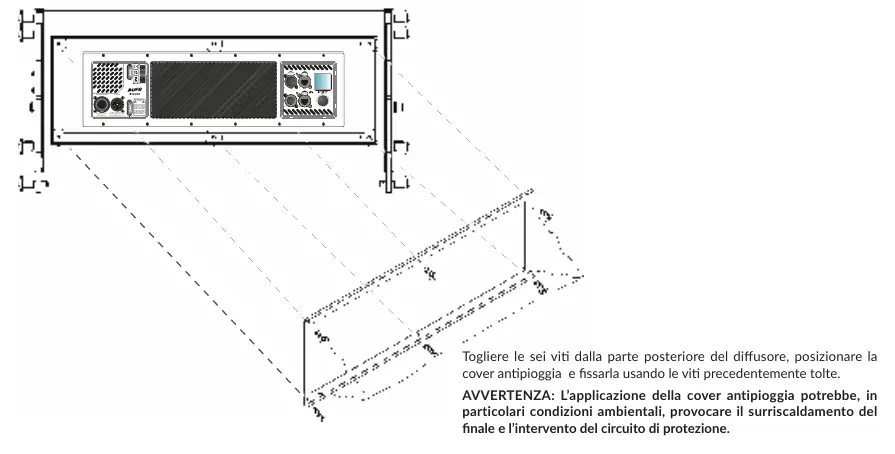

- Rain Cover: If using outdoors, install the rain cover by removing the six screws on the back of the speaker, positioning the cover, and re-securing with the same screws. Note: The rain cover may cause overheating in certain conditions.
Networking
The speakers feature dual Ethernet ports for connection to the Infinito management software.
- Star Connection: Connect each speaker directly to the network switch.

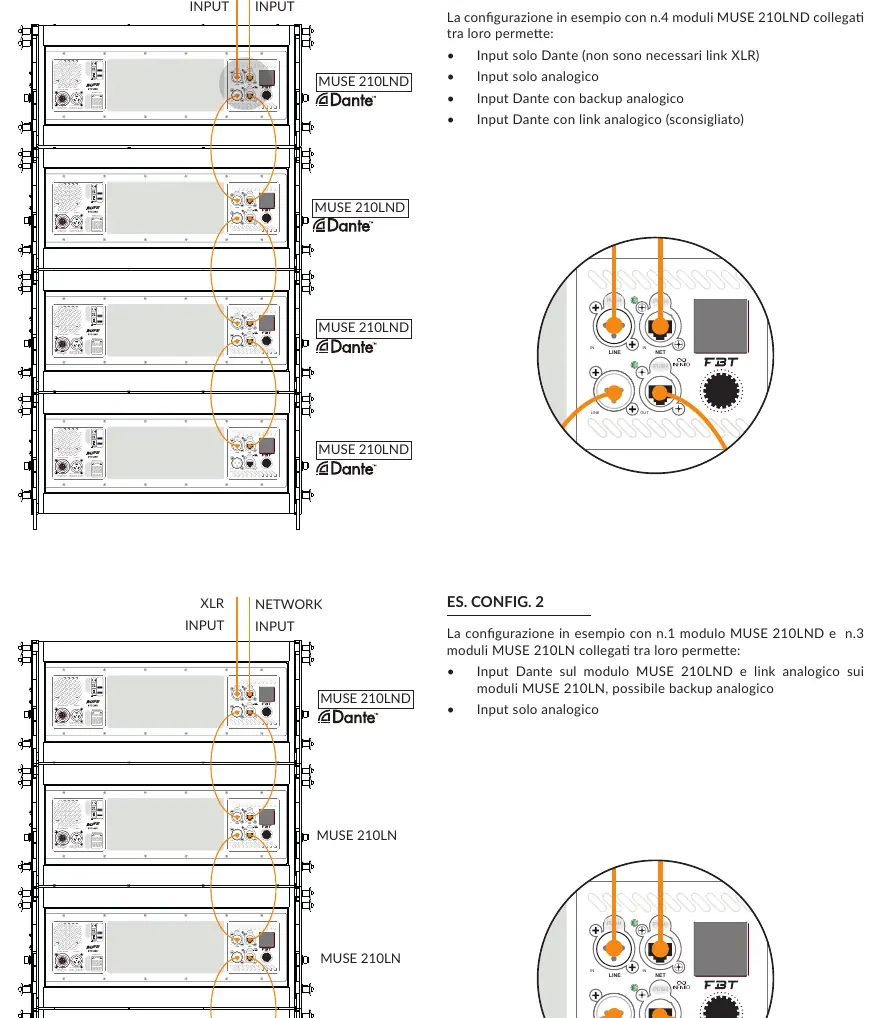

- Daisy Chain: Connect speakers in series using NET IN and NET OUT ports. It is recommended not to exceed 8 modules in a daisy chain. If hardware bypass is required, limit to 4 modules.
Controls and Functions
The system can be controlled locally via the rear display and encoder or remotely via the Infinito software. The display allows access to settings such as PRESET, HF LEVEL, HPF, DELAY, and IN/OUT ROUTING. The system includes 6 memory locations (Infinito, Snap 1-4, Default) for saving and recalling configurations.
Technical Specifications
- Frequency Response: 55Hz - 20kHz
- Amplifier Power: 800W LF / 400W HF
- Max SPL: 129dB (cont) / 136dB (peak)

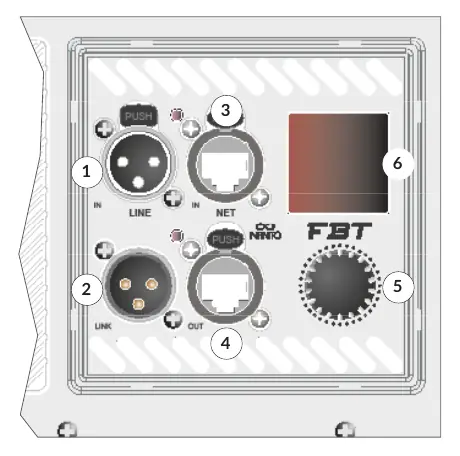

- Connections: PowerCon IN/OUT, XLR IN/OUT, NET IN/OUT (EtherCon)
Manufacturer information
FBT Elettronica SpA
Practical help
Common problems
No sound output
Check signal source (Analog/Dante), verify volume level, and ensure DSP settings are correct.
Network not detected
Check Ethernet cables (Cat5e or higher), ensure daisy chain limits (max 8) are not exceeded.
System overheating
Ensure ventilation is not blocked. If a rain cover is installed, monitor temperature as it may trigger protection circuits.
Before use
- Inspect all suspension hardware for damage
- Verify that the support structure can bear the total load
- Check power supply voltage and cable integrity
- Ensure all locking devices are perfectly fitted
- Verify Dante/Analog signal routing settings
Show more Show less
Specs in practice
- LF/HF Amplifier
- 800W for Low Frequencies and 400W for High Frequencies.
- Frequency Response
- The range of frequencies the speaker can reproduce (55Hz - 20kHz).
Images and diagrams
- Wiring diagrams for daisy chain configurations
- Installation steps for vertical array and ground stacking
- Control panel layout and port identification
Model compatibility
- Compatible with Infinito system management suite
- Supports Dante Digital Audio Networking (LND model only)
- Requires Cat5e SF/UTP or higher Ethernet cables
