Operating Manual for FBT VERTUS CLA 203T / 204T Loudspeakers
Comprehensive operating manual for FBT VERTUS CLA 203T and 204T loudspeakers. Includes installation instructions, wiring diagrams, technical specifications, and safety guidelines.
Quick answers from the manual
Quick answer
- The FBT VERTUS CLA 203T and 204T are point source loudspeakers. The 203T is IP55 rated for outdoor use, while the 204T is IP21C rated for indoor use. Both require an external DSP processor and support 70/100V or 8 Ohm connections. p. 5, 21
Key actions
- Install the WM-23 bracket p. 11, 27
- Connect audio lines p. 8, 24
First start
- Ensure the amplifier is off. Connect the speaker to the amplifier using the ceramic terminal block. Select the appropriate power setting (70/100V) or 8 Ohm mode. Ensure an external DSP processor with FBT presets is used. p. 8, 24
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| 203T LF Driver | 2 x 3 inch | Low frequency woofer | p. 14, 30 |
| 204T LF Driver | 2 x 4 inch | Low frequency woofer | p. 14, 30 |
Where to find it in the PDF
- Safety Precautions p. 4, 20
- Installation p. 10, 11, 26, 27
- Technical Specifications p. 14, 15, 30, 31
Table of contents
Manual images
Click an image to enlargeImportant Information from the Manual
The FBT VERTUS CLA 203T and 204T are point source loudspeakers designed for professional audio applications. The VERTUS CLA 203T is IP55 certified, making it suitable for outdoor installations, while the VERTUS CLA 204T is IP21C certified and intended for indoor use only. Both models require an external DSP processor with official FBT presets to ensure sound balance and transducer reliability.
Safety Precautions
- Never install or connect the loudspeakers when the line is live, as voltages can reach 100V.
- Ensure the mounting surface can support the combined weight of the speaker and bracket.
- Use only original FBT suspension accessories.
- Do not route loudspeaker lines alongside mains or low-level signal cables to avoid inductive interference.
- Always use a secondary safety system for suspended installations.
Installation
The loudspeakers can be mounted using the optional WM-23 directional wall mount.
WM-23 Installation
- Use the provided cardboard template to mark the four fixing points on the wall.
- Fix the wall part of the bracket using M5 screws.
- Attach the speaker part of the bracket to the loudspeaker.
- Hook the speaker system onto the wall bracket and tighten the joint screw.
- Use the M4 x 10 screws provided to attach the safety cable.
Angle Adjustment: Loosen the rotation lock screw (A) to set the desired angle (0° to 45°), then retighten. Loosen the joint screw (B) to adjust the horizontal angle, then retighten.
Connections
Audio connections are made via the ceramic terminal block located inside the protective enclosure (A). The terminals marked '+' and '-' allow for parallel connection of multiple speakers.
- Constant Voltage (70/100V): Select the desired power setting on the selector.
- Low Impedance: Select the 8 Ohm setting.
- Warning: Do not set the selector to 8 Ohm when connected to a 70/100V line.
Sound System Design
For wall mounting, install speakers at a height of 2 to 2.5 meters. The maximum distance between adjacent speakers should not exceed 5–6 meters in rooms up to 4–5 meters wide. For wider areas (8–10 meters), alternating installation on both walls is recommended.
Technical Specifications
Both models feature an extruded aluminum enclosure, a ceramic terminal block with a thermal fuse, and an internal crossover.
- VERTUS CLA 203T: 2 x 3" LF woofers, 1" HF driver, 60W RMS recommended amplifier power.
- VERTUS CLA 204T: 2 x 4" LF woofers, 1" HF driver, 80W RMS recommended amplifier power.
Manufacturer information
FBT Elettronica SpA
Practical help
Common problems
Hum or noise in the system
Ensure loudspeaker lines are not routed together with mains cables or low-level signal cables.
System instability or risk of falling
Use only original FBT mounting brackets and ensure the support surface is capable of bearing the load.
Incorrect impedance/voltage matching
Verify that the amplifier output matches the speaker's selected power setting (70/100V) or impedance (8 Ohm).
Before use
- Verify the mounting surface can support the speaker weight.
- Ensure an external DSP processor with official FBT presets is available.
- Check the IP rating suitability (203T for outdoor, 204T for indoor).
- Ensure the amplifier output is compatible with the speaker's settings.
- Check that all screws and bolts are tightened securely.
Images and diagrams
- Wiring diagram shows parallel connection of multiple speakers using the ceramic terminal block.

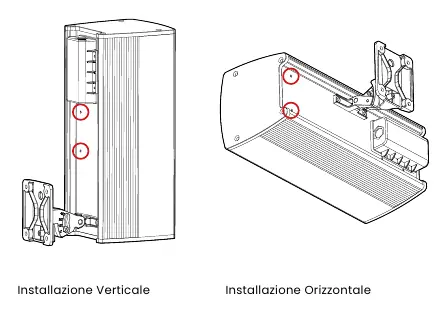

- WM-23 installation diagram illustrates vertical and horizontal mounting options.
- Sound system design diagram shows recommended spacing and height for uniform coverage.
