Fiamma Carry-Bike 02096-35A Bicycle Carrier User Guide
Quick guide for the Fiamma Carry-Bike 02096-35A bicycle carrier, covering installation steps, safety warnings, weight distribution, and usage guidelines for Fiat Ducato, Mercedes Sprinter, and VW Crafter.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation and usage instructions for the Fiamma Carry-Bike 02096-35A/02096-35 frame, designed for Fiat Ducato, Mercedes Sprinter, and VW Crafter vehicles. Always ensure the vehicle wall or door is solid enough to support the carrier. Installation by qualified personnel is recommended to ensure compliance with local regulations.
Installation
The installation process involves assembling the frame components (A, B, C) and securing them to the vehicle using the provided hardware (P, I, H, V, Q, R, T, U). Specific mounting kits are required for different vehicle models (Ducato, Sprinter, Crafter). Ensure all parts are free from damage before starting. When tightening the fork to the tube, leave a 2mm space as specified in the safety warnings.
Usage and Safety
- Weight Distribution: Load the heaviest bicycles closest to the vehicle wall to ensure stability.
- Weight Limits: Do not exceed the maximum permitted vehicle weight or axle load. The maximum load capacity is 50kg.
- Driving: Always signal the presence of the carrier if it extends beyond the vehicle profile. Use additional rear-view mirrors if rear visibility is limited.
- Compatibility: Bike covers are not allowed for this model.
- Tailgate: The permitted opening angle of the tailgate after installation is 90 degrees.
- Maintenance: Periodically check all fasteners, especially after the first few kilometers and before/after long trips. Replace worn belts or rubber components immediately.
Troubleshooting
If you encounter issues, contact your local dealer and provide the alphanumeric code found on the product nameplate. Visit the official website at fiamma.com for spare parts drawings and further technical support.
Official resources from the manual
Manufacturer information
Fiamma SpA
Practical help
Common problems
Rear windscreen wiper interference
Check the brush radius before operating the wiper, as the presence of bicycles may obstruct its movement.
Loose fasteners or belts
Periodically check all attachment points, especially after the first few kilometers of use and before/after long trips.
Damage to vehicle wall
Rotate bicycle handlebars to ensure sufficient distance from the vehicle wall.
Before use
- Verify vehicle compatibility before installation.
- Ensure the wall/door is sufficiently solid for anchoring.
- Check that no parts were damaged during transport.
- Verify that the heaviest bike is placed closest to the vehicle.
- Ensure the tow hook remains accessible if using a trailer.
Specs in practice
- Max Load Capacity
- 50kg total weight limit for the carrier.
- Tailgate Opening
- Permitted opening angle is 90 degrees after installation.
- Fork Tightening
- Leave a 2mm space between the fork and the tube.
Images and diagrams

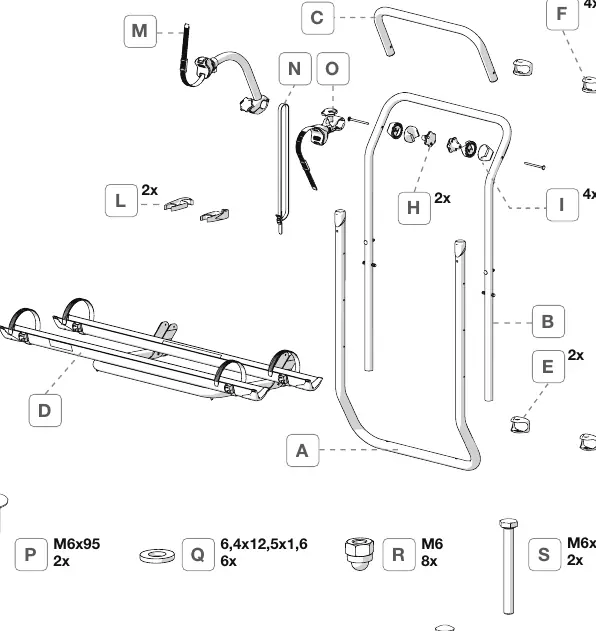

- Page 2: Exploded view of all components (A-V) and required tools.

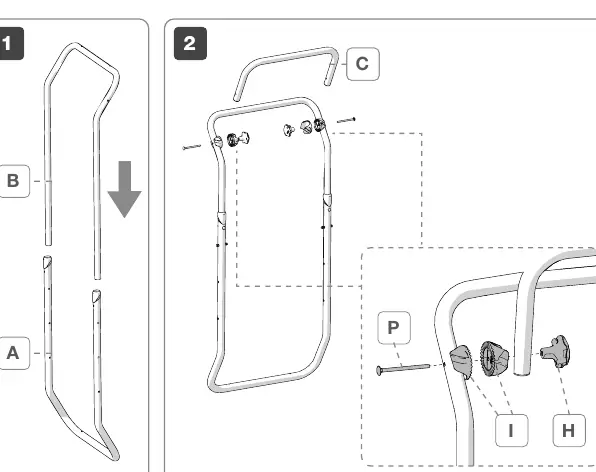

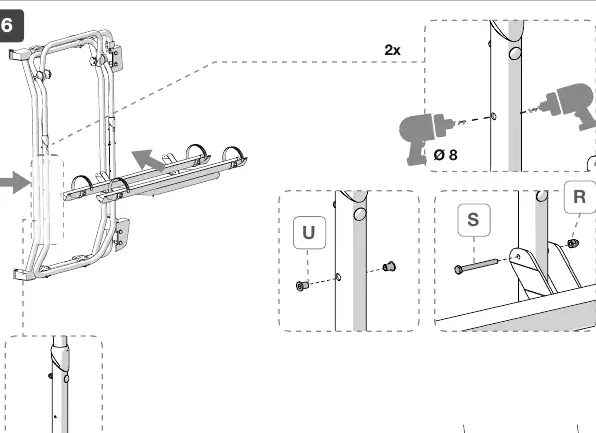

- Page 4-7: Step-by-step assembly sequence for the frame and mounting to the vehicle.

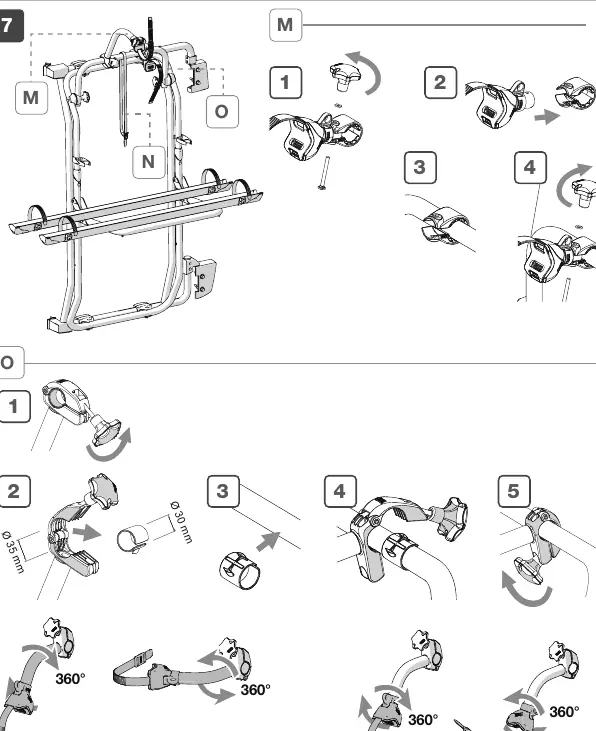

- Page 8: Instructions for securing bikes using the Bike-Block (M, O) and rail straps.

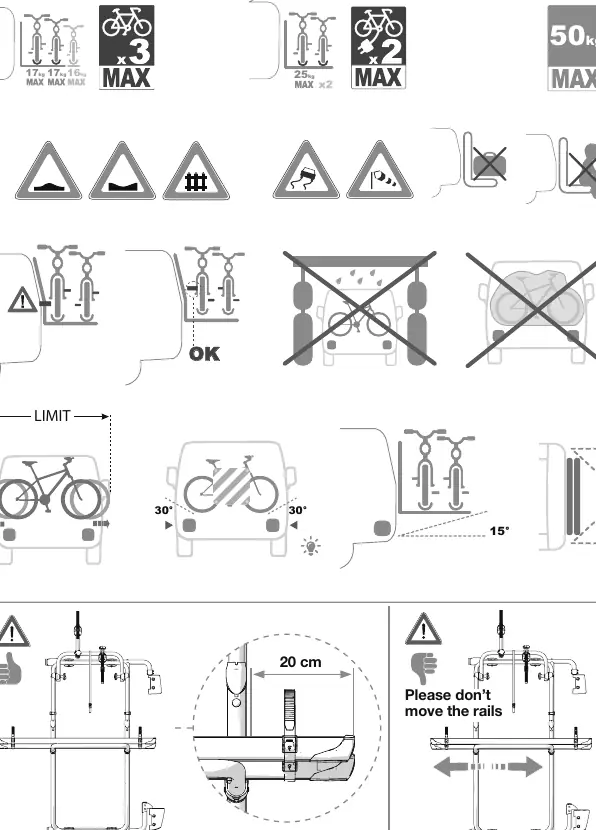

- Page 11: Visual summary of load limits, weight distribution, and prohibited actions (e.g., do not move rails).
Model compatibility
- Compatible with Fiat Ducato, Mercedes Sprinter, and VW Crafter.
- Bike covers are not allowed for this model.
- Requires licence plate carrier bar with lights if using intermediate or lowered rail positions.
