Fiamma Carry-Bike Caravan Active E-Bike Installation and Usage Instructions
Quick guide for the Fiamma Carry-Bike Caravan Active E-Bike, covering installation steps, safety precautions, usage guidelines, and maintenance tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the installation and safe operation of the Fiamma Carry-Bike Caravan Active E-Bike. It is intended for use by qualified personnel to ensure compliance with local regulations. Always check for damage before installation and ensure the carrier is securely attached before and after long trips.
Installation and Assembly
The installation process involves mounting the main frame to the caravan and securing the bike rails. Ensure all components are present as listed in the package contents. Use the provided hardware (screws, nuts, and washers) to assemble the structure. Follow the numbered steps in the manual carefully, ensuring all fasteners are tightened correctly using the appropriate tools (screwdriver, wrench, and hacksaw for specific adjustments).
Usage and Safety
- Maximum Load: The carrier supports a maximum of 2 bikes with a total weight capacity of 60 kg.
- Speed Limit: Do not exceed 80 km/h while the carrier is in use.
- Safety Checks: Periodically check the attachment points, especially after the first few kilometers of a journey.
- Driving Precautions: Be aware of the carrier's presence, especially when reversing, as it may affect vehicle maneuverability and parking sensors.
- Towing: If using a tow hook, ensure it remains accessible and that the carrier does not interfere with the tow hook's movement.
- Battery Safety: It is highly recommended to remove batteries from e-bikes before loading them onto the carrier.
Maintenance
Regularly inspect the rubber components and straps for signs of wear or porosity. Replace any damaged parts immediately to ensure the security of the bikes during transport. Do not modify or alter the product in any way, as this voids liability and safety guarantees.
Troubleshooting and Support
If you encounter issues, contact your local dealer. Provide the data found on the product's nameplate to facilitate support. You can also visit the official website at fiamma.com for spare parts drawings and further technical information.
Official resources from the manual
Manufacturer information
Fiamma SpA
Practical help
Common problems
Carrier components damaged or deformed upon arrival.
Contact your local dealer immediately before attempting installation.
Carrier interferes with vehicle parking sensors or reversing.
Exercise extreme caution when reversing and be aware of the increased vehicle length and maneuverability changes.
Rubber parts or straps showing signs of wear.
Replace these components immediately to maintain secure bike attachment.
Before use
- Verify all parts are present and undamaged.
- Ensure installation is performed by qualified personnel.
- Remove batteries from e-bikes before loading.
- Check that all fasteners are tightened securely.
- Verify the carrier is firmly attached before starting a trip.
- Check the carrier again after the first few kilometers of driving.
Specs in practice
- Max Load (60 kg)
- The total weight of all bikes loaded on the carrier must not exceed 60 kg.
- Max Speed (80 km/h)
- Do not exceed this speed limit while the carrier is mounted to the vehicle.
Images and diagrams
- Page 2 shows the exploded view of the carrier and the required hardware (K, Q, X, Y, Z, W).

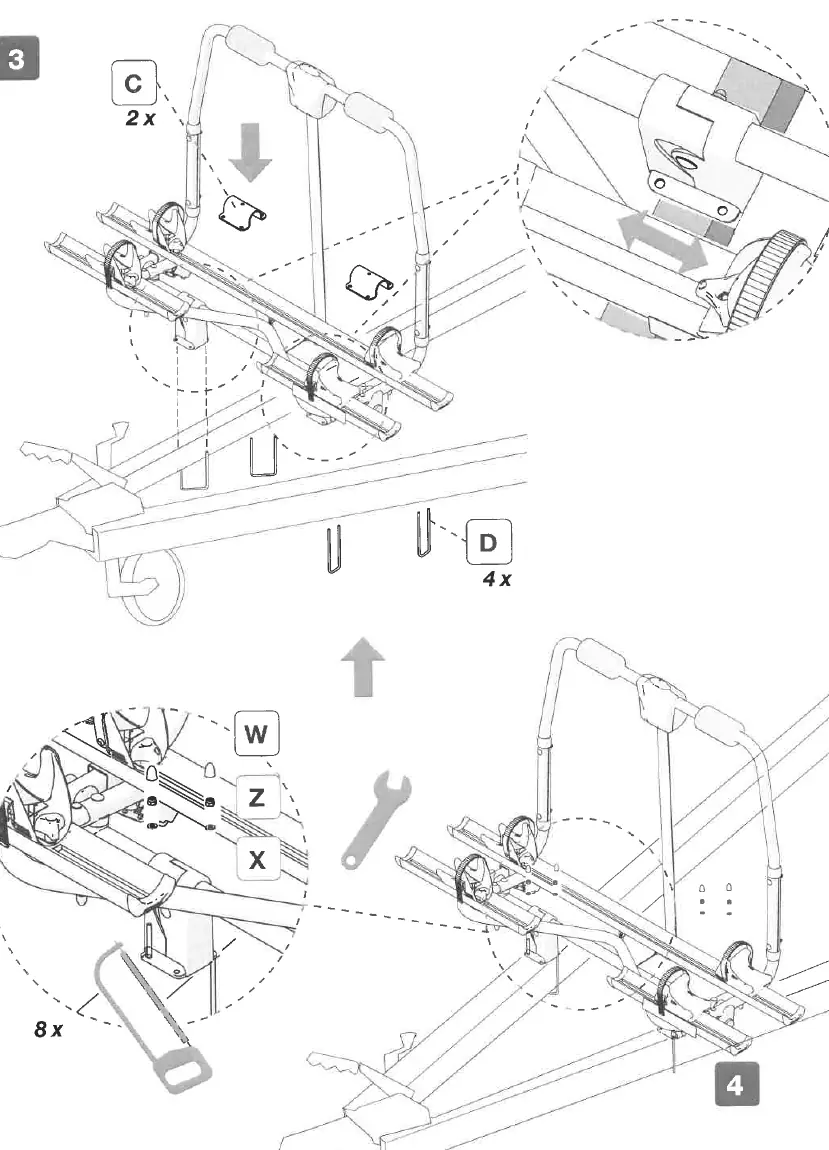

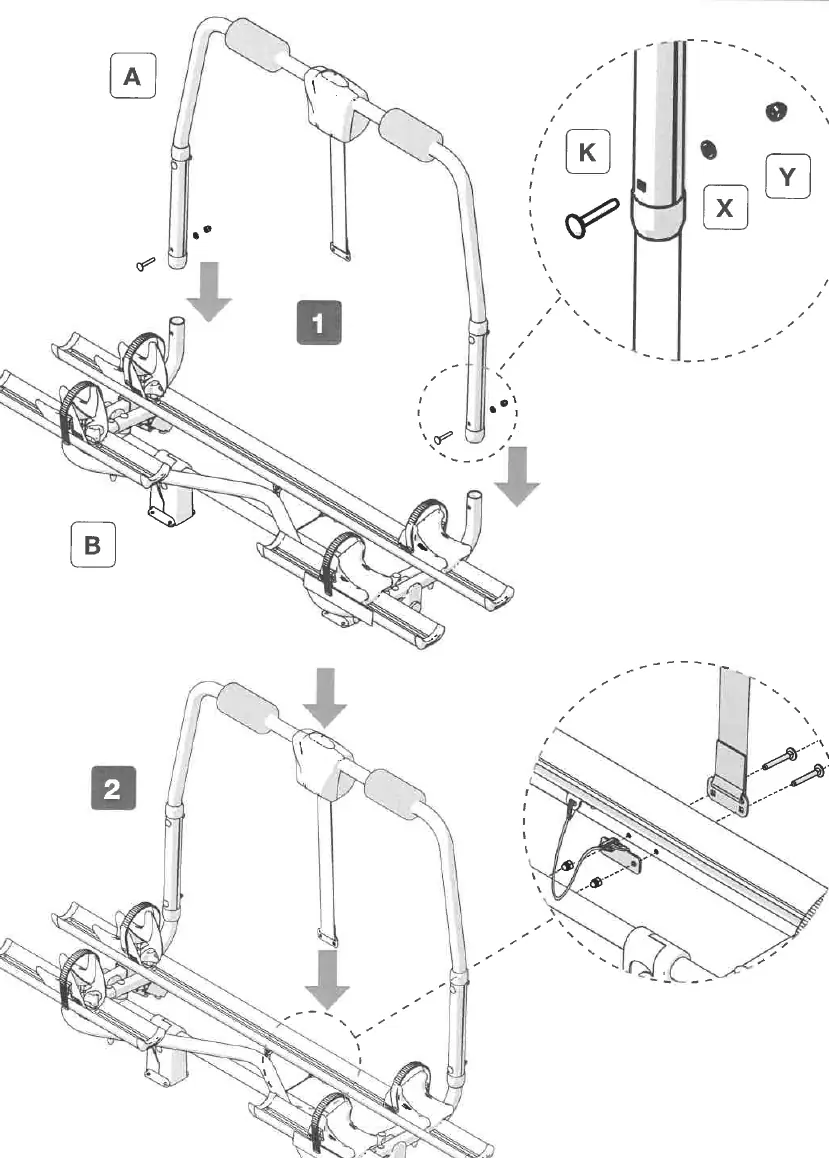

- Pages 5-7 detail the step-by-step assembly sequence of the frame and rails.
- Page 8 illustrates the tilting mechanism for accessing the vehicle rear.
- Page 10 demonstrates how to secure the bikes using the provided straps and frame adapters.
Model compatibility
- Designed specifically for caravan installation.
- Compatible with e-bikes (batteries should be removed).
- Must be installed in compliance with local regulations.
