User Manual for FLEX LB 125 18.0-EC Cordless Angle Grinder
Quick guide for the FLEX LB 125 18.0-EC cordless angle grinder. Includes technical specifications, key features, included accessories, and safety highlights.
Table of contents
Quick Guide
The FLEX LB 125 18.0-EC is a high-performance cordless angle grinder designed for professional use. This device features a brushless motor for increased efficiency and durability. Please note that the battery and charger are not included with the tool; it is compatible with all FLEX 18V battery systems.
Key Features
- Brushless Motor: Provides better performance and longer service life.
- Electronic Management System (EMS): Protects the machine, extends its service life, and increases efficiency.
- Electronic Brake: Stops the tool in approximately 3 seconds.
- Anti-Kickback: Automatically shuts off the motor if the disc becomes blocked.
- Soft Start: Ensures smooth acceleration during startup.
- Restart Protection: Prevents the tool from starting automatically after a power interruption.
- Tool-Free Adjustment: The protective guard can be adjusted without the need for additional tools.
- Ergonomic Design: Features a slim grip area with SoftGrip inserts and an angled auxiliary handle for comfortable handling.
- Dust Protection: Includes a removable metal dust guard for improved protection.
Technical Specifications
- Voltage: 18 V
- Battery Capacity: Compatible with 2.5 Ah, 5.0 Ah, and 8.0 Ah
- Max. Disc Diameter: 125 mm
- No-load Speed: 9000 rpm
- Spindle Thread: M14
- Dimensions (LxWxH): 330 x 75 x 120 mm
- Weight (without battery): 1.85 kg
Included Accessories
The following items are included in the delivery:
- 1 Grinding guard (436860)
- 1 Auxiliary handle (450774)
- 1 Clamping flange (335282)
- 1 L-BOXX transport case (414085)
- 1 Case insert (444405)
- 1 Clip-on cutting guard (534108)
- 1 Clamping nut M14 (534344)
- 1 Service wrench (483621)
Safety and Protection Systems
The tool is equipped with advanced electronic systems to ensure user safety and tool longevity:
- Overload Protection: Prevents damage during heavy-duty tasks.
- Temperature Control: Monitors the motor temperature to prevent overheating.
- Spindle Lock: Allows for quick and easy accessory changes.
Manufacturer information
FLEX
Practical help
Common problems
Tool stops unexpectedly during operation
The overload protection or anti-kickback system may have triggered due to excessive pressure or a blocked disc. Release the switch and restart the tool.
Tool does not start
Ensure the battery is fully charged and correctly inserted. Check if the restart protection is active following a battery change or power interruption.
Before use
- Ensure the battery is fully charged (battery not included).
- Check that the grinding disc is correctly mounted and the clamping nut is tightened.
- Verify the protective guard is securely attached and adjusted for the task.
- Ensure the auxiliary handle is firmly attached to the tool.
- Check the removable metal dust guard for debris.
Images and diagrams

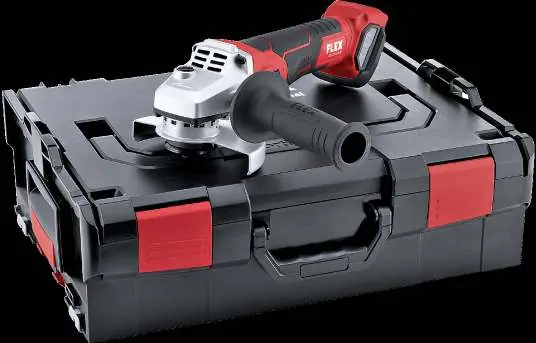

- The product image displays the angle grinder with the auxiliary handle and protective guard installed, ready for operation.
Model compatibility
- Compatible with all FLEX 18V battery systems.
- Battery and charger are not included in the delivery.
