FLEX IW 1/2" 750 18.0-EC/5.0 Impact Wrench User Guide
Quick guide for the FLEX IW 1/2" 750 18.0-EC/5.0 impact wrench. Includes technical specifications, key features, operating modes, and included accessories.
Table of contents
Quick guide from the manual
This document provides an overview of the FLEX IW 1/2" 750 18.0-EC/5.0 impact wrench. It details the technical specifications, key features, and included accessories for the set.
Product Overview
The FLEX IW 1/2" 750 18.0-EC/5.0 is a high-performance cordless impact wrench featuring a brushless motor for increased efficiency and longevity. It is equipped with an Electronic Management System (EMS) to protect the machine and optimize performance.
- Tool Mount: 1/2" external square.
- Speed Command: Three speed/torque ranges for controlled fastening and loosening.
- Auto-Stop Mode: Automatically stops the machine when the impact starts (during fastening) or when the impact ends (during loosening) to prevent over-tightening.
- Ergonomics: Features an ergonomic, non-slip rubberized grip and an anti-vibration element separating the handle from the motor.
- Visibility: Integrated LED light with timer and LED battery capacity indicator.
Technical Specifications
- Battery Voltage: 18 V
- Torque Settings: 3 levels (150 Nm, 200 Nm, 750 Nm)
- Max Breakaway Torque: 950 Nm
- No-load Speed: 0-500 / 0-1000 / 0-2100 rpm
- Impact Rate: 0-1000 / 0-2000 / 0-2450 1/min
- Weight (without battery): 1.9 kg

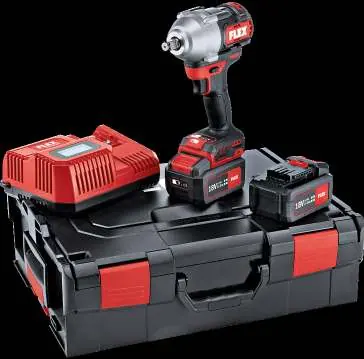

Included Accessories
- 1x Belt clip
- 1x L-BOXX transport case
- 1x Case inlay
- 2x 18V Li-ion batteries
- 1x 12/18V Fast charger
Manufacturer information
FLEX
Practical help
Common problems
Over-tightening fasteners
Use the Auto-Stop mode, which stops the machine when the impact starts during fastening.
Difficulty loosening rusted bolts
Use the high-performance impact mechanism and the maximum torque setting (750 Nm / 950 Nm breakaway).
Before use
- Ensure the battery is charged using the included fast charger.
- Verify the correct socket is attached to the 1/2" tool mount.
- Select the appropriate speed/torque setting using the Speed Command function.
- Check the battery level on the LED indicator.
Specs in practice
- Max Breakaway Torque (950 Nm)
- The maximum force the tool can apply to loosen stuck or rusted bolts.
- Auto-Stop Mode
- A safety feature that prevents over-tightening by stopping the tool when impact begins.
- Speed Command
- Allows selection between three different speed and torque ranges for specific tasks.
Model compatibility
- Compatible with all FLEX 18V battery packs.
