FLOS The Fast Track Spot 150 Casambi Instruction Manual

Product Overview

The FLOS Fast Track Spot 150 Casambi is a high-quality lighting solution designed for professional track systems. This luminaire is engineered for indoor use and must be installed by a qualified electrician in accordance with the National Electrical Code and local regulations. The system is designed to be used exclusively with the Fast Track Casambi track system.

Safety Instructions

Safety is paramount when installing and operating lighting equipment. Always ensure the power is disconnected before beginning any installation or maintenance work. This luminaire is classified as a Class III device, meaning it operates on low voltage and must be connected to a safety transformer compliant with EN 61347-2-13 or equivalent standards. Do not attempt to modify the product, as this will void the warranty and may create hazardous conditions. The luminaire should not be installed on surfaces that are not normally flammable. Keep the device away from curtains or similar combustible materials and ensure it is not installed in damp or wet locations.

Installation

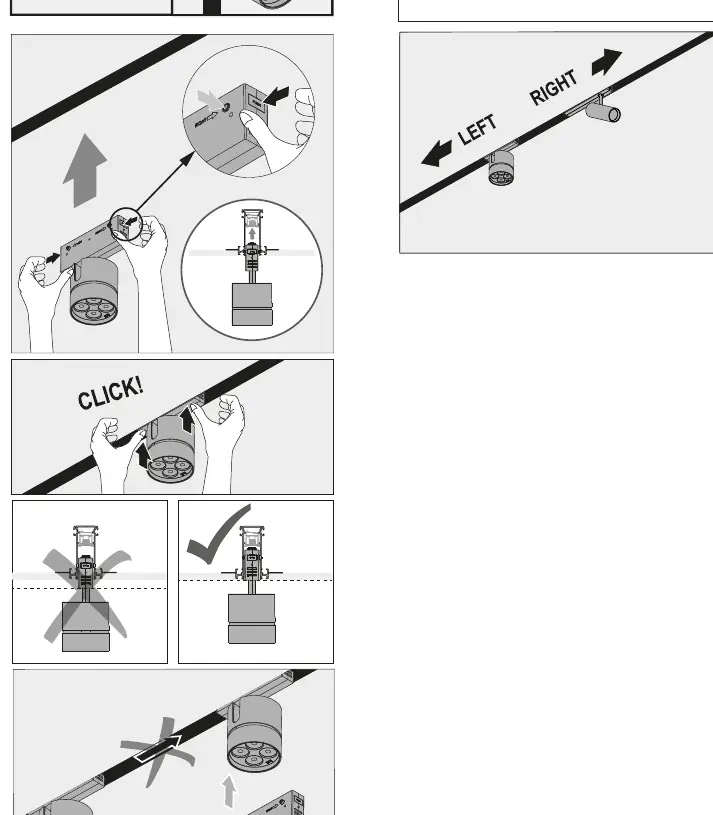

The installation process requires precision to ensure the luminaire functions correctly. The Fast Track Spot 150 is designed for ceiling installation only. When mounting the spot to the track, ensure it is properly aligned. The system features a specific orientation mechanism; do not attempt to move the spot manually once installed, as this can damage the internal components. Listen for a click to confirm the spot is securely locked into the track. Ensure the total power consumption of the connected spots does not exceed the driver's capacity, applying a 15% safety coefficient to the total load.

Maintenance and Care

To maintain the performance and longevity of your lighting system, regular cleaning is recommended. Use a soft, dry cloth to wipe the exterior of the luminaire. Avoid using alcohol, chemical solvents, or abrasive cleaning agents, as these can damage the finish and the optical components. If the light source reaches the end of its service life, it must be replaced by a qualified technician or the manufacturer. Do not touch the LED or the lens directly during cleaning or maintenance.

Disposal

This product should not be disposed of as regular household waste. Please follow local regulations regarding the disposal of electronic equipment to ensure it is recycled or processed in an environmentally responsible manner.
