Fortis 10KG Flywheel Spin Bike User Guide
Comprehensive user guide for the Fortis 10KG Flywheel Spin Bike, covering assembly, safety instructions, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Fortis 10KG Flywheel Spin Bike is a high-quality fitness machine designed for home use. It features a sturdy frame, adjustable seat and handlebars, and a 10kg flywheel to provide a smooth and effective workout experience. This bike is suitable for users looking to improve their cardiovascular fitness, tone muscles, and manage weight.
Safety and Warnings
Your safety is paramount. Before starting any exercise program, consult with a physician, especially if you have pre-existing health conditions or are taking medication. Always inspect the bike before use, ensuring all bolts and nuts are tightened and that chain guards are securely in place. Keep children and pets away from the equipment. The bike is designed for adult use only, with a maximum user weight capacity of 120kg. If you experience pain, dizziness, shortness of breath, or irregular heartbeat, stop exercising immediately.
Assembly
The assembly process involves attaching the front and rear stabilizers to the main body using the provided bolts, washers, and nuts. Pedals must be attached to their respective cranks. The seat and handlebar posts are inserted into the main frame and secured with locking knobs. Finally, the display screen and phone holder are mounted to the handlebars, ensuring all sensor wires are connected properly without being pinched.
Operation
The bike features a digital display that tracks time, speed, distance, and calories. The scan function cycles through these metrics automatically. Resistance is adjusted via the tension knob located under the handlebars; turning it clockwise increases resistance, while anti-clockwise decreases it. Pressing the knob down acts as an emergency brake. The display requires 2 AA batteries.
Maintenance and Care
Regular maintenance ensures the longevity of your spin bike. Always check that all fasteners are tight before each session. If the chain becomes loose over time, it can be adjusted by loosening the nuts on the main axle. When the bike is no longer in use, remove the batteries from the monitor and dispose of them according to local hazardous waste regulations.
Manufacturer information
Fortis
Practical help
Common problems
Display not working correctly
Check that the lower sensor wire is connected to the upper sensor wire and that the upper wire is plugged into the display. Ensure batteries are installed correctly.
No resistance
Ensure the upper tension cable is connected to the lower cable, turn the knob to the lowest level, and adjust the tension strap on the flywheel.
Before use
- Check that all bolts and nuts are fully tightened.
- Ensure chain guards are fitted correctly.
- Place the bike on a solid, level surface.
- Ensure at least 0.5 meters of free space around the bike.
- Verify that the seat and handlebars are securely locked in position.
- Check that the pedals are attached to the correct cranks.
- Ensure the display screen is receiving power.
Specs in practice
- Flywheel Weight
- 10KG, provides momentum and resistance for a realistic cycling feel.
- Max User Weight
- 120kg, the maximum weight the frame is designed to support safely.
Images and diagrams

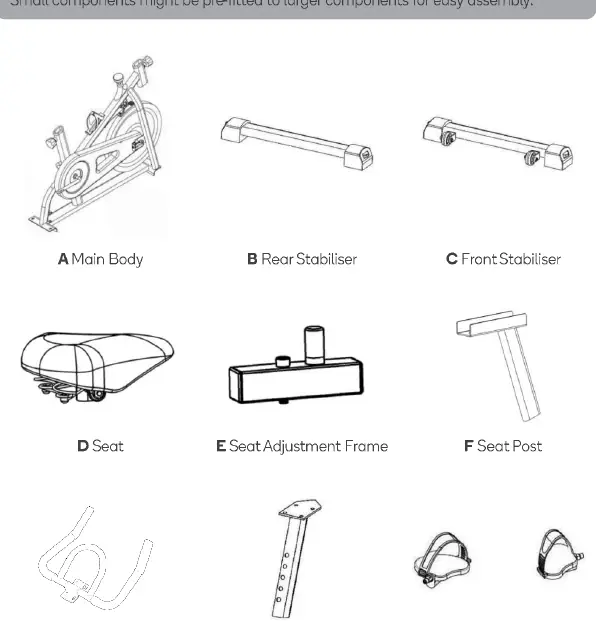

- The assembly diagrams illustrate the step-by-step connection of the stabilizers, seat post, handlebars, and display unit to the main frame.
- The heart rate graph shows the target training zone based on age to help users optimize their workout intensity.
Model compatibility
- Designed for adult use only.
- Not suitable for therapeutic use.
